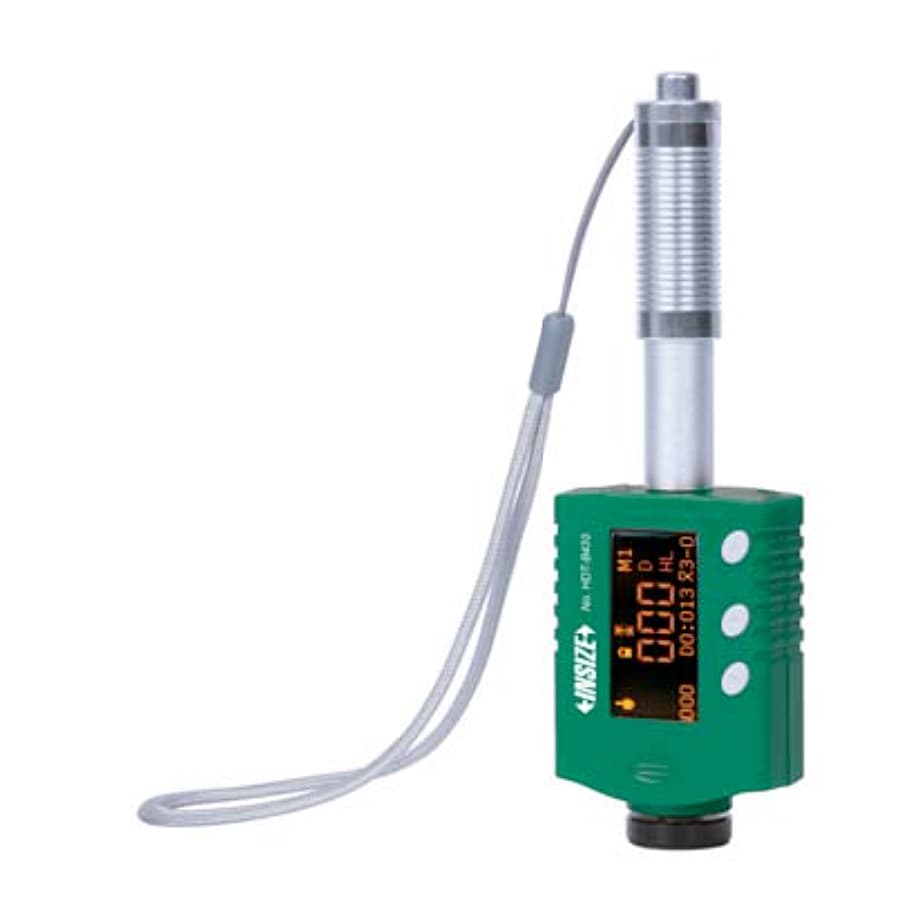

Insize Pen-Type Leeb Hardness Tester (Standard Type), HDT-B430

• Measuring Range: HLD170-960 / HRC17-70 / HRB13-109 / HB20-655 /HV80-940 / HSD32-99.5 / HRA30-88 / ob(rm)255-2180N/mm²
• Impact device D is included
• High contrast OLED display
• Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB)Shore (HS) and tensile strength (ob)

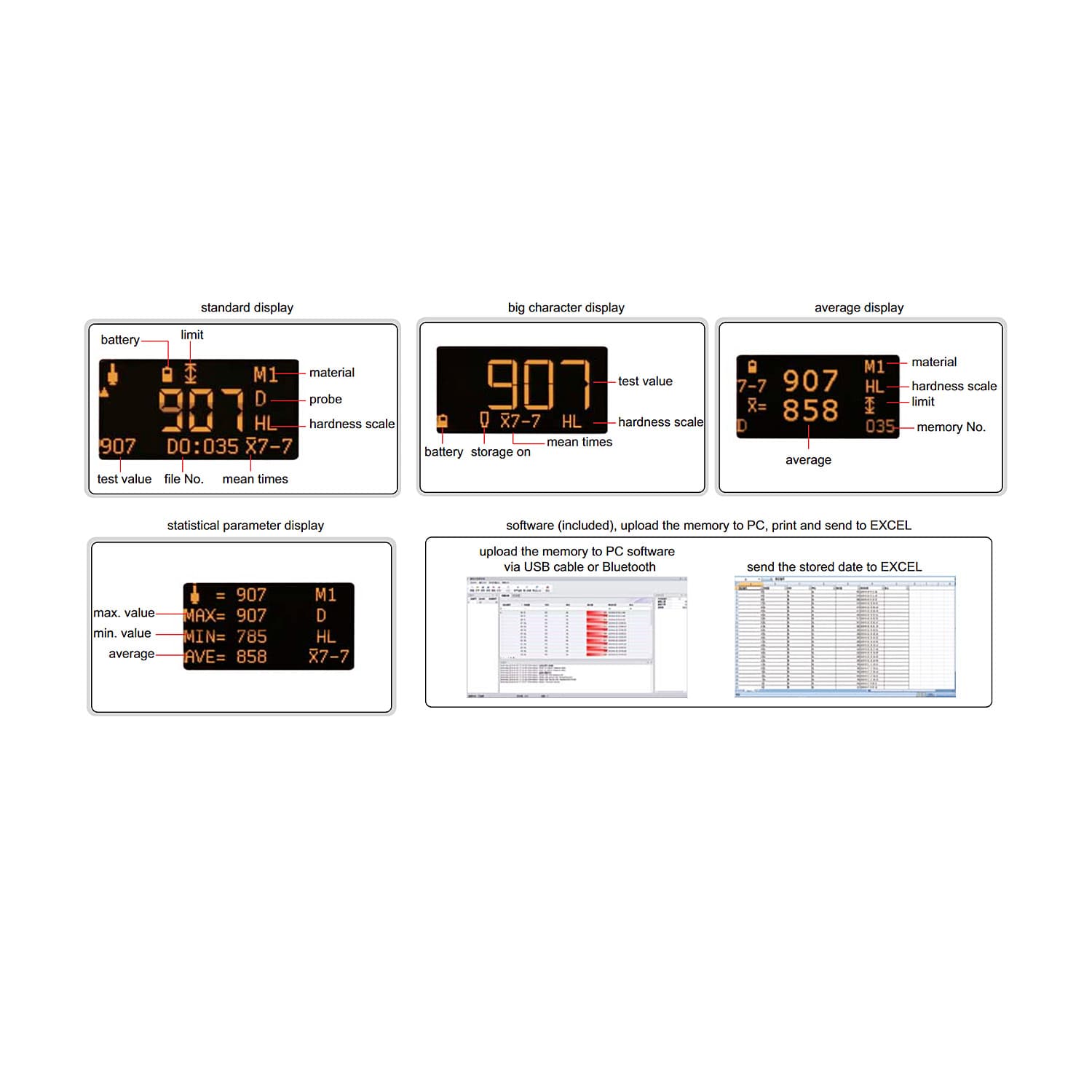

• Dual value display, shows both Leeb and other conversion values
• No need to set the testing direction
• 31 files can be saved, each containing 100 measurement data
• Automatically calculate maximum, minimum, average value
• Connected to PC software via USB or Bluetooth
• Connected with printer via Bluetooth
• According to ASTM A956, DIN 50156 GB/T, 17394

Applicable Workpiece:

Minimum Weight	5Kg (Direct Measurement)
2kg (On Solid Support)
0.05Kg (Coupled on Plate)
Minimum Thickness	5 mm
Minimum Radius of Curved Surface	30 mm
Maximum Roughness (Ra)	2um

Standard Delivery:

Main unit	1 pc
Hardness test block D	1 pc
Small support ring	1 pc
Cleaning brush	1 pc
AC/DC adapter	1 pc
Software dise and USB cable	1 pc
