₹10,200 (Incl. of all taxes)
₹8,644 + ₹1,556 GST (18%)
MRP was MRP ₹12,750
Save 20%
3 Business Days
90318000

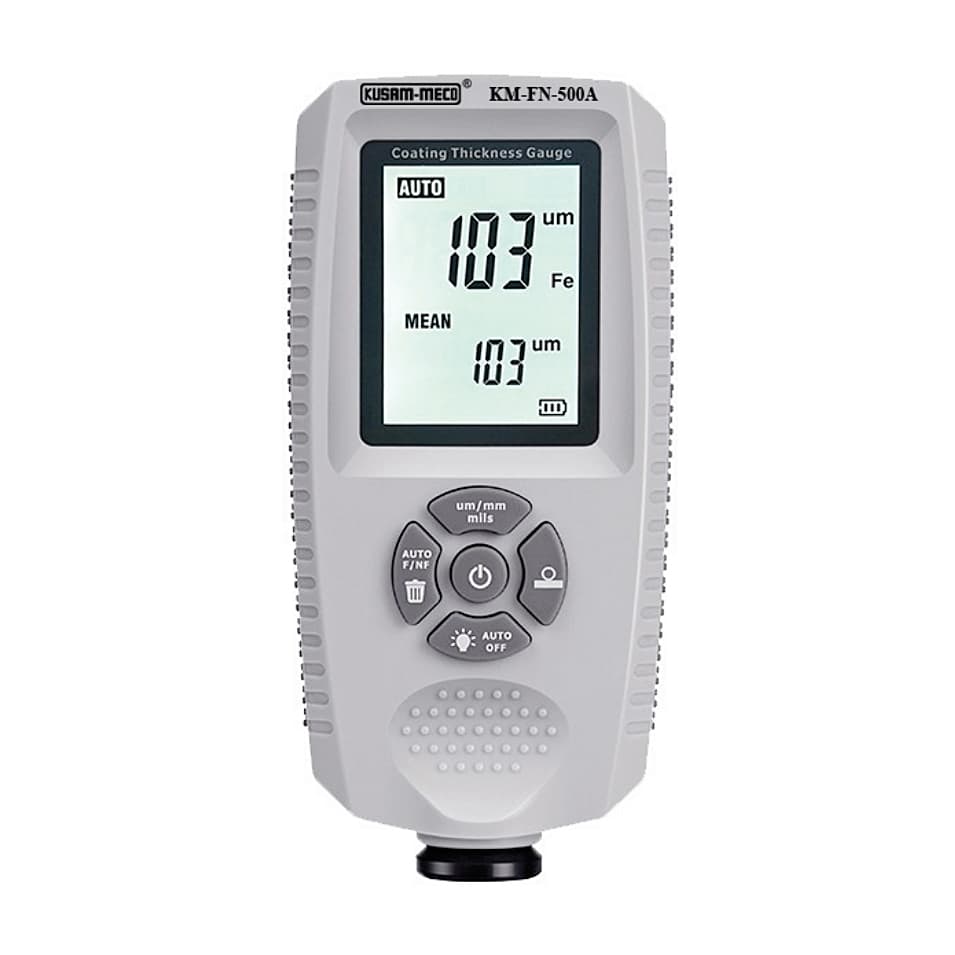

This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, & insulating coatings, e.g. pain & anodizing coatings on non-ferrous metals. Coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.
| Measuring Range | 0 to 1500 mm |
|---|---|
| Accuracy | Type A: ±(3%+1μm) / Type B: ±(2%+1μm) |
| Resolution | 0μm~99.9μm (0.1μm) 100μm~999μm (1μm) >1000μm (0.01mm) |
| Backlight | Yes |
| Minimum Curvature Radius Convex | 5mm |
| Minimum Curvature Radius Concave | 25mm |
| Minimum Measuring Area | Diameter 20mm |
| Minimum Thickness of Substrate | 0.2mm (Probe F) / 0.05mm (Probe N) |
| Power Supply | 2 x 1.5V AAA battery |
| Operating Temperature | 0~50°C (32 ~ 122°F) |
| Humidity | 20% ~ 90% RH |
| Storage Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Units |
| μm, mm, mils |
| Standard Compliance | CE ROHS FCC |
|---|
| Maximum Measuring Rate | Two Readings Per Second |
|---|
| Calibration | Zero Point Calibration |
|---|
| Statistics | No. of readings, Mean, Minimum, Maximum |
|---|
| Measuring Principle | Magnetic induction (Probe F) / Eddy Currents (Probe N) |
|---|
| Dimension | 110 x 53 x 24 mm |
|---|
