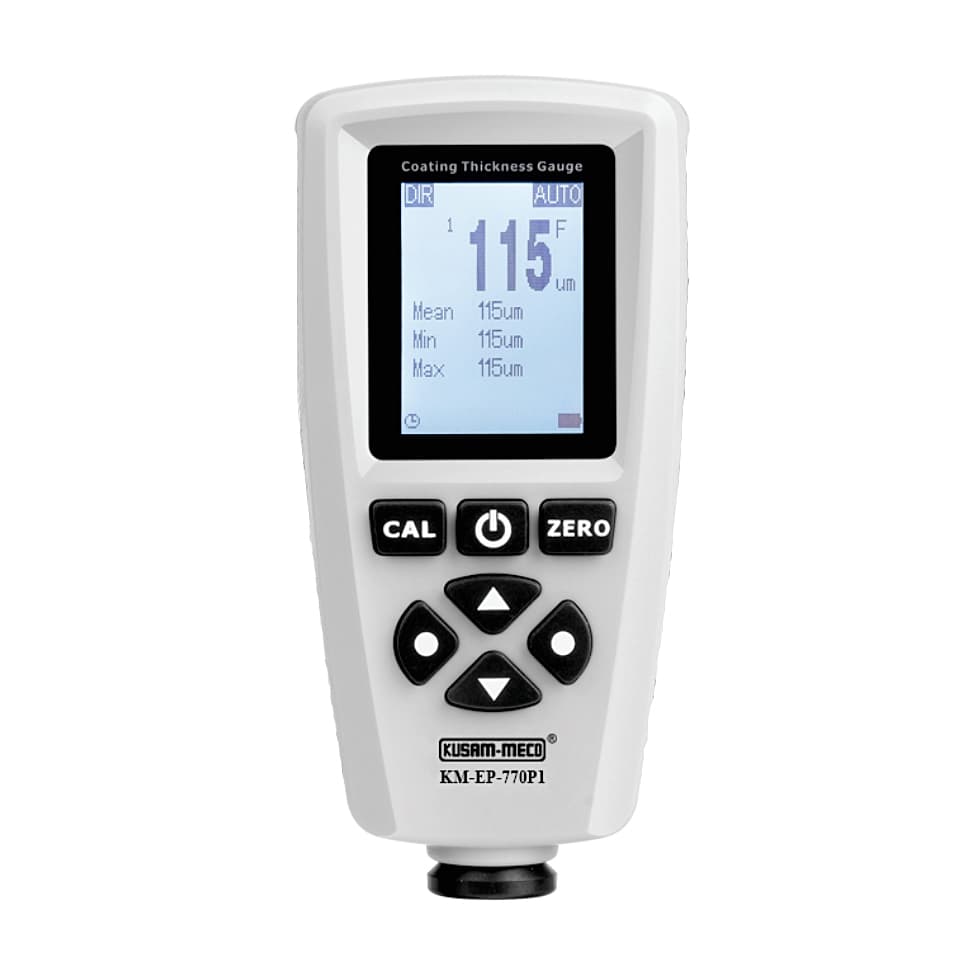

Kusam-Meco 0 - 2000μm Digital Coating Thickness Gauge, KM-EP-770

This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, & insulating coatings, e.g. pain & anodizing coatings on non-ferrous metals. This gauge is designed for non-destructive, fast & precise coating thickness measurement.

The principal applications lie in the field of corrosion protection. It is ideal for manufacturers & their customers, for offices & specialist advisers, for paint shops & electroplaters, for the chemical, automobile, shipbuilding & aircraft industries & for heavy engineering. It is suitable for laboratory, workshop & outdoor use.

Features:

• 128 * 128 dot matrix LCD, standard menu operations
• Two measure mode: Single & Continuous
• Two group modes: direct (DIR) & General(GEN), readings will be lost when power is off in direct mode, & not be lost in general mode. Readings can be stored for each group
• Zero-point calibration & multi-point calibration (up to 4 points ) for each group
• Users can recall, delete specified readings, or delete group readings
• Statistics display: mean, minimum, maximum & standard deviation
• Three probe modes: auto, magnetic & eddy current
• Users can set high or low-limit alarms for each group
• Power off automatically
• USB interface to data transmission
• Low battery & Error Indication
• Calibration: One-point to four-point calibration, Zero-point calibration
• Data Group: One direct group (readings not be stored in memory) & Four general groups (max. 320 readings); Note - Each group has individual statistics, alarm limit settings & calibration
• Statistics: No. of readings, mean, minimum, maximum & standard deviation
• Alarm: The user can set the high/low alarm limit, The Alarm icon is displayed on the LCD when over the limit



Package Content:

• Thickness Guage
• User Manual
• Battery
• Carrying Case
