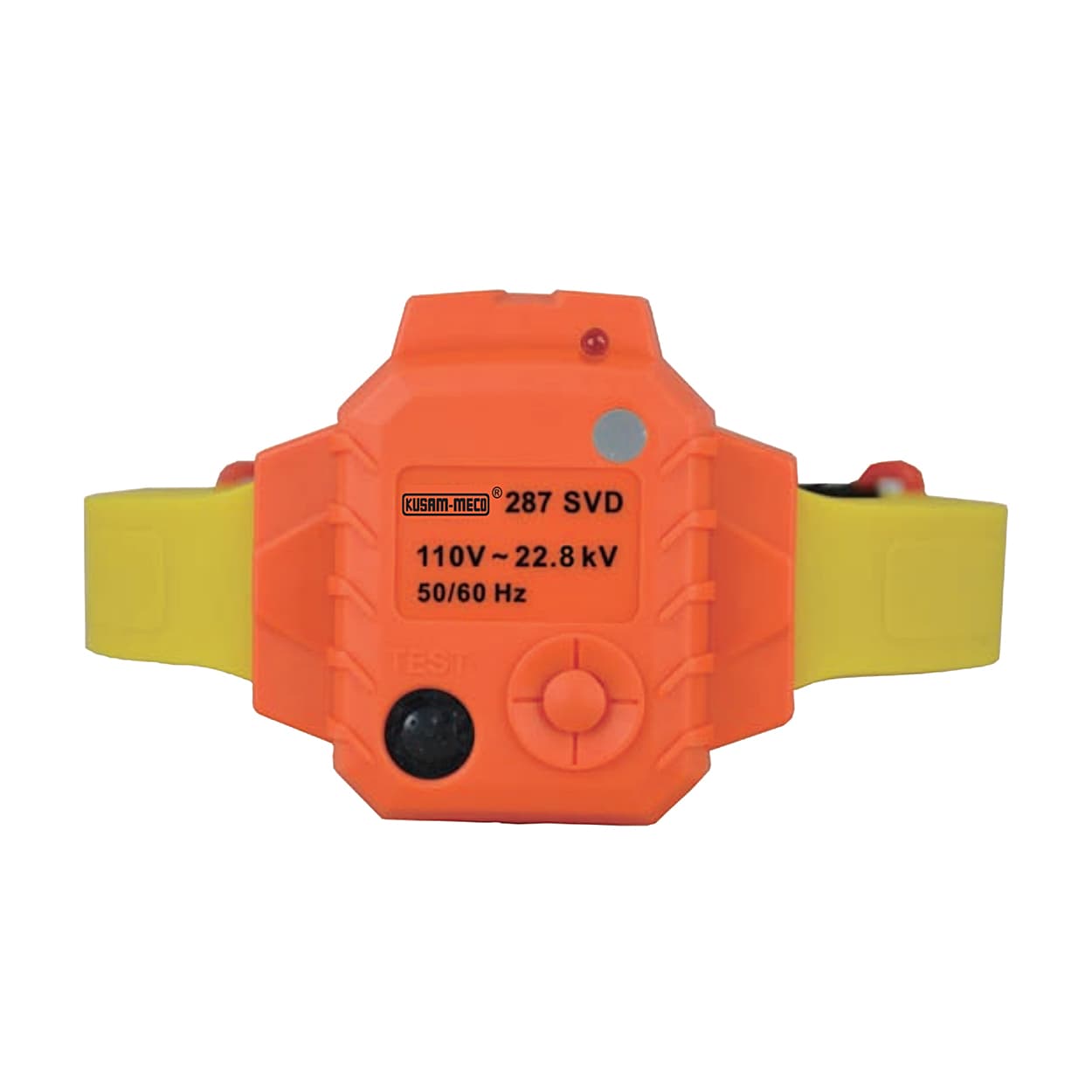

287SVD is a sensor for sensing AC High Voltage. It provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warning when approaching high voltage source.
Features:
- Compact, easy to wear and convenient in use.
- Usable both indoor and outdoor.
- Water-proof design (IP65)
- Equipped with self-testing functions.
- Able to sense all kinds of AC High Voltage System.
- Low power consumption.
- CE Certified.
Package Content:
- Elastic cord
- Instruction manual & Battery
Technical Data:
| Voltage |
Detection Distance |
| 6.6kV |
40 cm ± 20% |
| 11.4kV |
55 cm ± 20% |
| 22.8kV |
85 cm ± 20% |
Method of use:
| Inspection before use |
- Check the appearance and structure for any abnormality.
- Press the Self-Test switch (about 10 seconds) to confirm all functions are working normally.
- To be careful and to avoid misjudgment, test the unit by contacting AC 110V / insulated wire with its front side to see if it sounds and flashes.
|
| Wearing |
- Wear the unit in front of the safety helmet.
- Wear the unit to the outer side of the forearm with the sensing side facing outward, as shown in the figure: The effect is best when the sensing side is facing high voltage at a right angle (90Deg.) / When it is worn at the inner side of the arm or is covered by cloth, the sensitivity is poorer.
|
