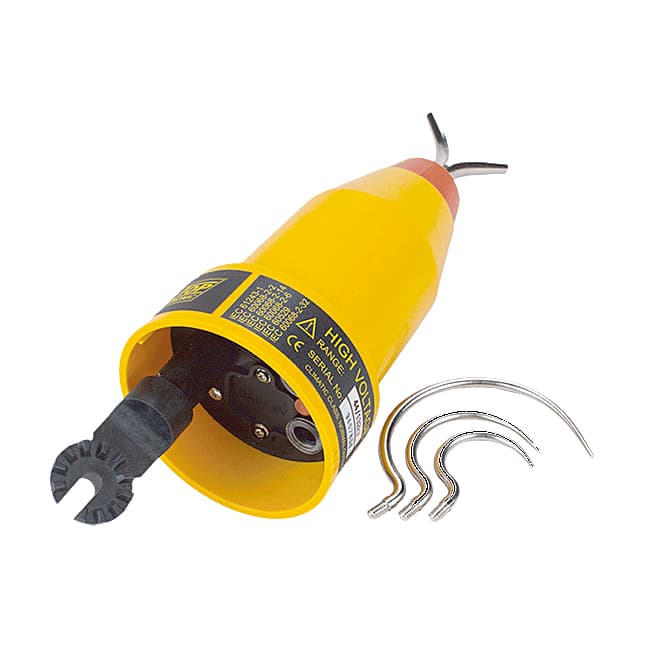

Capacitive High Voltage Detector Model 213HVD has been designed to meet the latest IEC Standards. It is self-starting and automatically activated when the High Voltage is applied to the contact electrode. It can also be manually armed before use by depressing the "TEST/ ARMING" Button. This detector is intended for use on sinusoidal (50 or 60Hz) High Voltage Systems.
Capacitive High Voltage Detector Model 213HVD systems voltage is 11kV. It is utilized to determine if a system is live or not, so that it may be safely earthed / grounded. Model 213HVD is designed for outdoor, but can be utilized indoors and in all weather conditions. It is housed in a rugged, reinforced nylon molded casing and is shock drop and vibration-resistant. Non-standard threshold voltages can be customized to suit application requirements.
The High Voltage Detector has a low battery detection which inhibits manual arming when the battery is too low. The Nylon case is easy to clean and maintain and the High Voltage Detector is supplied with the cleaning kit. A visual indication shows when the High Voltage Detector is armed. When armed, the Green Leds flashes about twice per second. When High Voltage is detected, the RED LED flashes about twice per second and the buzzer also buzzes intermittently.
| System Voltage | 11kV |
|---|---|
| Response Time | <1 Sec |
| Threshold Set Within Range | 1.65kV - 4.4kV |
| Auto - OFF | 3 Min |
| Battery Low | < 7V |
| Threshold | 3.02 kV |
| Battery Current | < 30mA |
| Test / Arming Button | 11kV |
| Bridging Protection | Yes |
| Spark Protection | Yes |
| Green = Armed | Yes |
| Red = V Detected | Yes |
| Dimension (LxWxD) | 300 x 100 x 100 mm |
