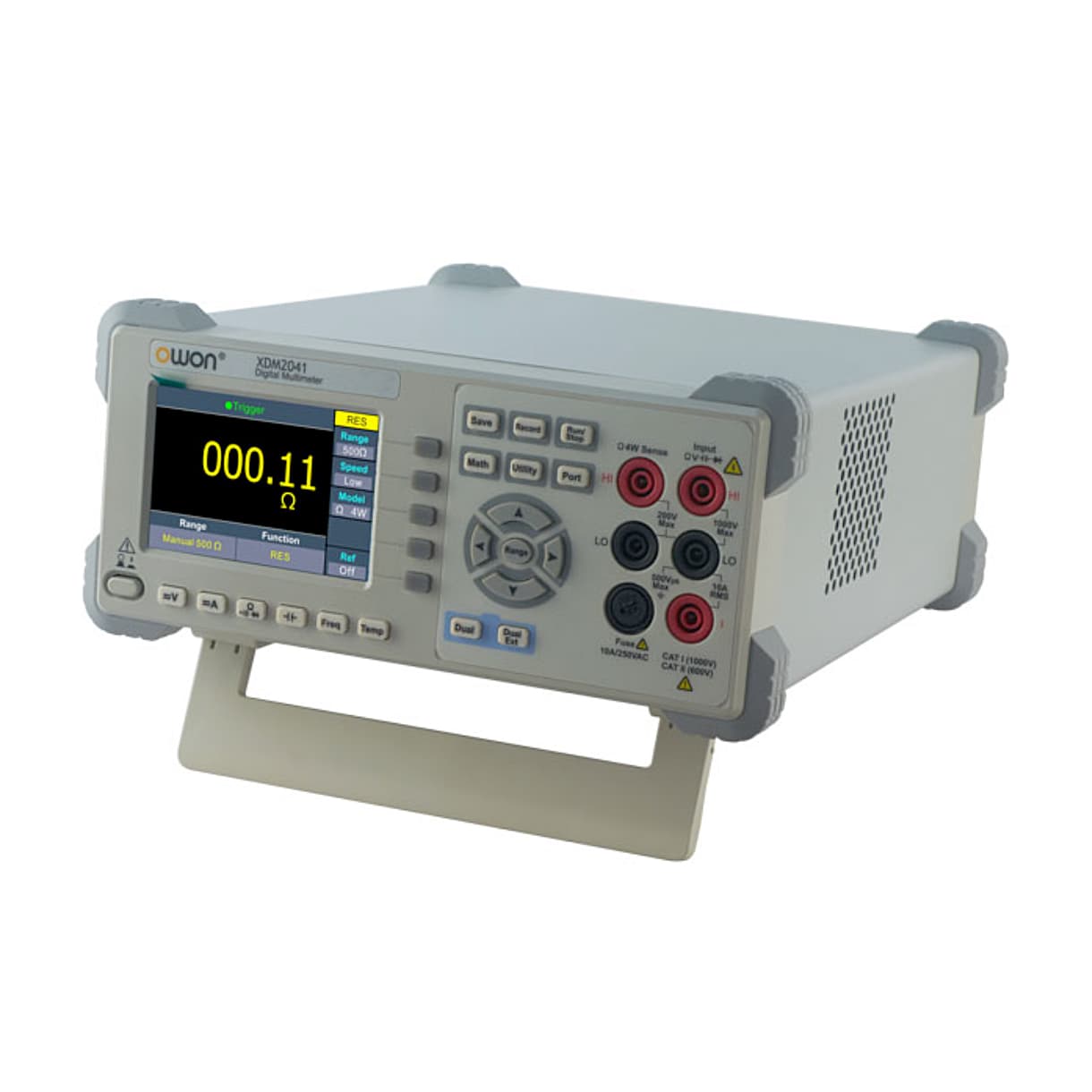

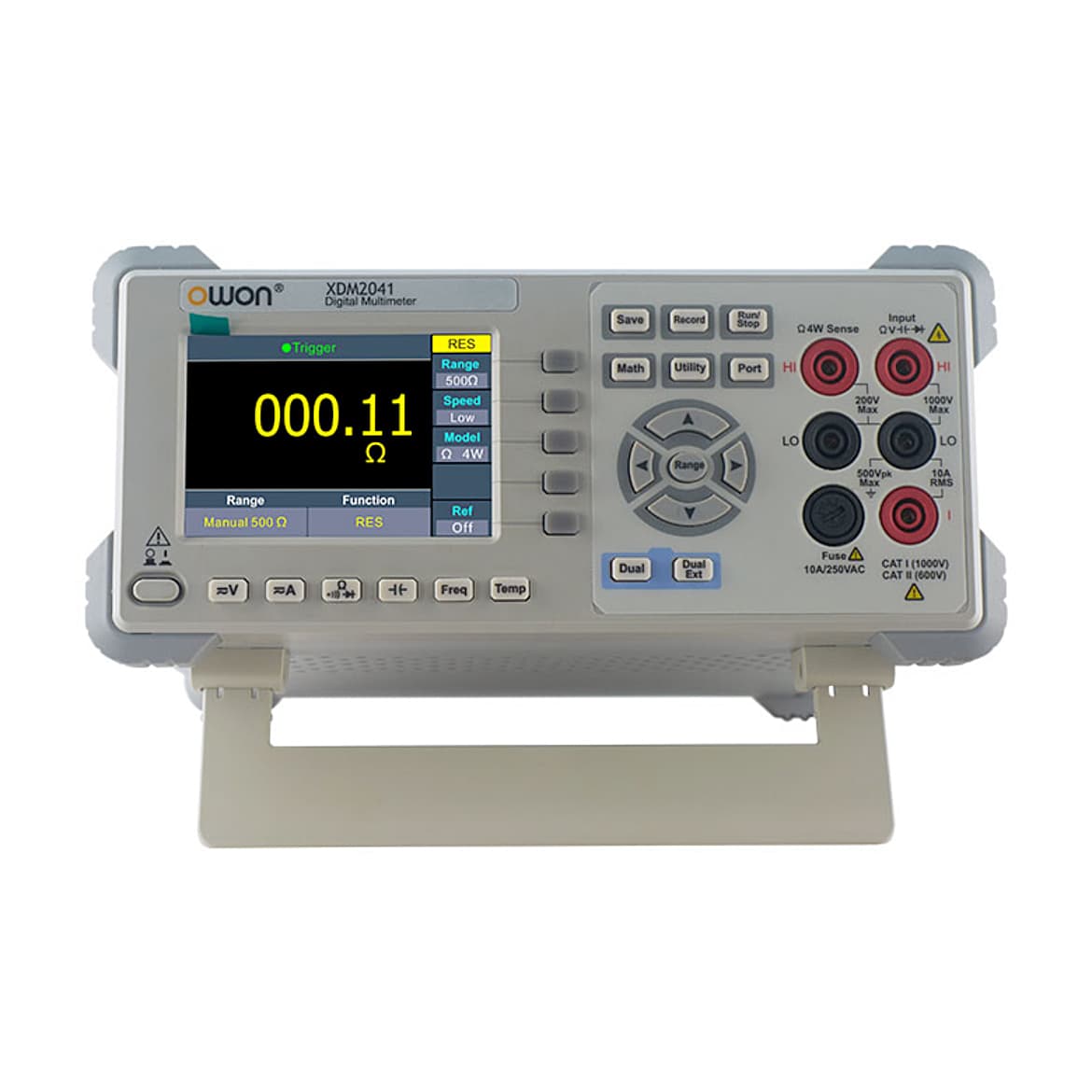

Owon 4-1/2 Digit / 55000 Count Bench Type TRMS Digital Multimeter, XDM 2041

• Up to 65 readings per second
• True RMS AC voltage / current measurement
• Dual line display supported
• Trend analysis is accessible in chart mode
• SCPI support
• Operating Environment: Full temperature from 0°C to 50°C, 80% RH and 40°C, non condensing (Storage Temperature: -20 to 70°C)
• Electromagnetic compatibility: Conforming to EMC Directive 2014/30/EU and EN 55032:2012/AC: 2013
• Safety: Conforming to EN 61010-1:2010 and low voltage instructions LVDDirective 2014/35/EU
• Programmer Language: Standard SCPI, compatible with the commands of mainstream multimeters

Technical Data:

	Measurement Range	Resolution	Accuracy ±(% of reading + LSB)
DC Voltage	50.000mV	0.001mV	0.1%+10
500.00mV	0.01mV	0.025%+5
5.0000V	0.0001V	0.025%+5
50.000V	0.001V	0.03%+5
500.00V	0.01V	0.1%+5
1000.0V	0.1V	0.1%+5
AC Voltage	500mv-750v	20Hz~45Hz	1% + 30
45Hz~65Hz	0.5% + 30
65Hz~1KHz	0.7% + 30
DC Current	500uA	0.01uA	0.15%+20
5000uA	0.1uA	0.15%+10
50mA	0.001mA	0.15%+20
500mA	0.01mA	0.15%+10
5A	0.0001A	0.5%+10
10A	0.001A	0.5%+10
AC Current	500uA-500mA	20 Hz – 1 kHz	0.5%+20
5A-10A	1.5%+20
Resistance	500Ω	0.01Ω	0.1%+10
5KΩ	0.0001KΩ	0.1%+5
50KΩ	0.001KΩ	0.1%+5
500KΩ	0.01KΩ	0.1%+5
5MΩ	0.0001MΩ	0.25%+5
50MΩ	0.001MΩ	0.1%+10
Four-wire resistance	500Ω	0.01Ω	0.1%+10
5KΩ	0.0001KΩ	0.1%+5
50KΩ	0.001KΩ	0.1%+5
Frequency	10.000Hz–60MHz	/	±(0.2%+8)
Capacitance	50nF-500uF	/	2.5%+5
5mF-50mF	5%+8

Package Content:

• 1x Bench-type Digital Multimeter
• Power Cord
• Quick Guide
• Multimeter Leads
• Fuse
• Alligator Clip
