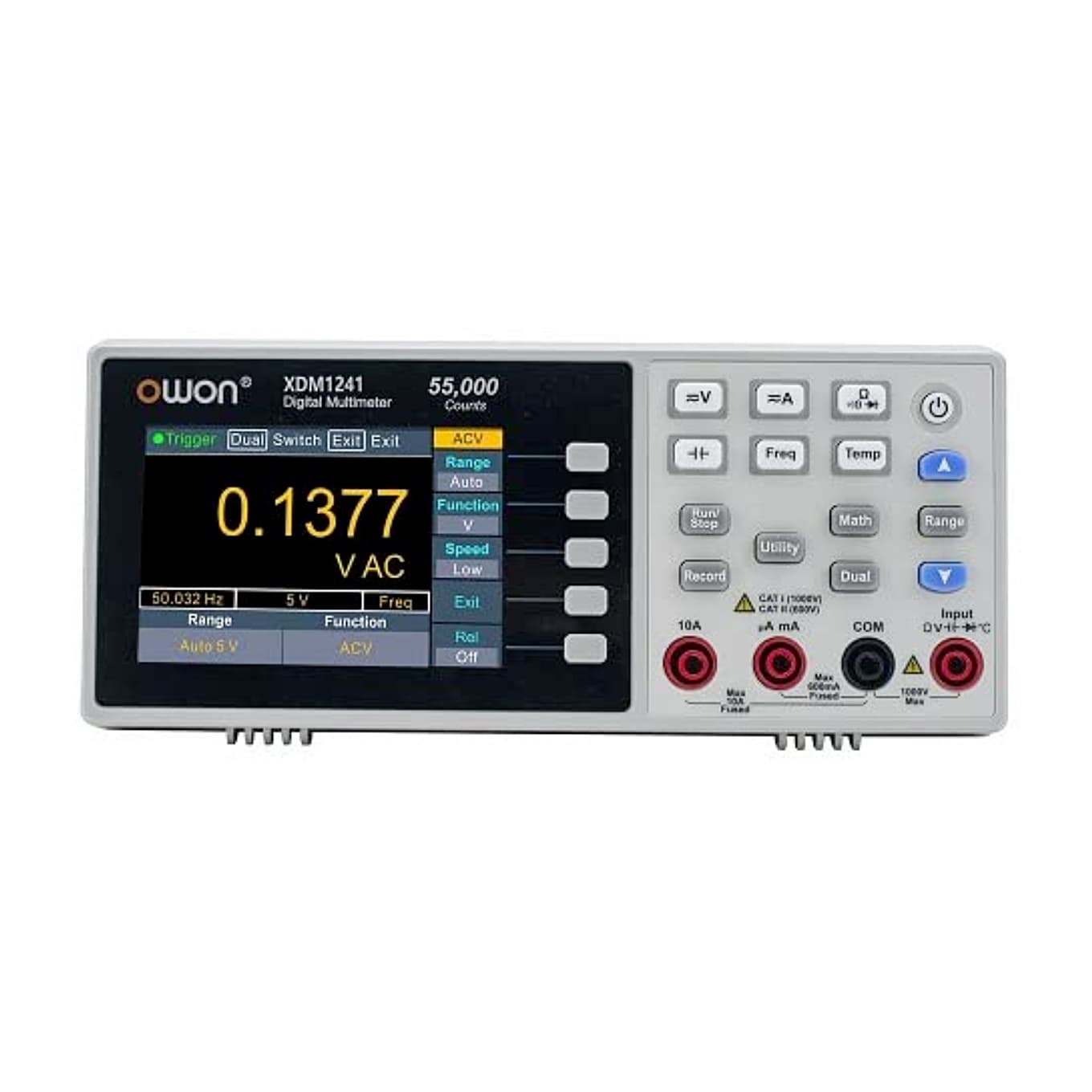

Owon 4-4/5 Digit / 55000 Count True RMS Bench-type Digital Multimeter with Rechargeable Battery, XDM 1241

• 3.5-inch (480x320)  high-resolution LCD, providing a clear display
• Display max 55000 counts (4-4/5 digits), DC voltage accuracy up to 0.05%
• Reading rates Up to 60 readings per second
• True RMS AC voltage / current measurement
• Dual line display supported
• SCPI supported, remote control the multimeter through PC software via USB port
• Data record function, you can record the measured data into internal memory and then read and process the recorded data with your computer
• Lithium battery, suitable for different application scenarios
• Multiple measurement functions: DC/AC Voltage, DC/AC Current, resistance, capacitance measurement, continuity test, diode test, temperature measurement, AC and frequency (AC + Hz) measurement, MAX/MlN/average measurement, relative measurement (REL_%)
• AC True RMS measurement, measurement bandwidth: 20 Hz - 1kHz
• Manual or auto record the measured data into internal memory, and displayed in table

Technical Data:

	Measurement Range	Resolution	Accuracy ±(% of reading +LBS)
DC Voltage	50.000mV	0.001mV	0.1%+10
500.00mV	0.01mV	0.05%+5
5.0000V	0.0001V	0.05%+5
50.000V	0.001V	0.05%+5
500.00V	0.01V	0.1%+5
1000.0V	0.1V	0.1%+10
AC Voltage	500mv - 750v	20Hz - 45Hz	1% + 30
45Hz - 65Hz	0.5% + 30
65Hz - 1KHz	0.7% + 30
DC Current	500uA	0.01uA	0.15%+20
5000uA	0.1uA	0.15%+10
50mA	0.001mA	0.15%+20
500mA	0.01mA	0.15%+10
5A	0.0001A	0.5%+10
10A	0.001A	0.5%+10
AC Current	500uA - 500mA	20Hz - 1KHz	0.5%+20
5A - 10A	1.5%+20
Resistance	500Ω	0.01Ω	0.15%+10
5KΩ	0.0001KΩ	0.15%+5
50KΩ	0.001KΩ	0.15%+5
500KΩ	0.01KΩ	0.15%+5
5MΩ	0.0001MΩ	0.3%+5
50MΩ	0.001MΩ	1%+10
Frequency	10.000Hz–60MHz	-	±(0.2%+10)
Capacitance	50nF-500uF	-	2.5%+10
5mF-50mF	5%+10
Diode	3.0000 V	0.0001V	-
Continuity	1000 Ω	0.1Ω	Adjustable threshold

Package Content:

• 1x TRMS Bench-type Digital Multimeter
• Quick Guide
• USB Cable
• Multimeter Leads
• Alligator Clip
• USB to DC Cord

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
