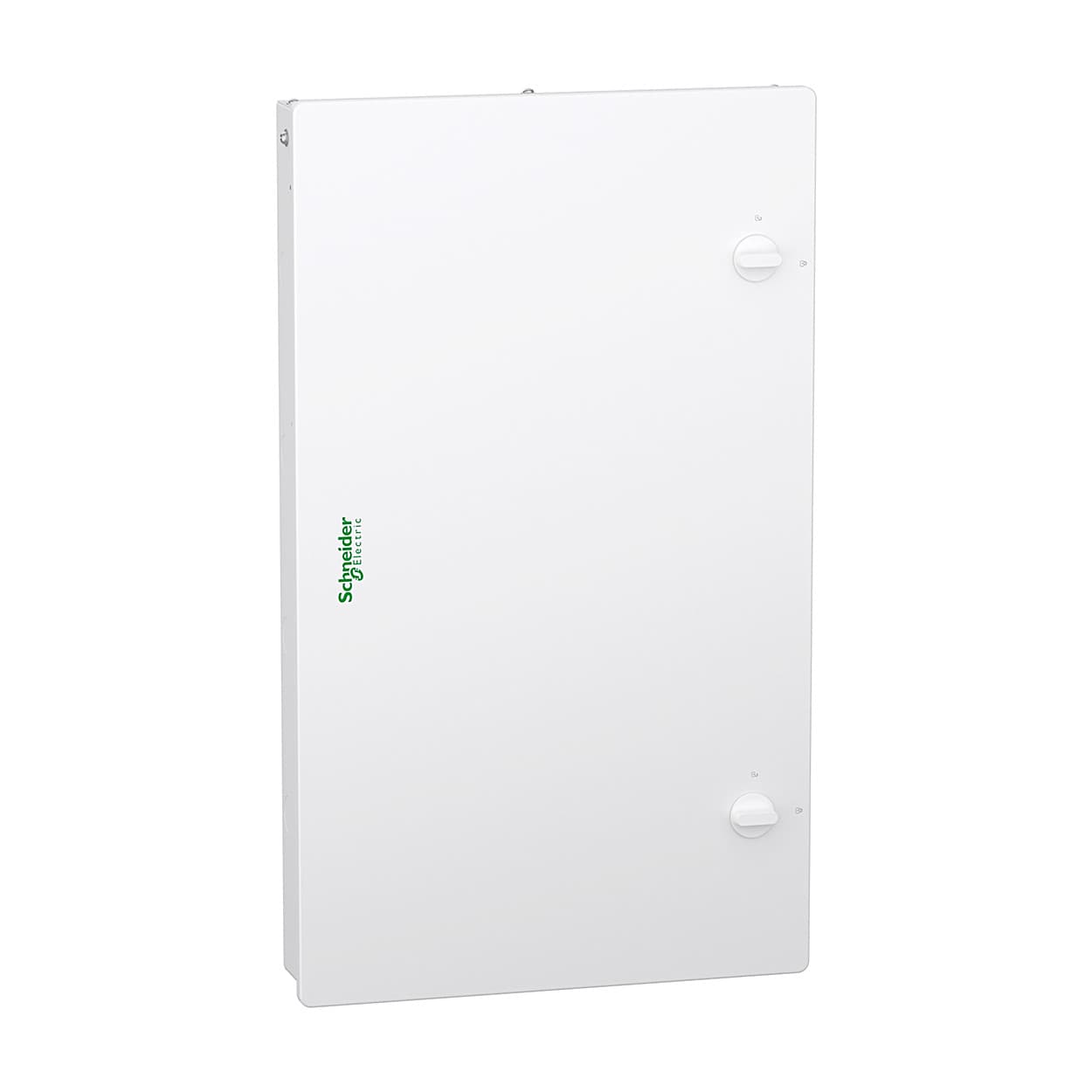

Schneider Electric 4 Tier 56 Modules Double Door Metal - Flexi Tier DBs (IP43), A9HFD456
Roll over the image to zoom in
Key Features
- Product Type: MCB Distribution Boards
- Total Module: 4 Incomer x 14 Outgoing
- Colour: White (RAL 9003)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,659 (Incl. of all taxes)
₹5,643 + ₹1,016 GST (18%)
MRP was MRP ₹14,108
Save 60%
3 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights

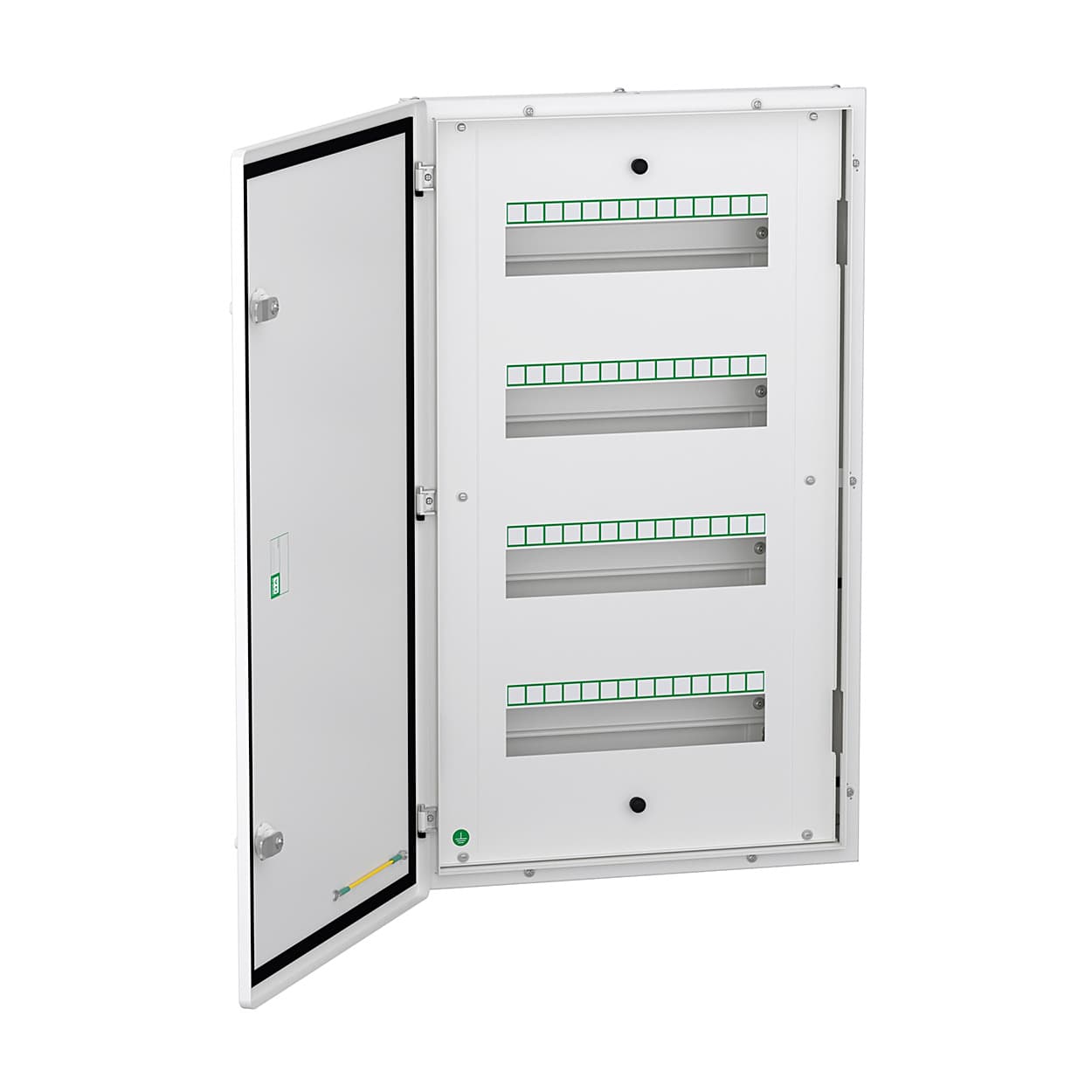

This Acti9 distribution board comes with reversible double metal door for door opening. This distribution board gives total flexibility to mount an type and size of modular devices as per load requirement. It allows the mounting of modular devices on 4 rows of 14 modules of 18 mm (56 modules total). The dimensions are (W) 436mm x (H) 740.6mm x (D) 101.6mm.
The color of the distribution board is white (RAL 9003). The degree of protection is IP43, IK09 with the double metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.
Complementary
| Enclosure mounting |
|
| Number of horizontal rows | 4 |
| Number of 18 mm modules per row | 14 |
| Total number of 18 mm modules | 56 |
| Enclosure/cubicle description | Double door enclosure |
| Enclosure material |
|
| Door opening side | Reversible |
| Height | 740.6 mm external: |
| Width | 436 mm external: |
| Depth | 101.6 mm external: |
Environment
| IP degree of protection | IP43 |
| IK degree of protection | IK09 |
| Standards |
|
| Product certifications |
|
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.8 cm |
| Package 1 Width | 74.6 cm |
| Package 1 Length | 44.2 cm |
| Package 1 Weight | 15.68 kg |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 4 Incomer x 14 Outgoing |
|---|---|
| Range | Acti9 |
| Product Name | Flexi Tier |
| Device Application | Distribution |
| Product Or Component Type | Consumer Unit |
| Colour | White (RAL 9003) |
| Provided Equipment | Removable Gland Plates, Removable Centre Plates, Removable Frame, Grounding Bar & Neutral Bar |
