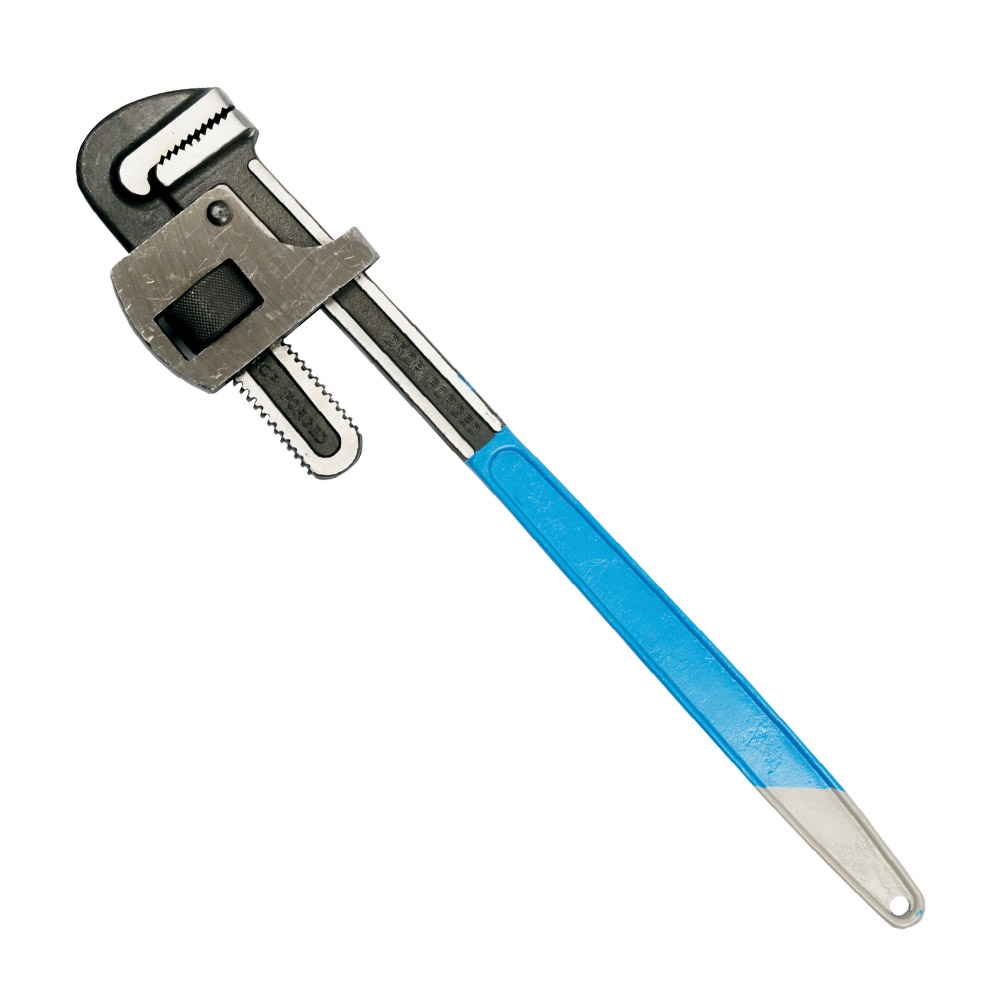

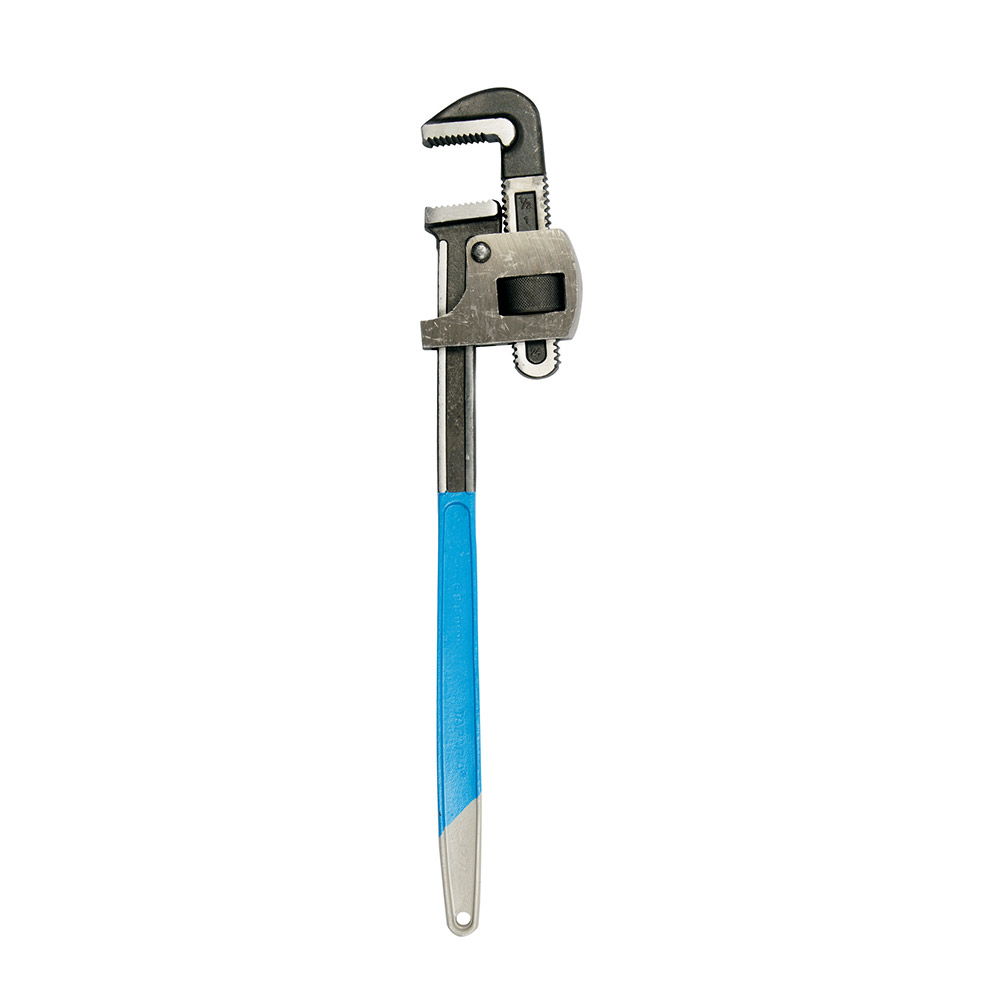

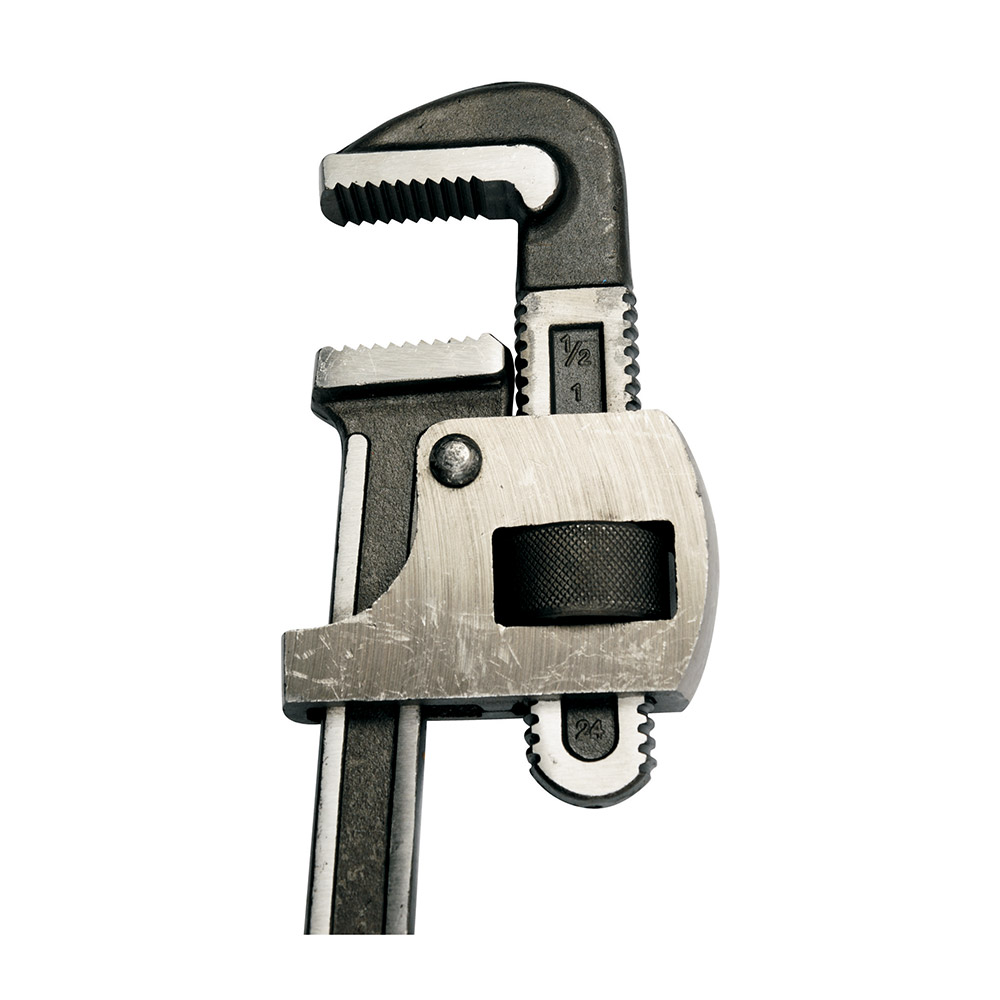

Taparia 18 Inch / 450 mm Stillson Type Pipe Wrench, 1275
Roll over the image to zoom in
Key Features
- Product Type: Pipe Wrenches
- Weight: 1540 g
- Sizes (mm): 450 mm
- Length (Inches): 18 inch
- Capacity (mm): 60 mm
- Suitable For Pipe: 2
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹683 (Incl. of all taxes)
₹579 + ₹104 GST (18%)
MRP was MRP ₹827
Save 30%
1 Business Days
1
82041220
Download Taparia CatalogueNot available
Highlights
- The Jaws are Drop forged from high-grade carbon steel.
- Differential hardness pattern of the handle and jaw permits wear resistance teeth and tough body.
- Hardness : On Jaws 50-60 HRC, On Jaw shank 35-45 HRC.
- Jaws having precision machined integral teeth with included angle of 76 provides best matching, strength and firm gripping, without biting on the job as happens in other makes.
- Provided with specially designed conical compression springs, which properly balances the movable jaw so that action both forward and backward is possible These springs are long lasting as compared to traditional leaf springs.
- High grade malleable cast iron housing, heat treated rivets of carbon steel, heat treated and suitably knurled nut makes the pipe wrenches stronger ensuring high Torque values.
| Size In mm | Torque Value In Kg.M |
| 250 | 34 |
| 300 | 51 |
| 350 | 66 |
| 450 | 102 |
| 600 | 148 |
| 900 | 240 |
- Phosphated and painted to guard against rusting.
- TAPARIA Pipe Wrenches generally Conform to IS 4003 - 1978.
Available In Following Sizes :-
| Size In mm | Max Opening In mm | Suitable To Pipe Size (mm) |
| 250 | 33 | 26 |
| 300 | 42 | 32 |
| 350 | 48 | 38 |
| 450 | 60 | 52 |
| 600 | 73 | 65 |
| 900 | 95 | 95 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sizes (mm) | 450 mm |
|---|---|
| Length (Inches) | 18 inch |
| Capacity (mm) | 60 mm |
| Suitable For Pipe | 2 |
| Sub Type | Stillson Type |
| Design No | 161772 |
| Grade | IS:4003 (Part-1) - 1978 |
