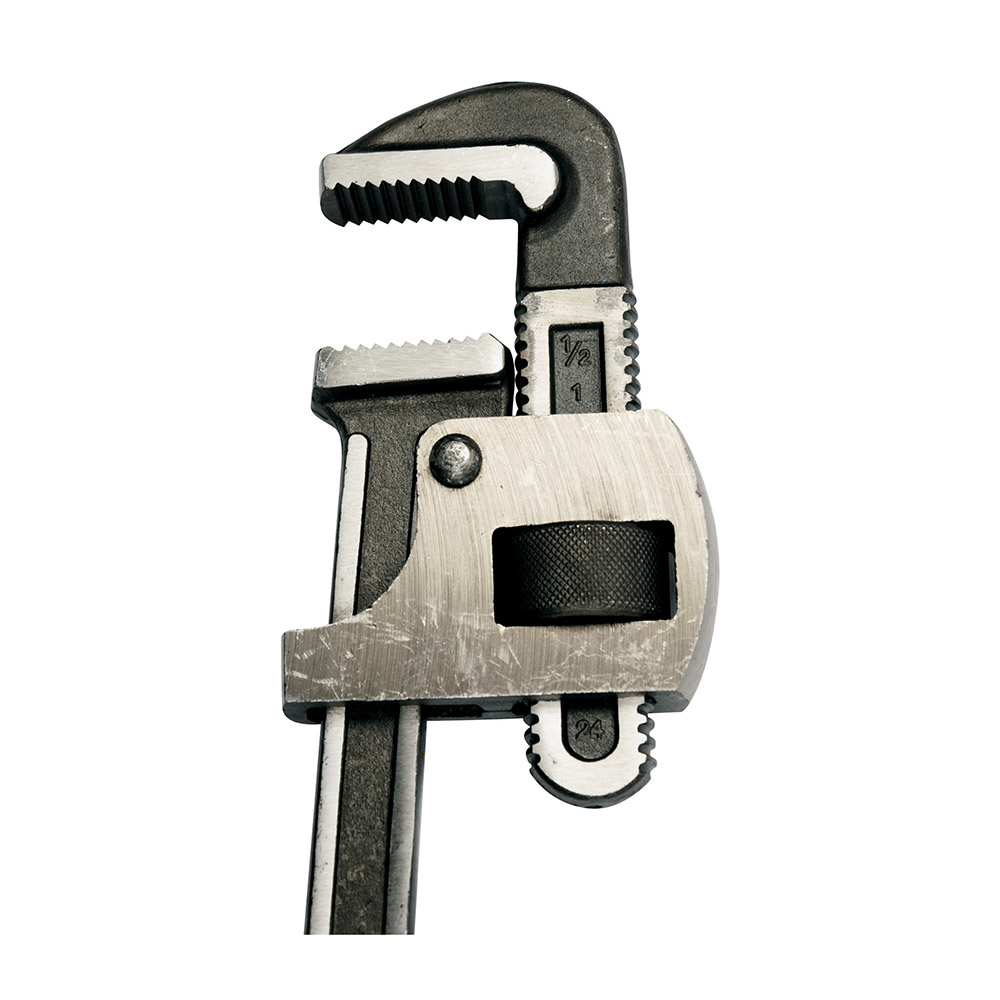

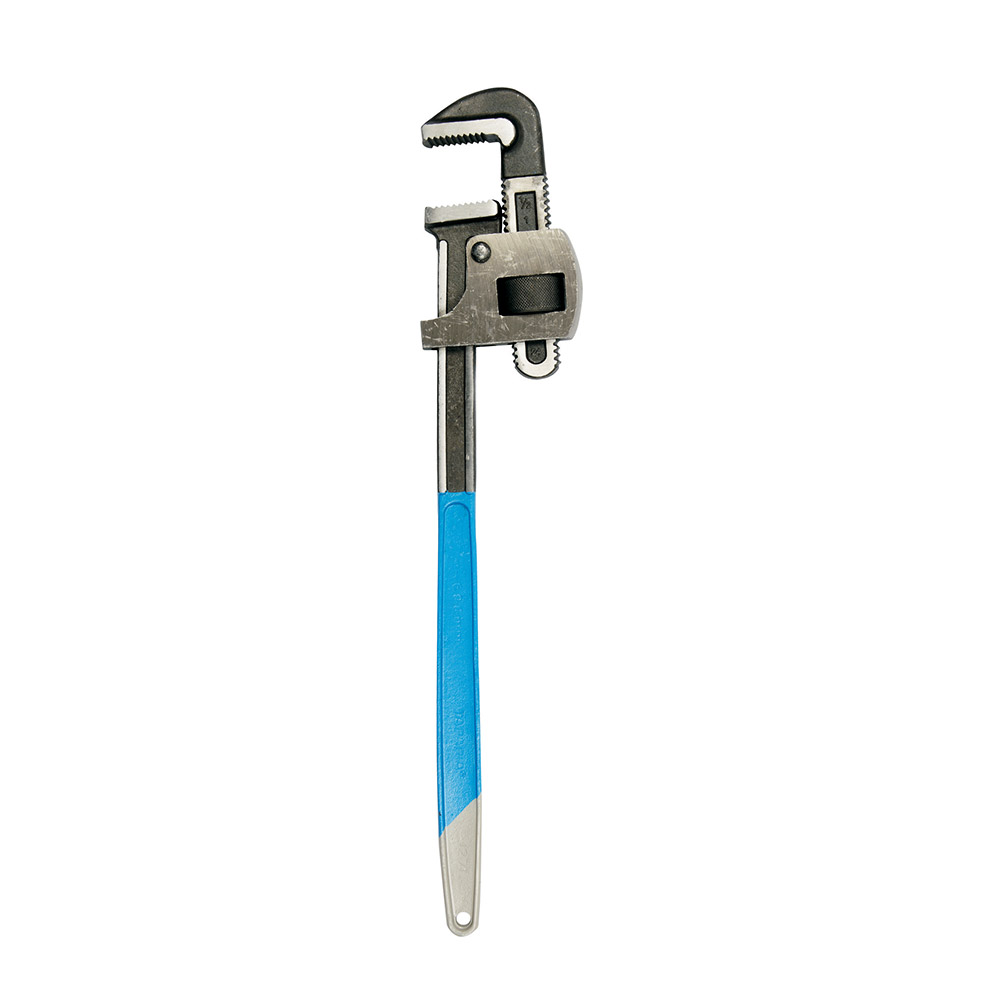

Taparia 24 Inch / 600 mm Stillson Type Pipe Wrench, 1276

Shop all Taparia

SKU: HA.WR.PI.00018

Model: 1276

Roll over the image to zoom in


Key Features

  • Product Type: Pipe Wrenches
  • Weight: 2920 g
  • Sizes (mm): 600 mm
  • Length (Inches): 24 inch
  • Capacity (mm): 73 mm
  • Suitable For Pipe: 2-1/2
See all product information

ToolBuy Benefits

₹1,244 (Incl. of all taxes)

₹1,054 + ₹190 GST (18%)

MRP was MRP ₹1,505

Save 30%



1 Business Days

1

82041220

Download Product LeafletNot available
Download Taparia CatalogueNot available

Highlights

  • The Jaws are Drop forged from high-grade carbon steel.
  • Differential hardness pattern of the handle and jaw permits wear resistance teeth and tough body.
  • Hardness : On Jaws 50-60 HRC, On Jaw shank 35-45 HRC.
  • Jaws having precision machined integral teeth with included angle of 76 provides best matching, strength and firm gripping, without biting on the job as happens in other makes.
  • Provided with specially designed conical compression springs, which properly balances the movable jaw so that action both forward and backward is possible These springs are long lasting as compared to traditional leaf springs.
  • High grade malleable cast iron housing, heat treated rivets of carbon steel, heat treated and suitably knurled nut makes the pipe wrenches stronger ensuring high Torque values.
Size In mm Torque Value In Kg.M
250 34
300 51
350 66
450 102
600 148
900 240

  • Phosphated and painted to guard against rusting.
  • TAPARIA Pipe Wrenches generally Conform to IS 4003 - 1978.


Available In Following Sizes :-

Size In mm Max Opening In mm Suitable To Pipe Size (mm)
250 33 26
300 42 32
350 48 38
450 60 52
600 73 65
900 95 95


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Taparia 24 Inch / 600 mm Stillson Type Pipe Wrench, 1276
Sizes (mm)600 mm
Length (Inches)24 inch
Capacity (mm)73 mm
Suitable For Pipe2-1/2
Sub TypeStillson Type
Design No161772
GradeIS:4003 (Part-1) - 1978
