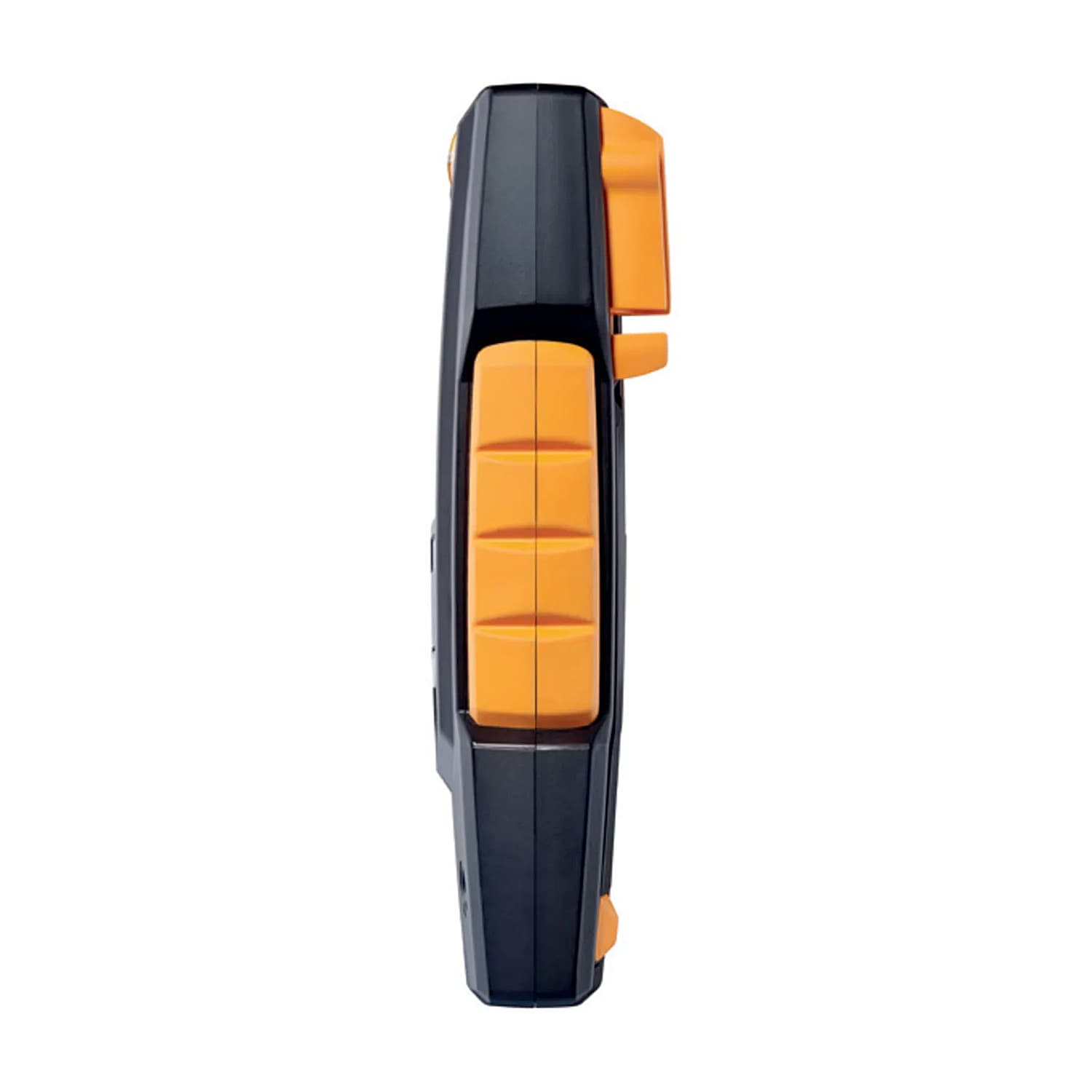

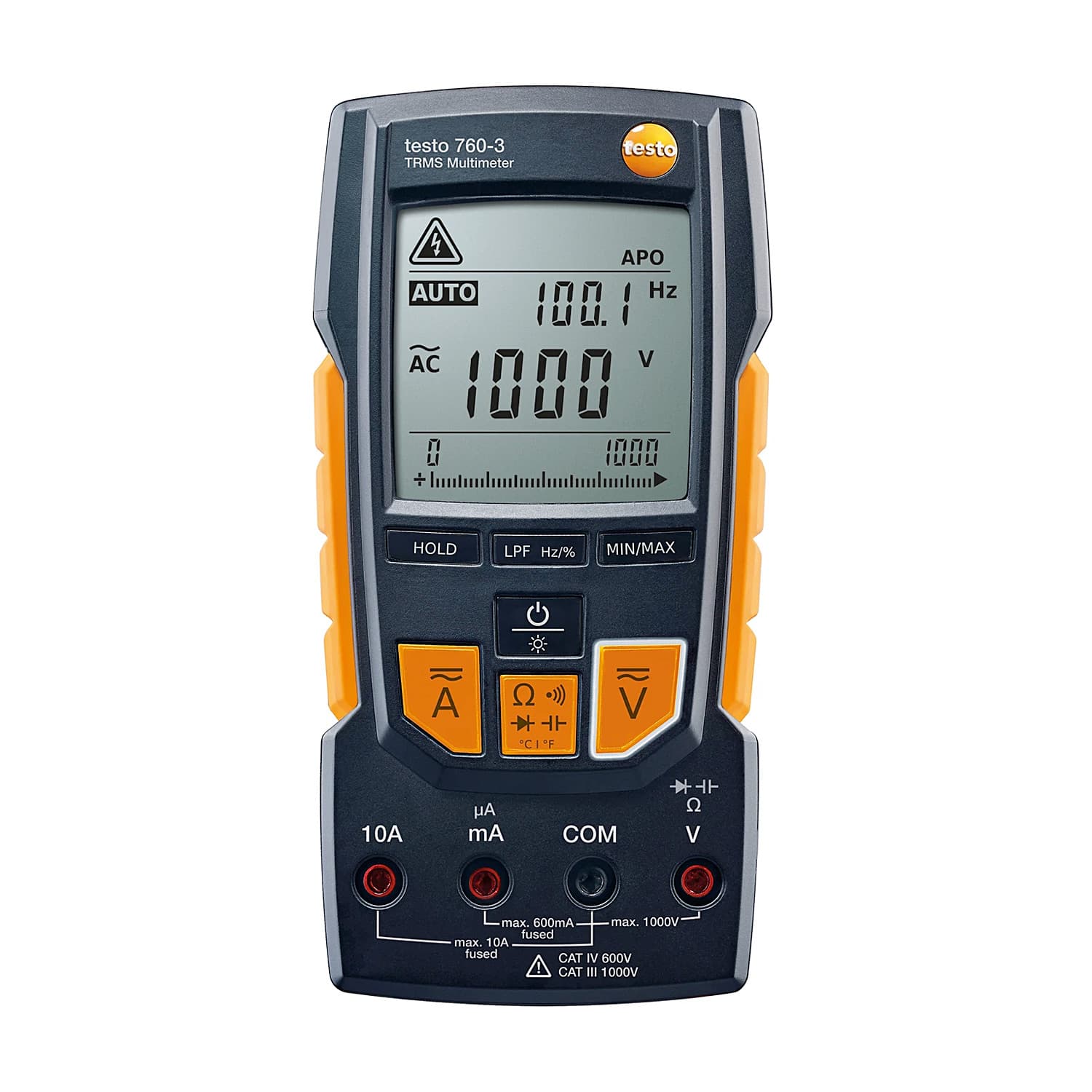

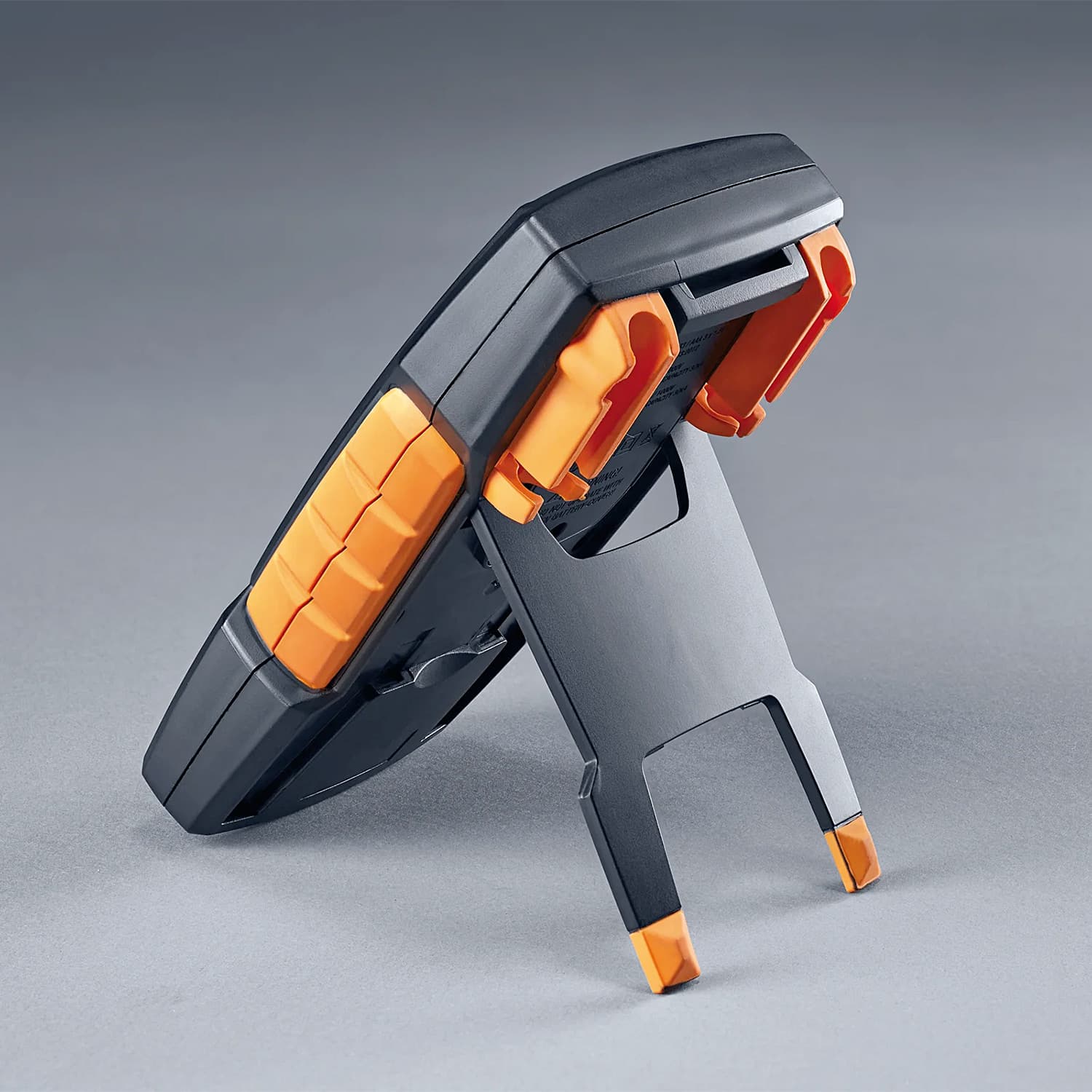

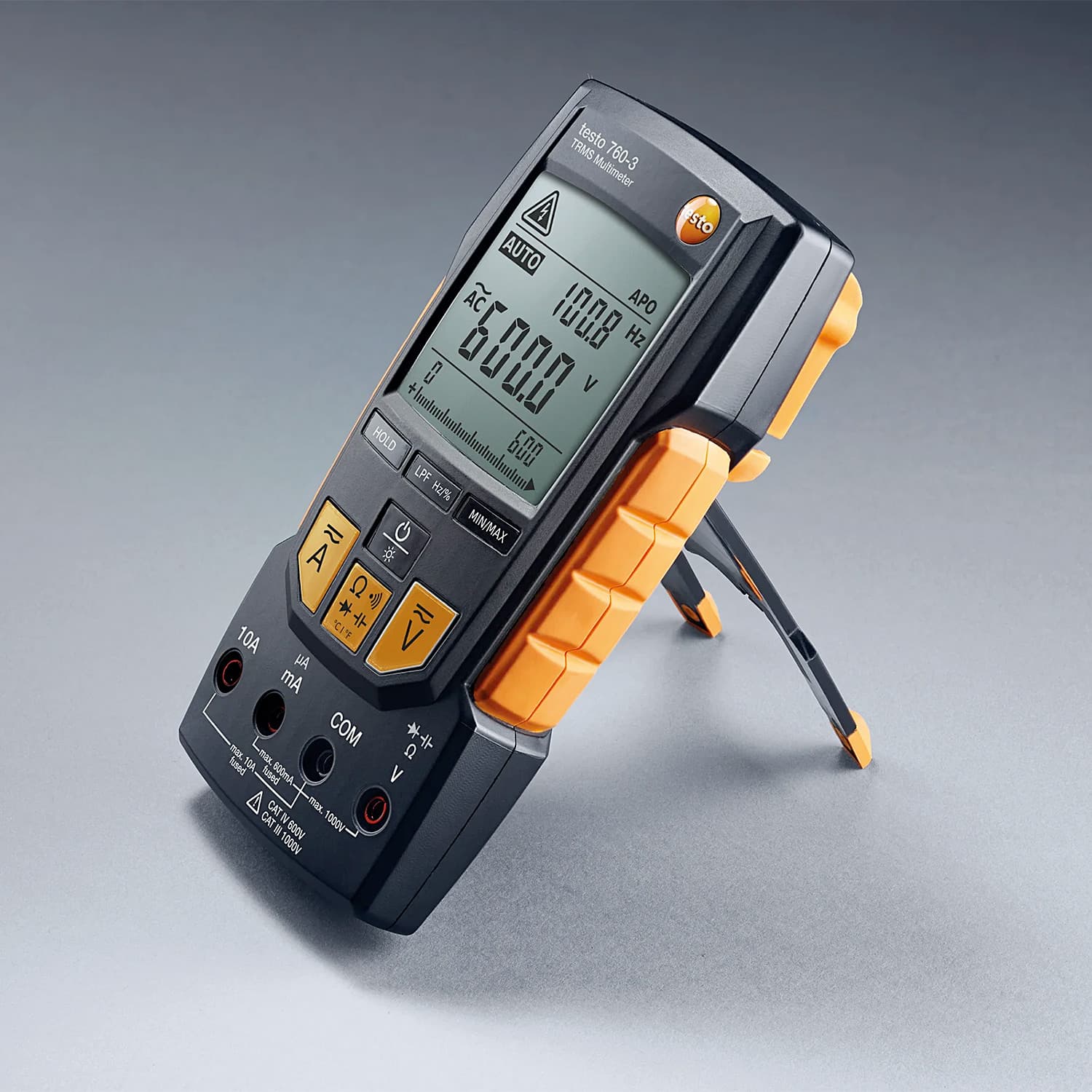

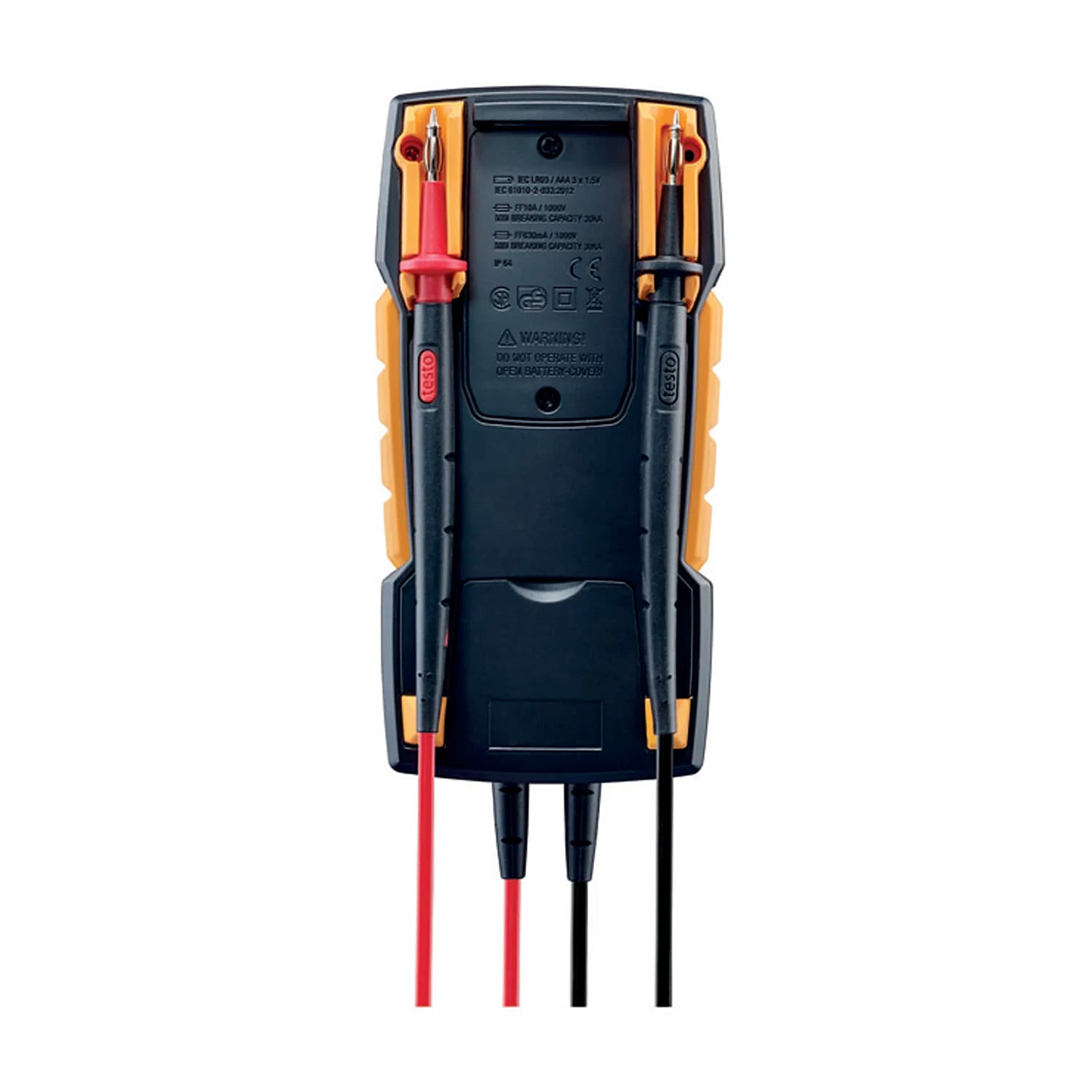

Testo 6000 Count TRMS Digital Multimeter, Testo 760-3

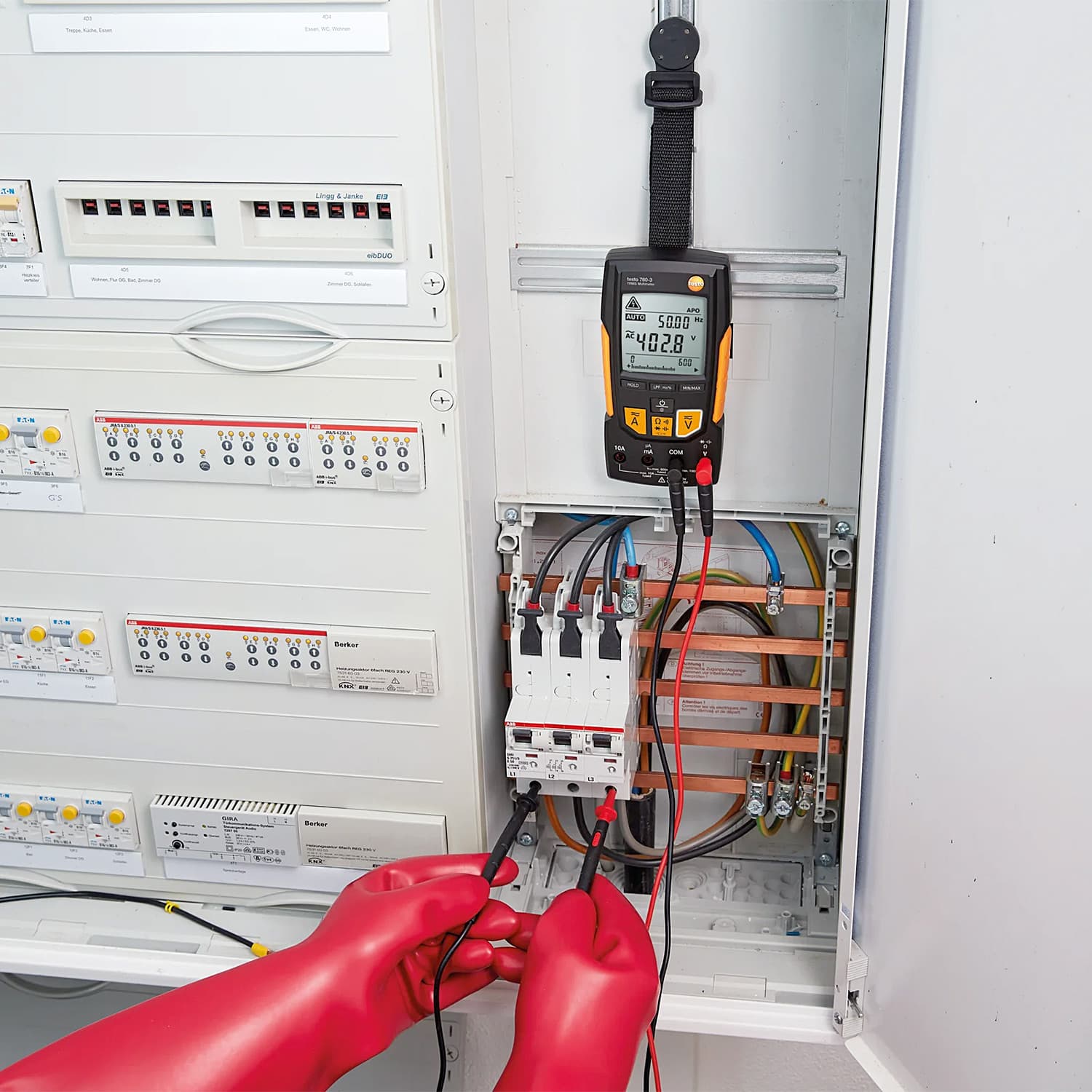

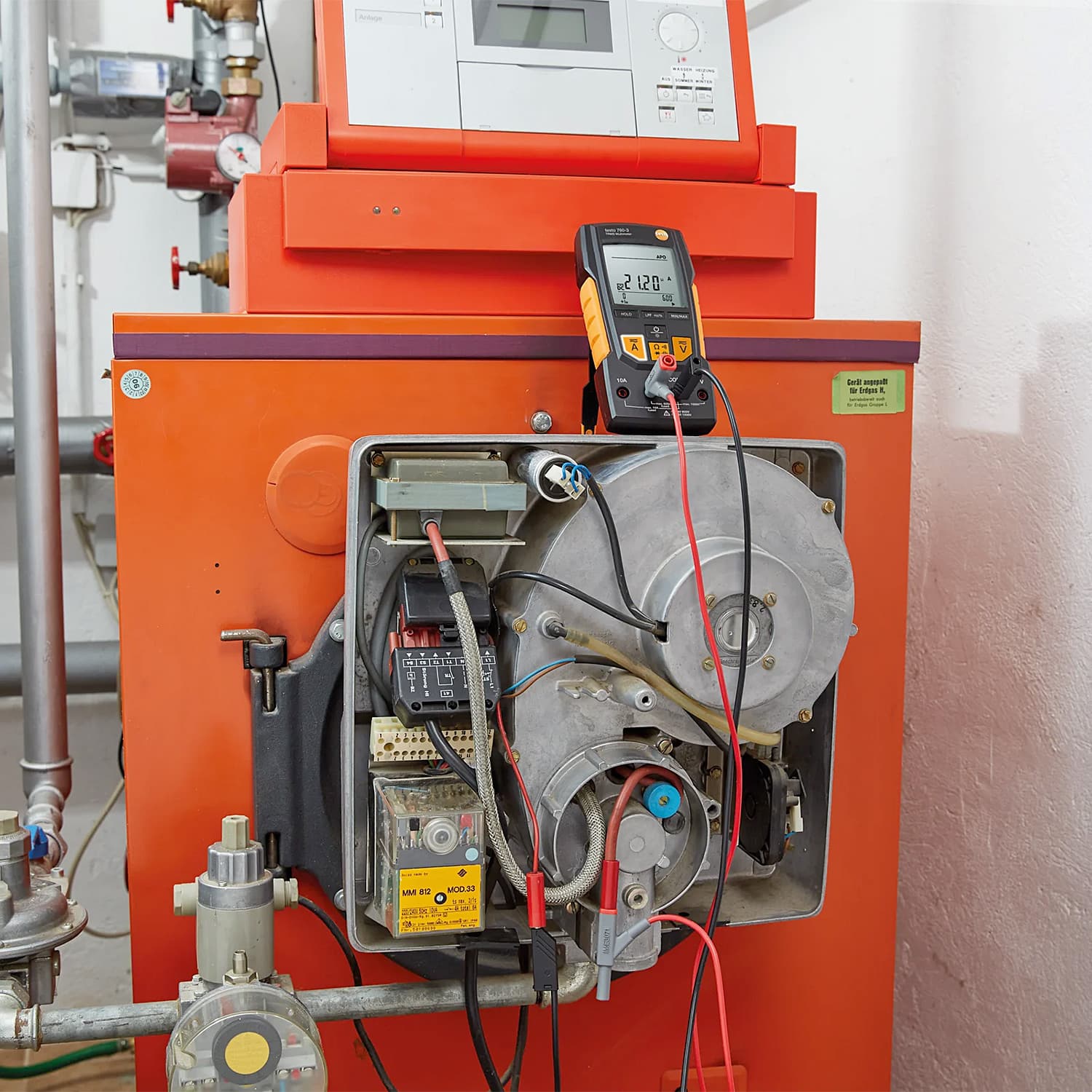

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings. A voltage range of up to 1,000 V, a frequency range of up to 60 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).

Features:

• Easy, reliable work thanks to automatic measurement parameter detection
• Comfortable, one-handed operation without any dial
• Voltage range up to 1,000 V
• Additional functions, such as true root mean square measurement - TRMS, low-pass filter and temperature adapter

Technical Data:

	Measuring range	Resolution	Accuracy
Temperature - TC Type K (NiCr-Ni)	-20 to +500°C	0.2°C	±1°C (0 to +100°C)
DC Voltage	0.1mV to 1000V	max. 0.1mV	± (0.8% of mv + 3 Digits)
AC voltage	0.1mV to 1000V	max. 0.1mV	± (1.0% of mv + 3 Digits)
DC Current	0.1μA to 10A	max. 0.1μA	± (1.5% of mv + 5 Digits)
AC Current	0.1μA to 10A	max. 0.1μA	± (1.5% of mv + 5 Digits)
Resistance	0.01Ohm to 60.00MOhm	max. 0.01Ohm	± (1.5% of mv + 3 Digits)
Capacitance	0.001nF to 60mF	max. 0.001nF	max. ± (1.5% of mv + 5 Digits)
Frequency	0.1Hz to 60.00MHz	max. 0.1Hz	± (0.1% of mv + 1 Digit)

Package Content:

• 1x TRMS Multimeter
• 3x AAA Micro Batteries

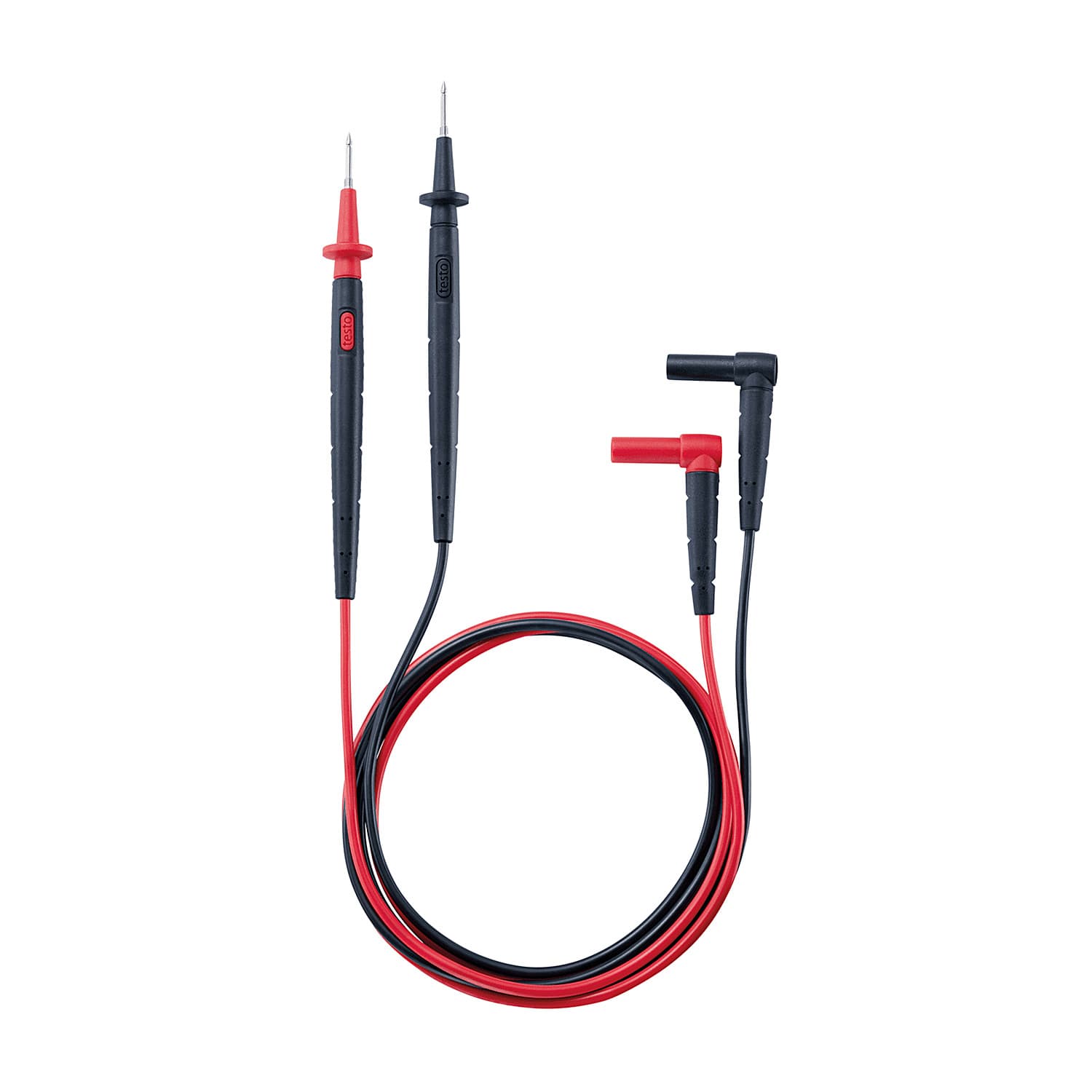

• 1 Set of measuring cables (0590 0010)
• Instruction Manual
