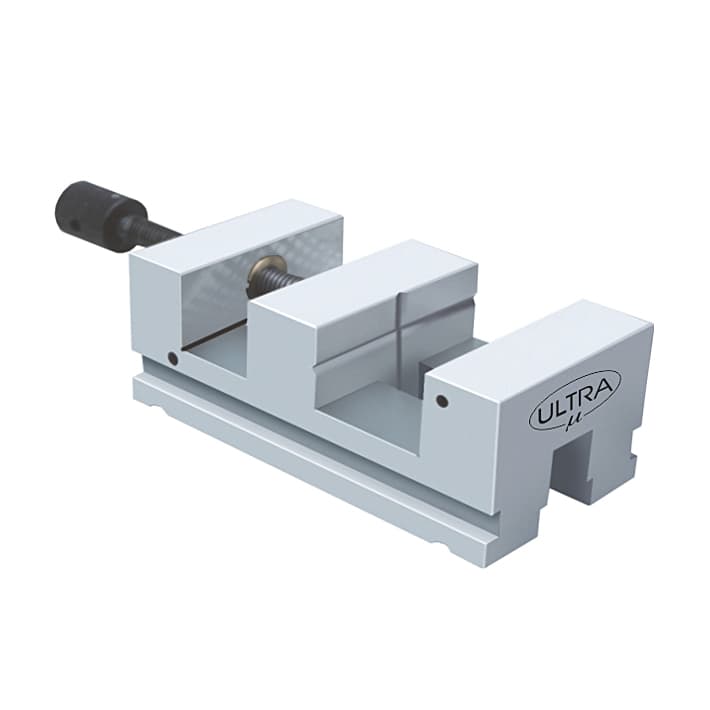

Ultra 150 x 50 x 50 mm Hardened & Ground Precision Grinding Vice (Screw Type), UL 31101
Roll over the image to zoom in
Key Features
- Product Type: Ground Precision Grinding Vice
- Length (mm): 150 mm
- Width (mm): 50 mm
- Height (mm): 50 mm
- Jaw Opening (mm): 0 - 70 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,558 (Incl. of all taxes)
₹8,100 + ₹1,458 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Ultra Precision CatalogueNot available
Download Ultra Precision CatalogueNot available
Highlights
- Used for holding the jobs, right-angle grinding & Light machining.
- Hardness 60 ± 2 RC & Tempered
- Wear Plate at the bottom to prevent lifting of Jaw
- Clamping screw with square thread & gun metal nut
- Tenon at bottom to allow easy alignment with machine bed
- Special size can be Manufactured on request.
- We also manufacture stainless steel grinding vice.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 150 mm |
|---|---|
| Width (mm) | 50 mm |
| Height (mm) | 50 mm |
| Jaw Opening (mm) | 0 - 70 mm |
| Jaw Height (mm) | 22 mm |
| Series | UL-311 |
| Accuracy for Flatness & Parallelism | 0.010 mm / 200 mm |
| Accuracy for Squareness | 0.012 mm |
| Material | High Quality Alloy Steel |
