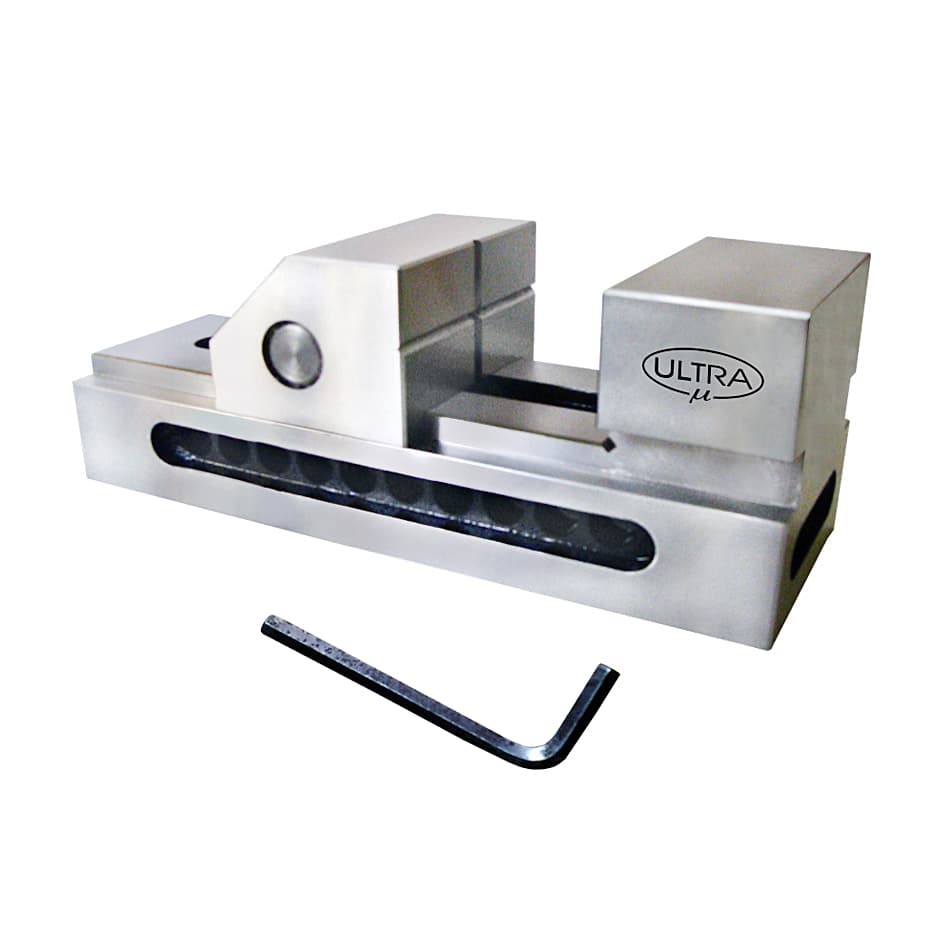

Ultra 180 x 63 x 70 mm Hardened & Ground Precision Grinding Vice, UL 31002
Roll over the image to zoom in
Key Features
- Product Type: Ground Precision Grinding Vice
- Length (mm): 180 mm
- Width (mm): 63 mm
- Height (mm): 70 mm
- Jaw Opening (mm): 0 - 90 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,974 (Incl. of all taxes)
₹9,300 + ₹1,674 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Ultra Precision CatalogueNot available
Download Ultra Precision CatalogueNot available
Highlights
- Tempered
- Used for holding the jobs, spark erosion operation, right-angle grinding & Light machining.
- Jaw pressure on work piece is forward & downward for repeatable positioning & maximum holding power.
- All sides can be used as reference.
- "V" on moveable jaw for better gripping of round jobs.
- We also manufacture stainless steel grinding vice.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 180 mm |
|---|---|
| Width (mm) | 63 mm |
| Height (mm) | 70 mm |
| Jaw Opening (mm) | 0 - 90 mm |
| Series | UL-310 |
| Accuracy for Flatness & Parallelism | 0.010 mm / 200 mm |
| Accuracy for Squareness | 0.012 mm |
| Hardness Rockwell | 60±2 HRC |
| Material | High Quality Alloy Steel |
