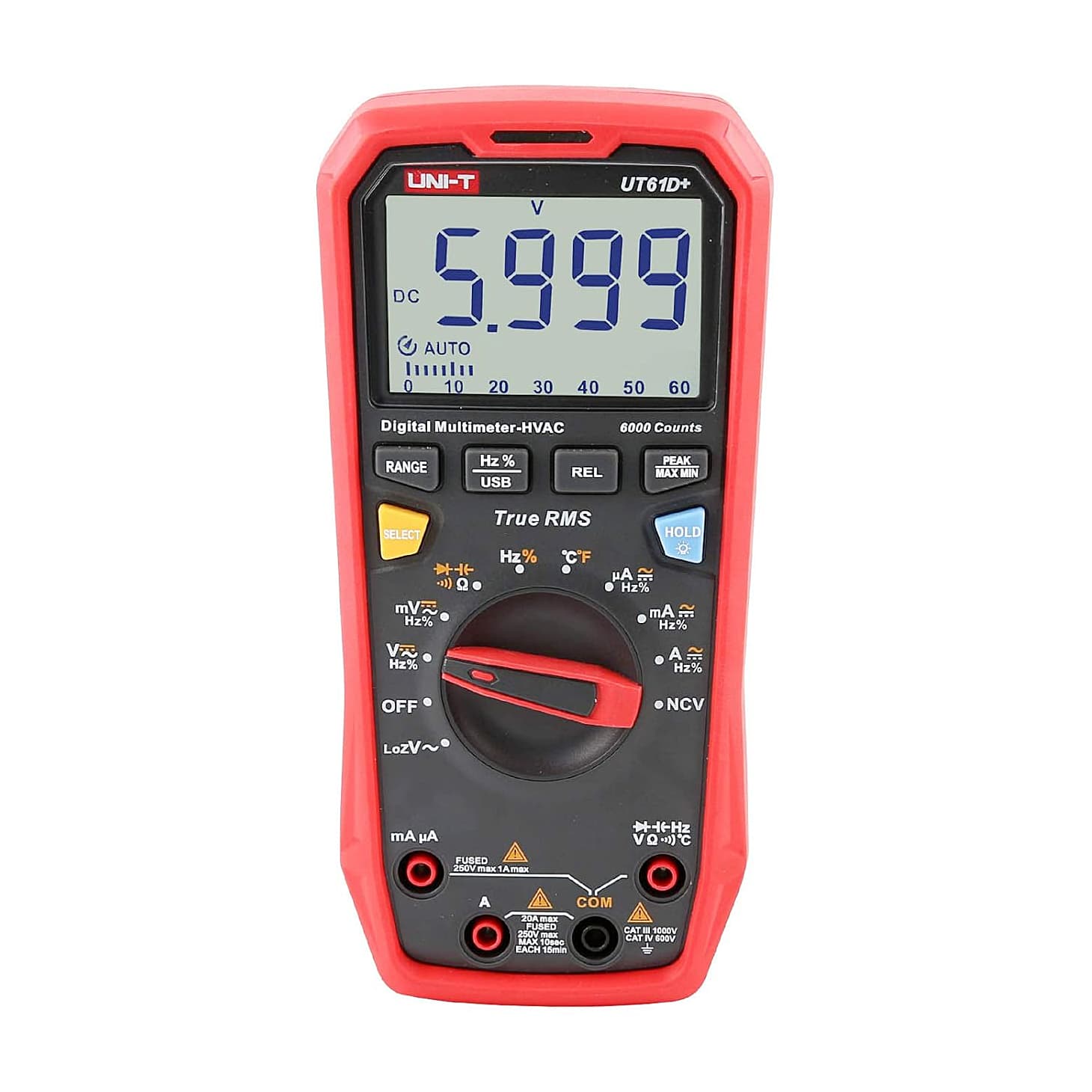

UNI-T 6000 Count True-RMS Digital Multimeter (HVAC), UT61D+

UT61D+ are reliable true RMS digital multimeters with display counts 6000. It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

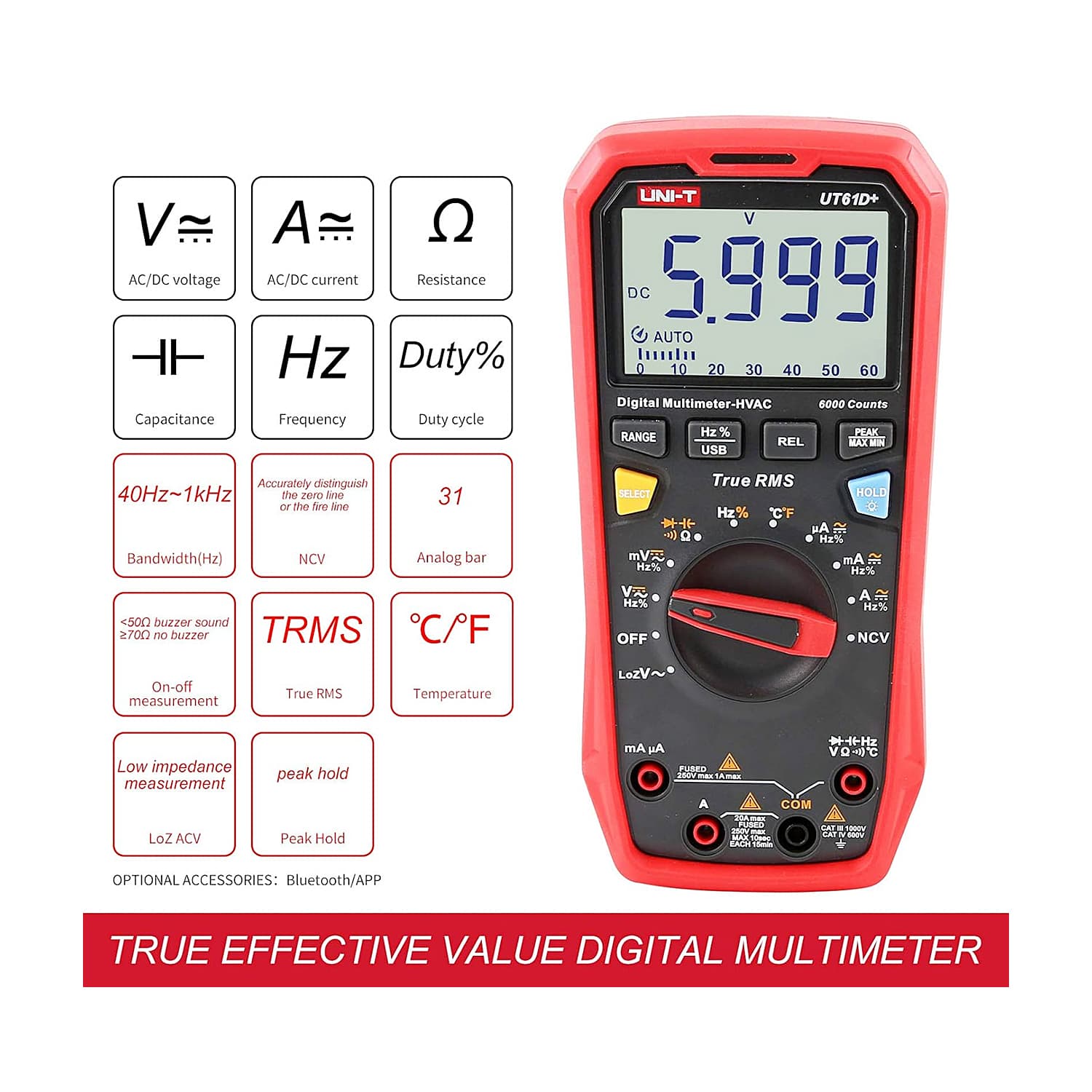

Features:

• True RMS

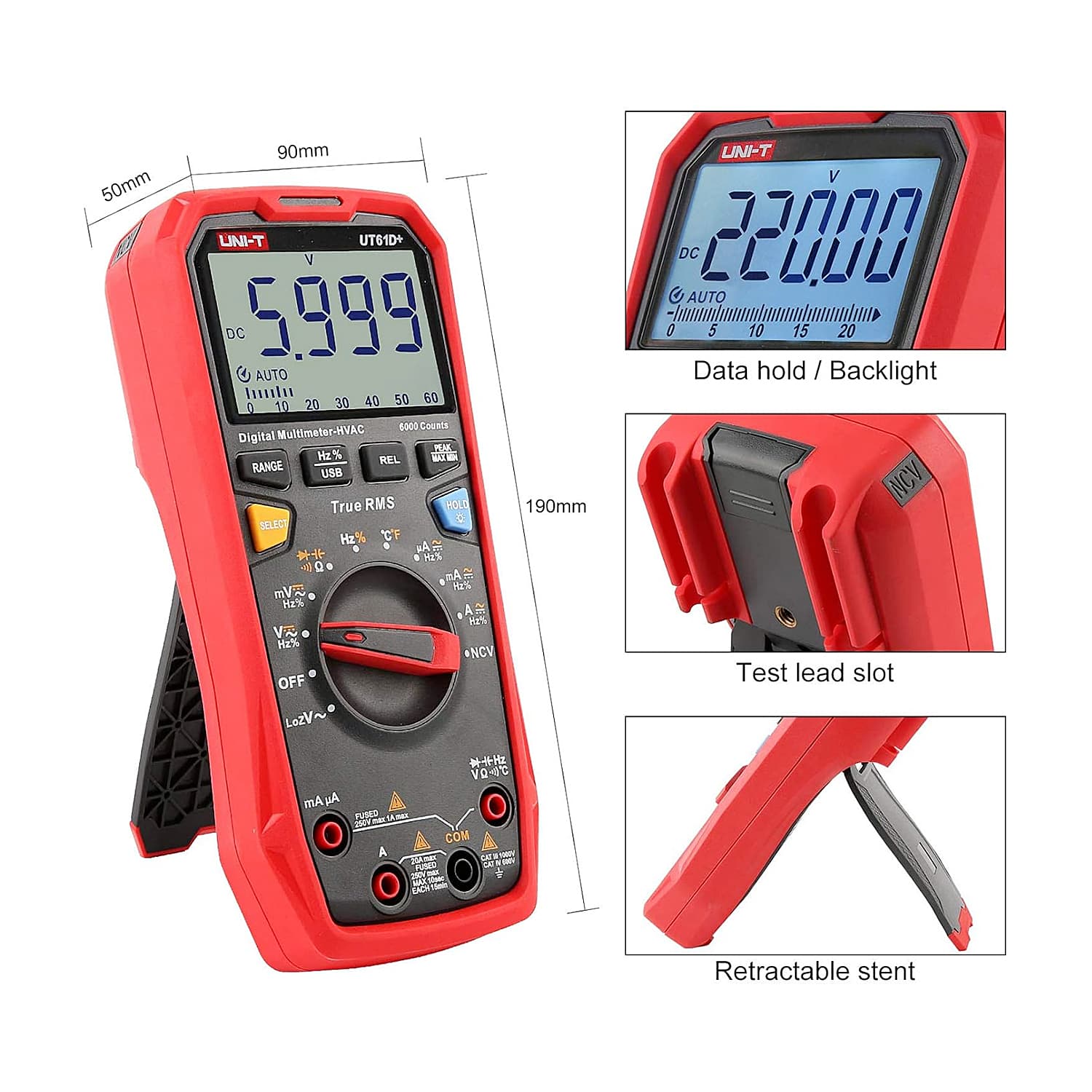

• Data hold / backlight
• Max / Min / Relative mode
• USB communication
• Input protection
• Diode / continuity test
• NCV (Audible / Visual alarm)
• LoZ ACV
• Peak Hold

Technical Data:

Specifications	Range	Accuracy
AC voltage (V)	1000V	±(1%+3)
DC voltage (V)	1000V	±(0.5%+3)
AC current (A)	20A	±(1.2%+5)
DC current (A)	20A	±(1%+2)
Resistance (Ω)	60MΩ	±(1%+2)
Capacitance (F)	60mF	±(3%+5)
Frequency (Hz)	10MHz	±(0.1%+4)
Duty cycle (%)	0.1% - 99.9%	±(2%+5)
Temperature (°C / °F)	-40°C ~ 1000°C	±(1%+3)
-40°F ~ 1832°F	±(1%+6)

Package Content:

• 1x TRMS Digital Multimeter
• 4x 1.5V battery (R03)
• Gold plated test leads
• USB cable
• Temperature probe
• English manual
