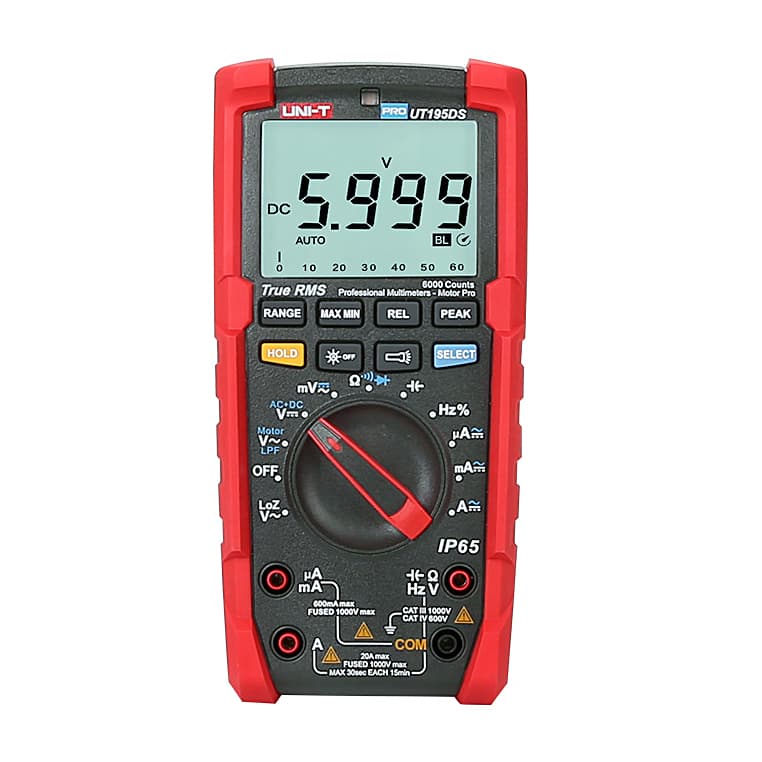

UNI-T 6000 Pro Count True-RMS Professional Digital Multimeter (Motor Pro), UT195DS

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.

Features:

• IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
• Large 6000-count LCD screen
• True RMS
• ACV 750V 5kHz bandwidth
• Flashlight
• Auto LCD backlight controlled by light sensor (can be turned off)
• LoZ voltage test, for ghost voltage measurement
• 20A current measurement (max 30 seconds)
• 31 analog bar
• 3-phase motor sequence test
• Low pass filter
• Auto/Manual range
• Continuity buzzer
• Low battery indication / Data hold / Auto power off
• MAX/MIN
• Function selection
• Peak hold

Technical Data:

Specifications	Range	Accuracy
DC voltage (V)	1000V	±(0.5%+3)
AC+DC	750V	±(0.7%+3)
AC voltage (V)	600V	±(1.5%+4)
LoZ ACV	600V	±(2%+3)
DC current (A)	20A	±(0.8%+3)
AC current (A)	20A	±(1%+3)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance	60mF	±(3%+5)
Frequency	60Hz~40MHz	±(0.1%+4)
Duty cycle	0.1%~99.9%	±(2%+5)

Package Content:

• 1x TRMS Digital Multimeter
• 1x 9V Battery
• Test probes,
• Carrying bag,
• Point contact temperature probe (UT195M)
