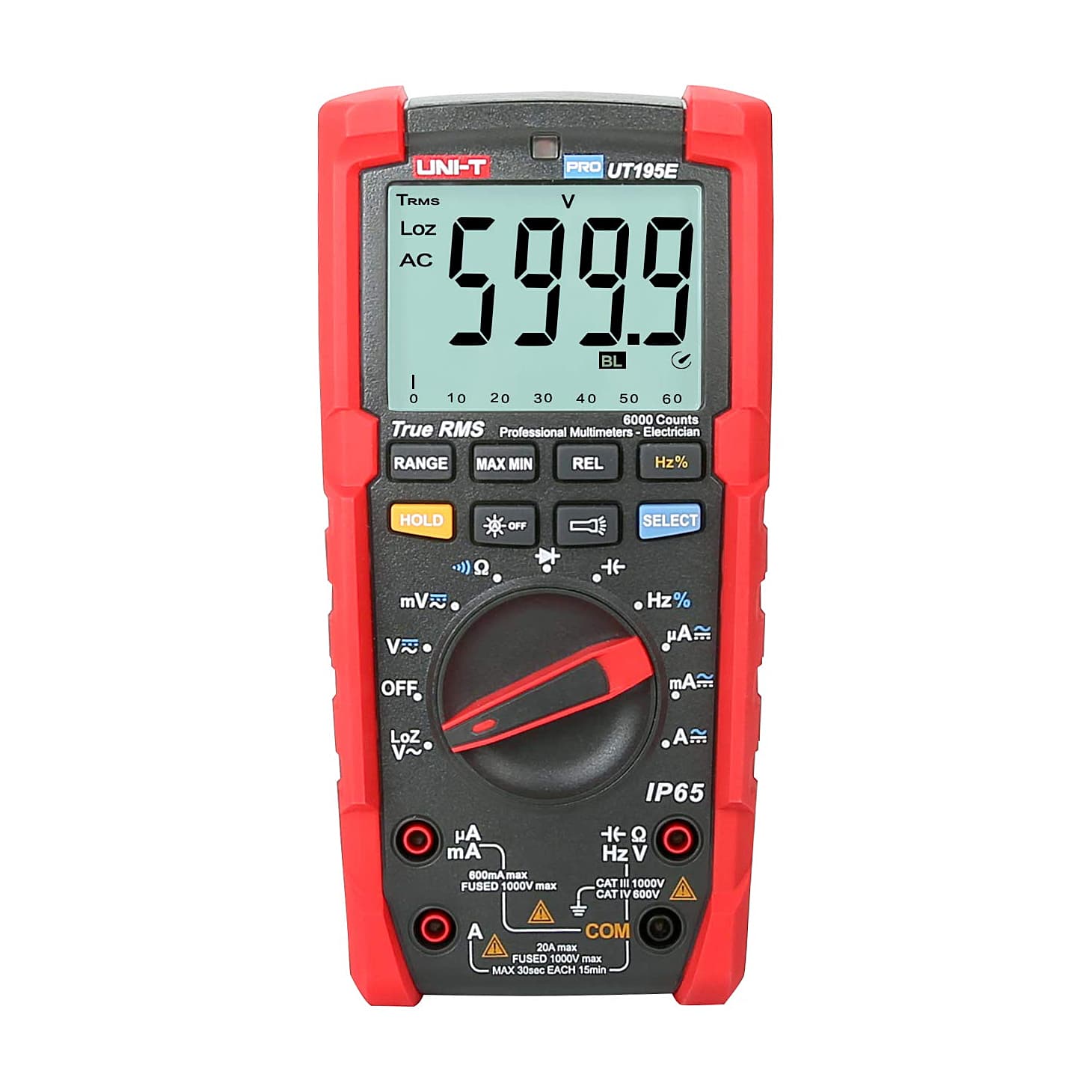

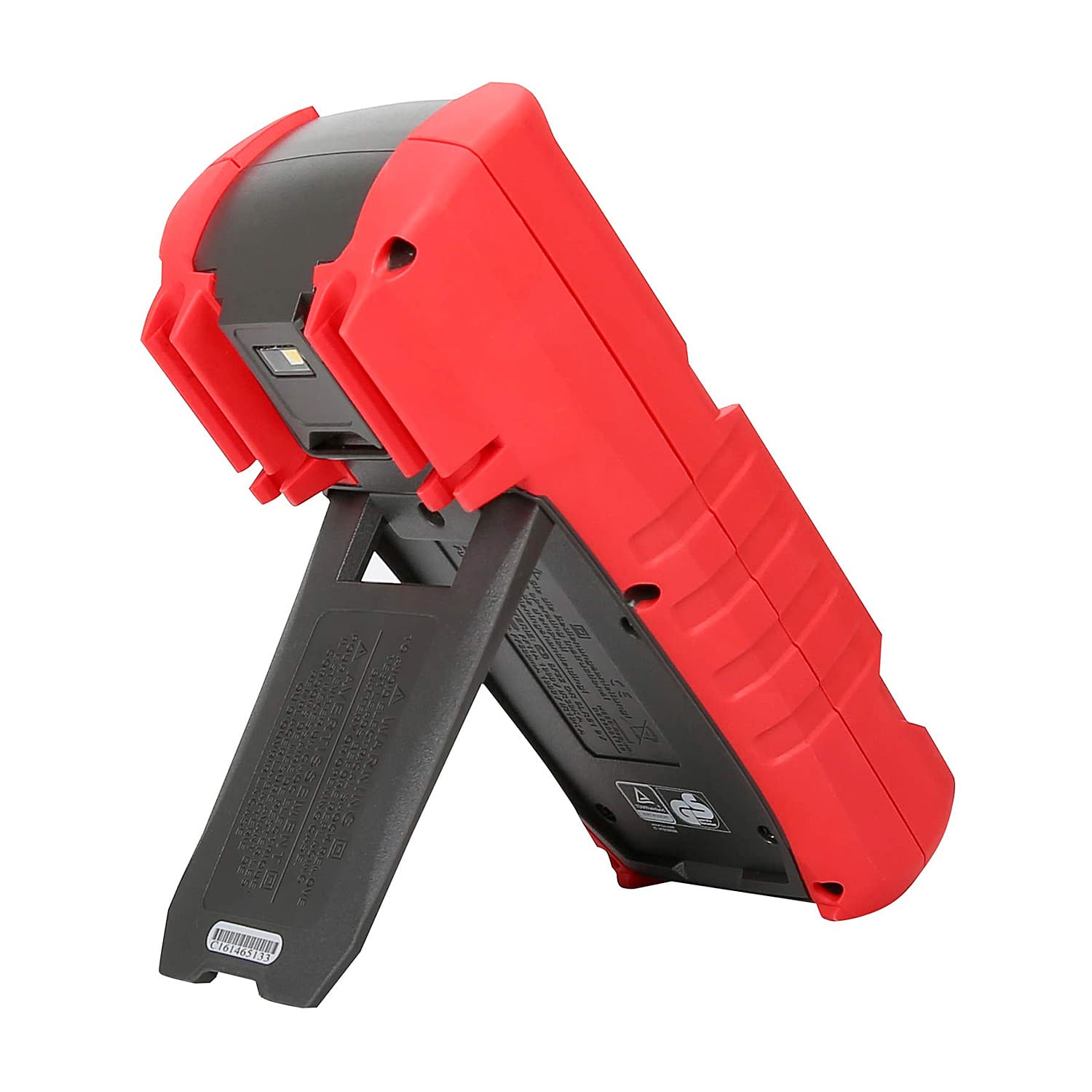

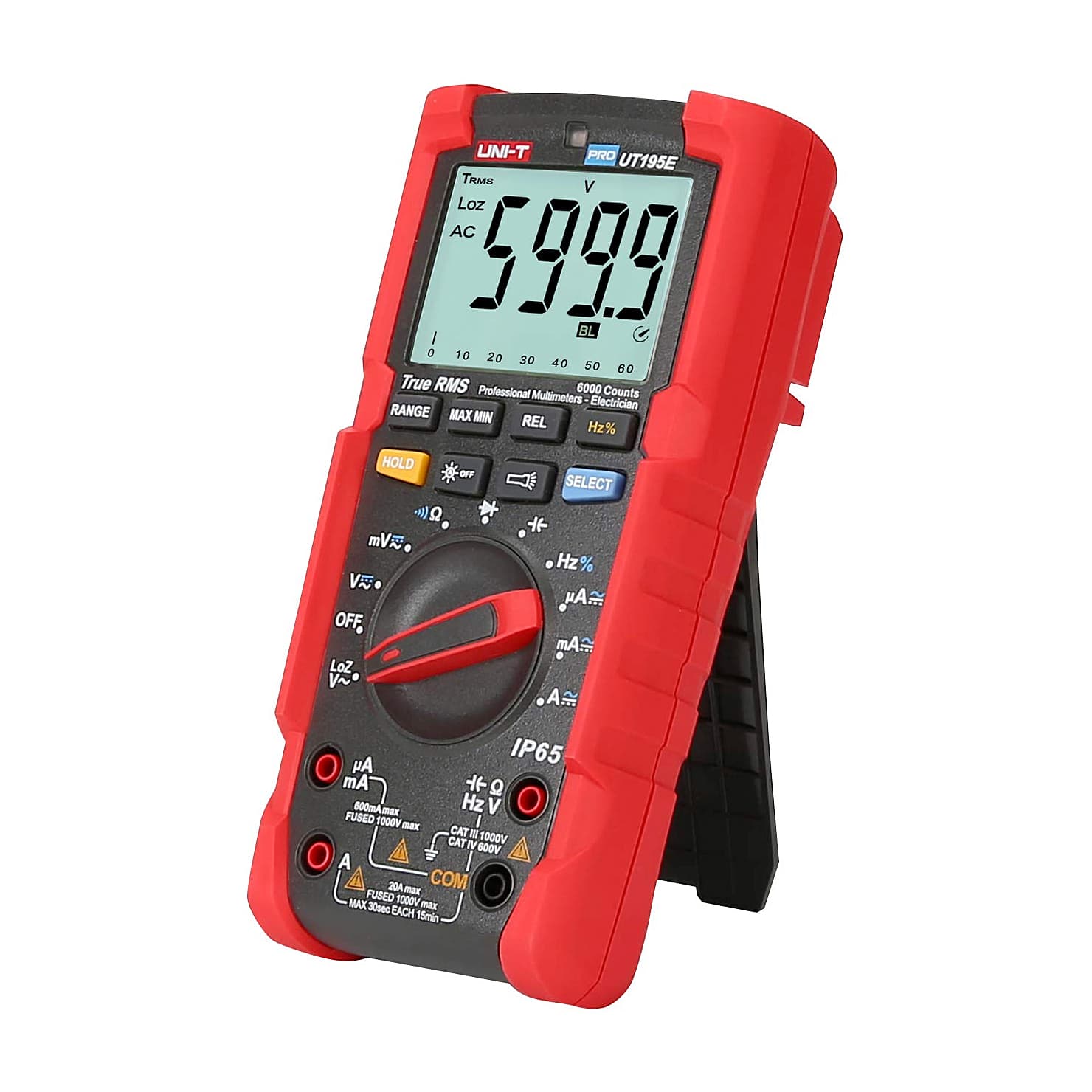

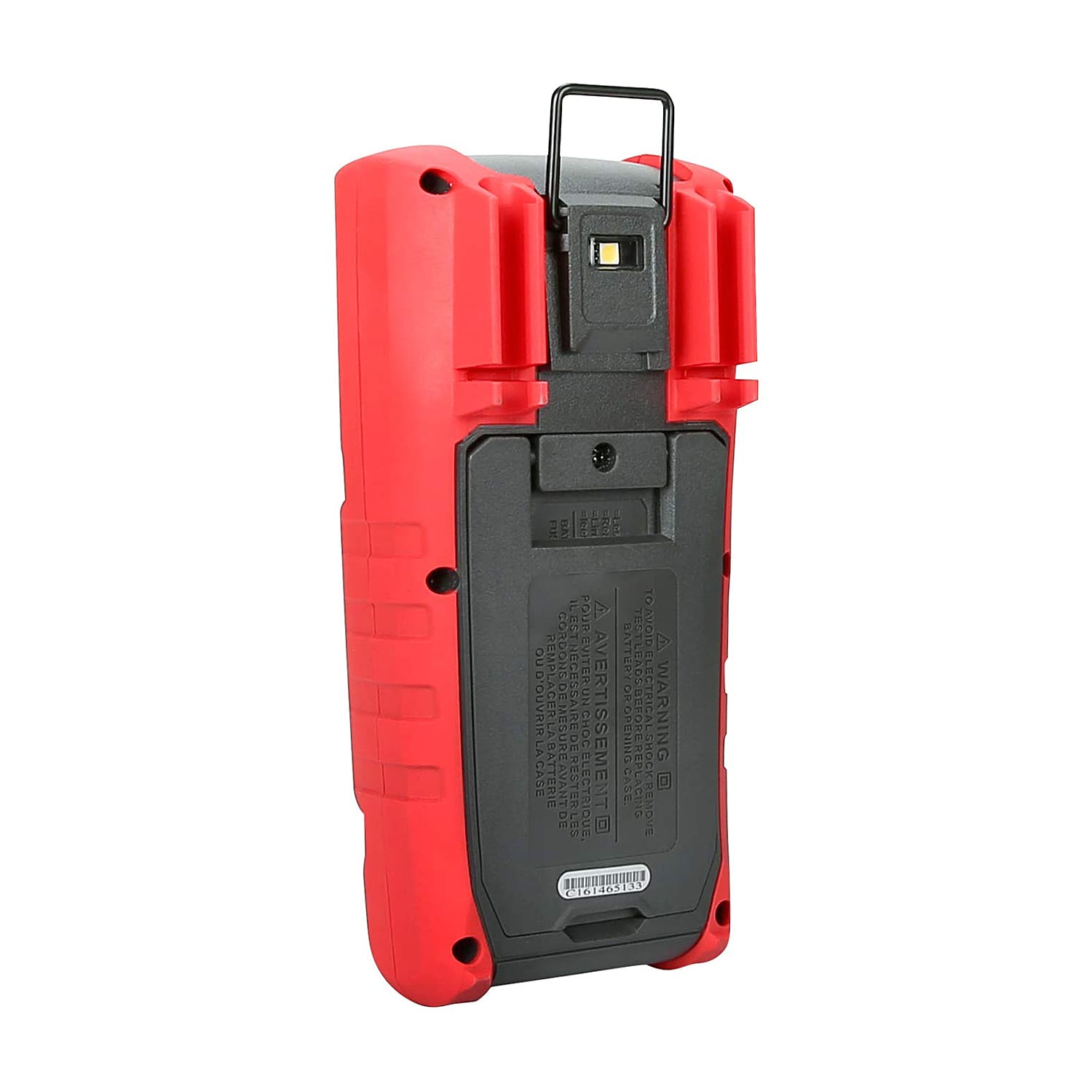

UNI-T Pro 6000 Count True-RMS Professional Digital Multimeter (HVAC & Motor), UT195M

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.

Features:

• IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
• Large 6000-count LCD screen
• True RMS
• ACV 750V 5kHz bandwidth
• Flashlight
• Auto LCD backlight controlled by light sensor (can be turned off)
• LoZ voltage test, for ghost voltage measurement
• 20A current measurement (max 30 seconds)
• 31 analog bar
• 3-phase motor sequence test
• Auto/Manual range
• Continuity buzzer
• Low battery indication / Data hold / Auto power off
• MAX/MIN
• Function selection

Technical Data:

	Range	UT195M
DC voltage (V)	1000V	±(0.5%+3)
AC+DC	750V	±(0.7%+3)
LoZ ACV	600V	±(2%+3)
DC current (A)	20A	±(0.8%+3)
AC current (A)	20A	±(1%+3)
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance	60mF	±(3%+5)
Frequency	60Hz~40MHz	±(0.1%+4)
Temperature (°C)	-40°C~1000°C	±(1.5%+4)
Temperature (°F)	-40°F~1832°F	±(2%+5)

Package Content:

• 1x TRMS Digital Multimeter
• 1x 9V Battery
• Test probes,
• Carrying bag,
• Point contact temperature probe (UT195M)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
