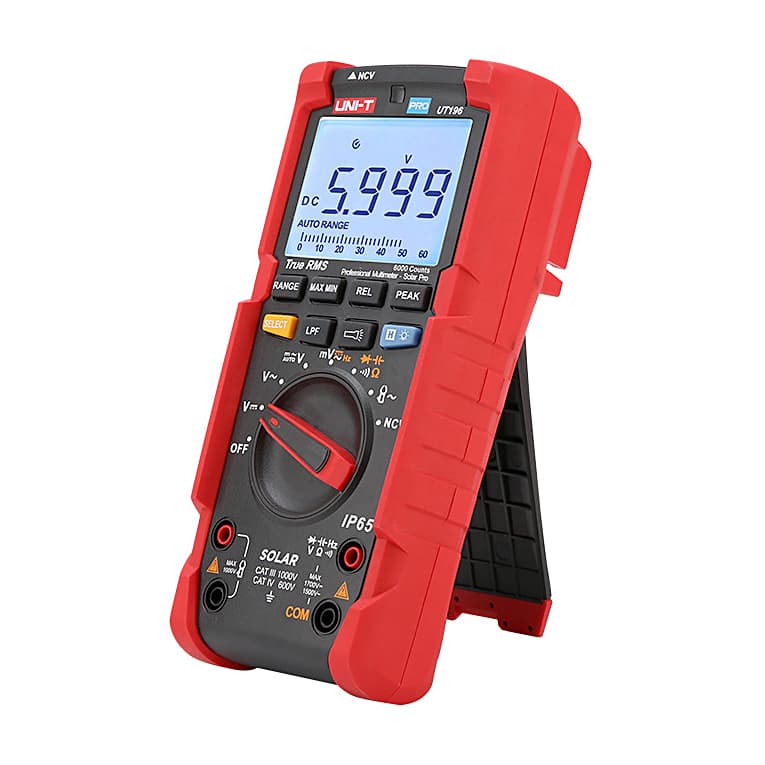

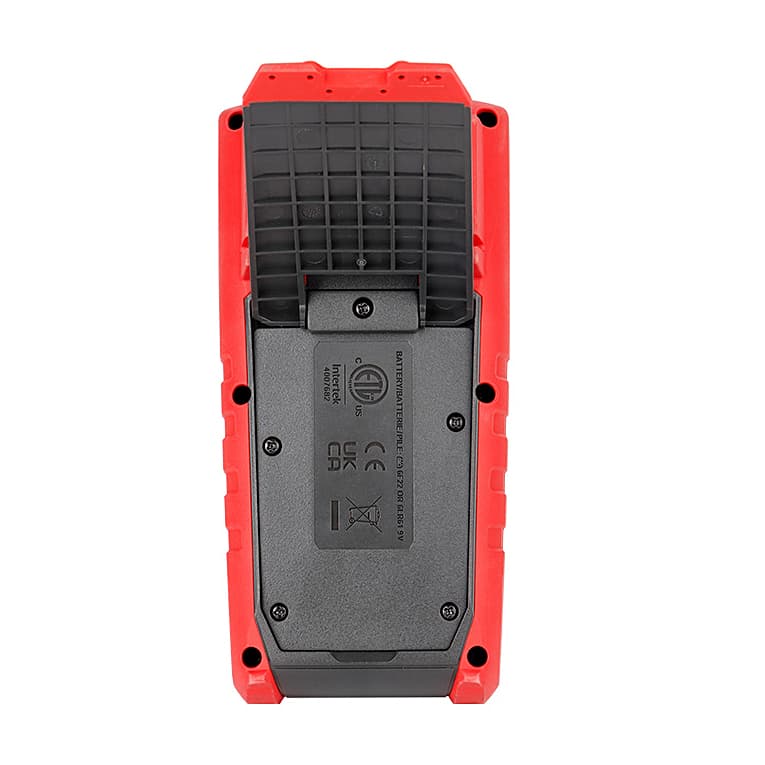

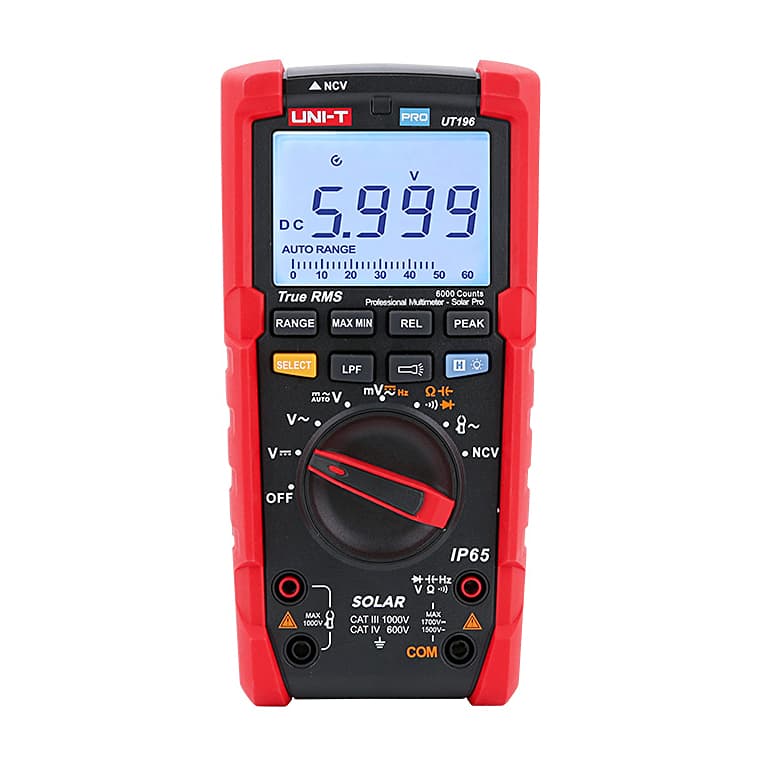

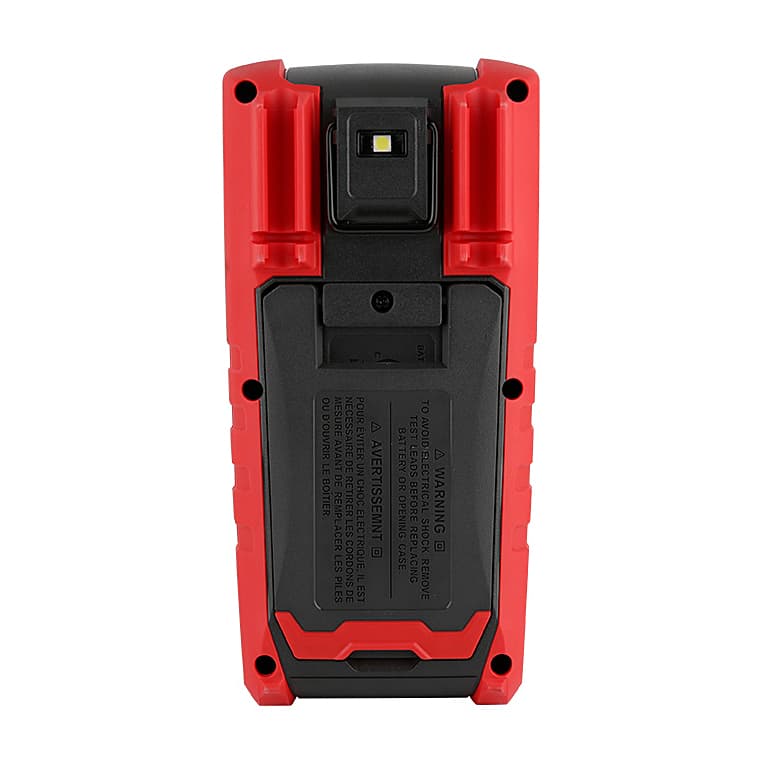

UNI-T Pro 6000 Count True-RMS Solar Digital Multimeter, UT196

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well. UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.

Features:

• True RMS
• Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
• Analog bar graph
• Low-pass filter function
• Low impedance mode
• Built-in flashlight, bright backlight and visual alarm
• Dual display, Auto range, NCV, Diode test
• Continuity, Relative mode, Max/Min, Peak hold
• Audible visual indication, Data hold

Technical Data:

	Range	Accuracy
DC voltage(V)	1700V	±(0.2%+5)
AC voltage(V)	1500V	±(0.8%+3)
Frequency (Hz)	1MHz	±(0.08%+4)
Resistance(Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	60mF	±(1.9%+5)

Package Content:

• 1x TRMS Solar Digital Multimeter

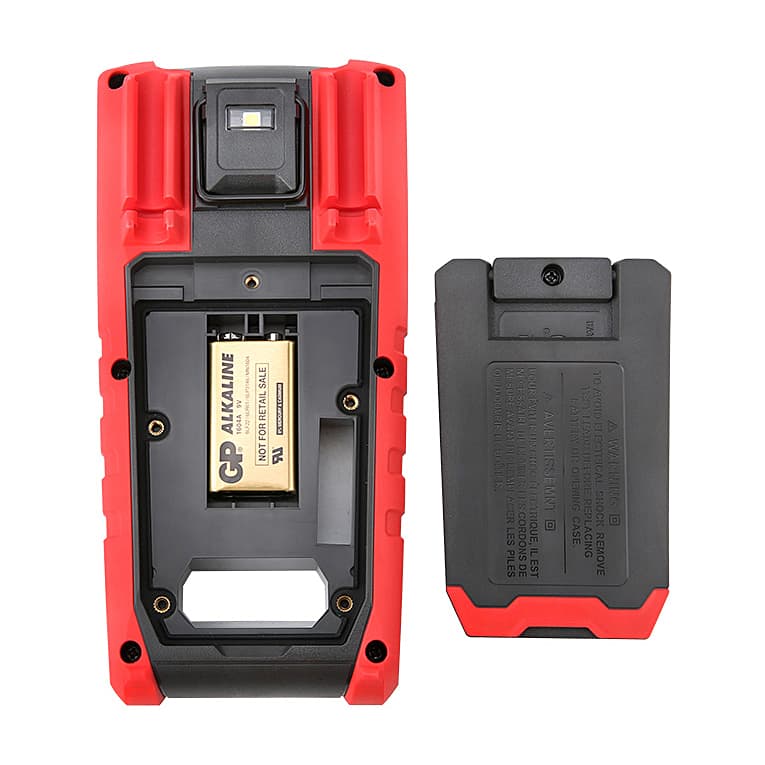

• 4x 9V Battery
• Test Leads
• 1x English manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
