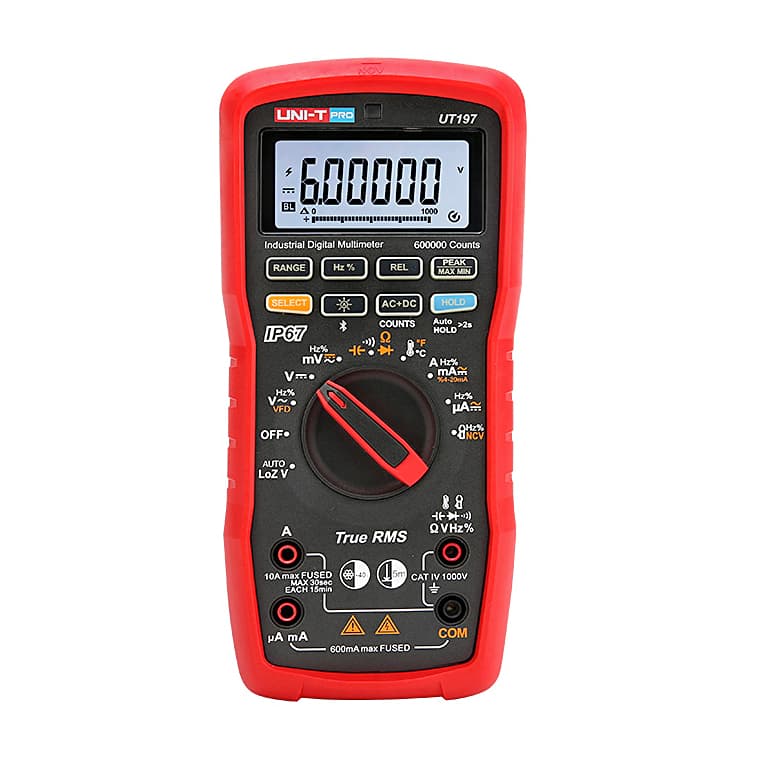

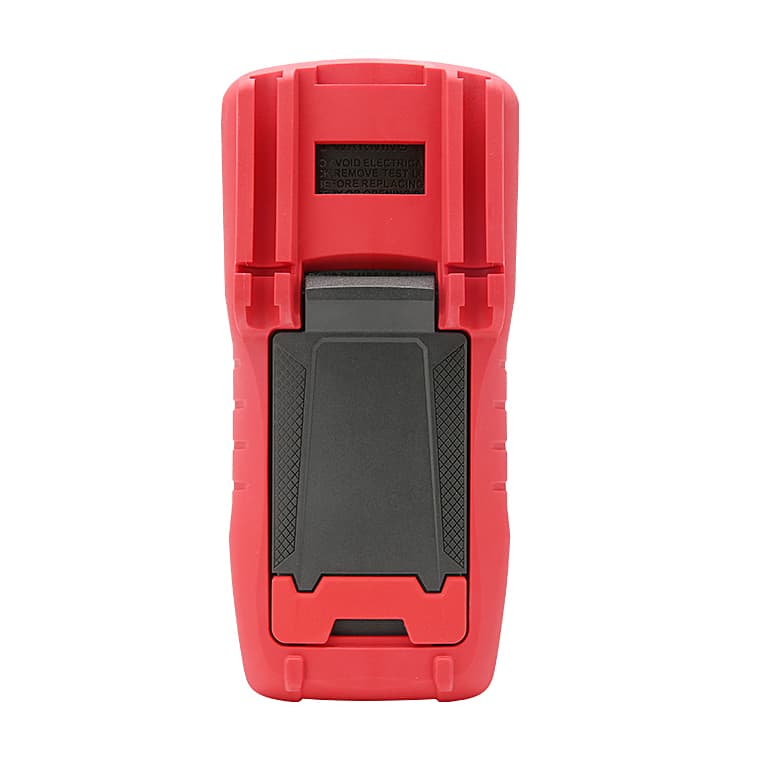

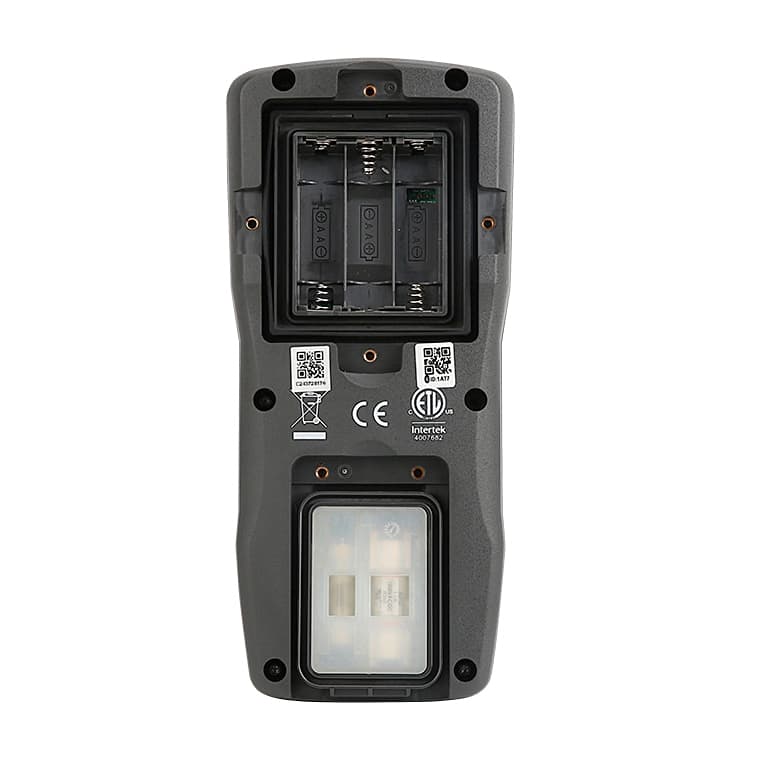

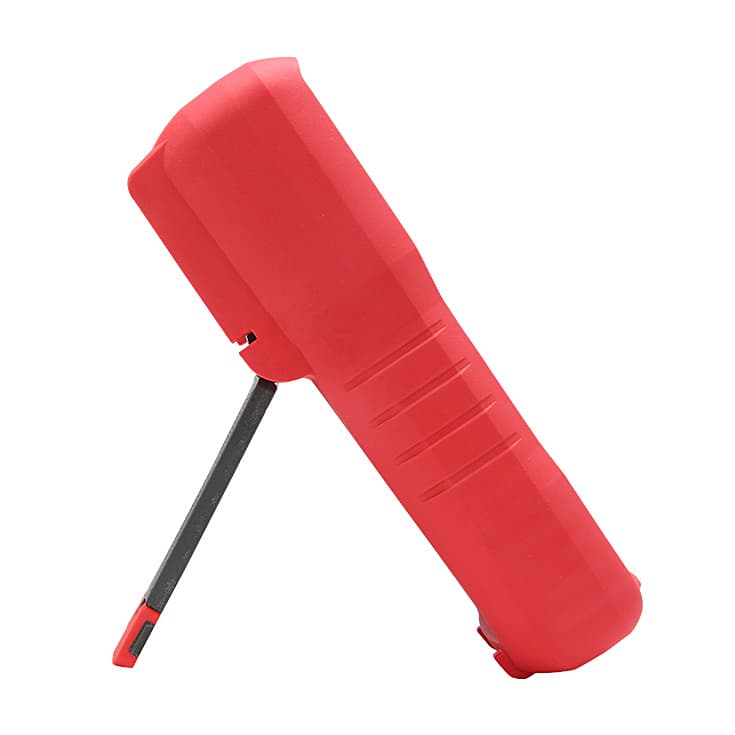

UNI-T Pro 600000 Count True-RMS Industrial Digital Multimeter, UT197

The UT197 is a high – precision true RMS handheld digital multimeter with 600,000 – count display. It has IP67 protection, can endure 5m drops, and operates in – 40°C~55°C, suiting harsh outdoor conditions. Its built – in VFD anti – interference startup mode filters out carrier – frequency and distorted – voltage interferences for stable inverter measurements. The 1000A AC/DC current measurement (UT – CS07) with Bluetooth enables result recording via UNI – T SmartTest APP, generating graphs and tables. Certified to CAT IV 1000V safety level (CE, cETLus), it’s widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new – energy, factory, and laboratory applications.

Features:

• True RMS measurement
• AC/DC voltage: 1000V
• AC/DC current: 10A
• Display count: 600,000 & switchable; 9,999(Hz)
• 12kV pulse protection & anti-EMC interference
• IP67 & 5m Drop Protection
• Overvoltage category: CAT IV 1000V
• Working environment: -40 °C ~ 55 °C
• Input terminal visible alarm
•  Automatically backlight
• Bluetooth function
• Support UT-CS06A/UT-CS09D current sensor

Technical Data:

Specification	Range	Accuracy
AC Current (A)	600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.0000A / 10.000A	±(0.5%+50)
DC Current (A)	600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.0000A / 10.000A	±(0.1%+20)
AC+DC Current (A)	600.0uA / 6000uA / 60.00mA / 600.0mA / 6.000A / 10.00A	±(1.0%+5)
AC Voltage (V)	600.00mV / 6.0000V / 60.000V / 600.00V / 1000.0V	±(0.3%+20)
Voltage (DCV) (60000 count)	600.00mV / 6.0000V / 60.000V / 600.00V / 1000.0V	±(0.03%+5)
Voltage (DCV) (600000 count)	600.000mV / 6.00000V / 60.0000V / 600.000V / 1000.00V	±(0.015%+10)
Auto AC/DC Voltage	600.0V	±(0.8%+5)
Voltage Range (ACV+DCV)	600.0mV / 6.000V / 60.00V / 600.0V / 1000V	±(0.8%+5)
Externalcurrent (DC) (Optional: UT-CS07)	100.0A(10mV/A / 1000A 1V/A)	±(1.5%+5)
Externalcurrent (AC) (Optional: UT-CS07)	100.0A(10mV/A / 1000A 1V/A)	±(1.5%+5)
Frequency (Hz)	10Hz~1MHz	±(0.002%+5)
Resistance (Ω)	600.00Ω / 6.0000kΩ / 60.000kΩ / 600.00kΩ / 6.0000MΩ / 60.00MΩ	±(0.07%+2)
Capacitance (F)	60.00nF / 600.0nF / 6.000μF / 60.00μF / 600.0μF / 6.000mF / 60.00mF	±(0.8%+3)
Temperature (°C)	-40°C ~ 1000°C	±(1.0%+15)
Temperature (°F)	-40°F ~ 1832°F	±(1.0%+30)
Duty Cycle (%)	10Hz~10kHz (10%~90%)	±(1.2%+5)

Package Content:

• 1x TRMS Industrial Digital Multimeter
• 2x 1.5V AA Battery
• Test lead,
• Temperature probe,
• Clips
