- Autocheck V & Ω
- EF-Detection (NCV)
- Crest Mode (Peak Hold), Data Hold function
- 24 Segments Analog Bar-graph
- Backlight LCD Display
- Autoranging Relative Zero Mode
- Auto-ranging MAX/MIN record
- Wrong Input (Test Lead) warning detection (w.r. t. Switch Position)
- Auto Power Off
- Low Battery Indication
- PC interface (Optional)
- Diode & Continuity Test
- Update Rate - Fast Data: 5 per second nominal 24 Segments Analog Bar-graph: 40/second
- Relative Humidity: Maximum relative humidity is 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
- Temperature Coefficient: nominal 0.15 x (specified accuracy)/°C @ (0°C~18°C or 28°C~40°C), or otherwise specified.
Safety:
- Double insulation per IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. & CAN/CSA C22.2 No. 61010.1-0.92 to Category II 1000V, CAT III 600V and CAT IV 300V AC & DC.
- E. M. C: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m : Capacitance function is not specified. Other function ranges: Total Accuracy = Specified Accuracy + 100 digits Performance above 3V/m is not specified.
- Transient Protection: 6.5kV lightning surge (1.2/50µs)
- Terminals (to COM) Measurement Category: V - CAT II 1000 Volts and CAT III 600V and CAT IV 300 Volts AC & DC. / mAµA: CAT III 500 Volts AC and 300 Volts DC. / A: CAT III 600 Volts AC and 300 Volts DC.
- Overload Protections: µA & mA - 0.63A / 500VAC, IR 150kA, @500V AC / A: 10A / 600VAC, IR 100kA, @600VAC / V: 1050 Vrms, 1450V peak / AutoCheck, mV, Ω & Others : 600Vrms
Package Content:

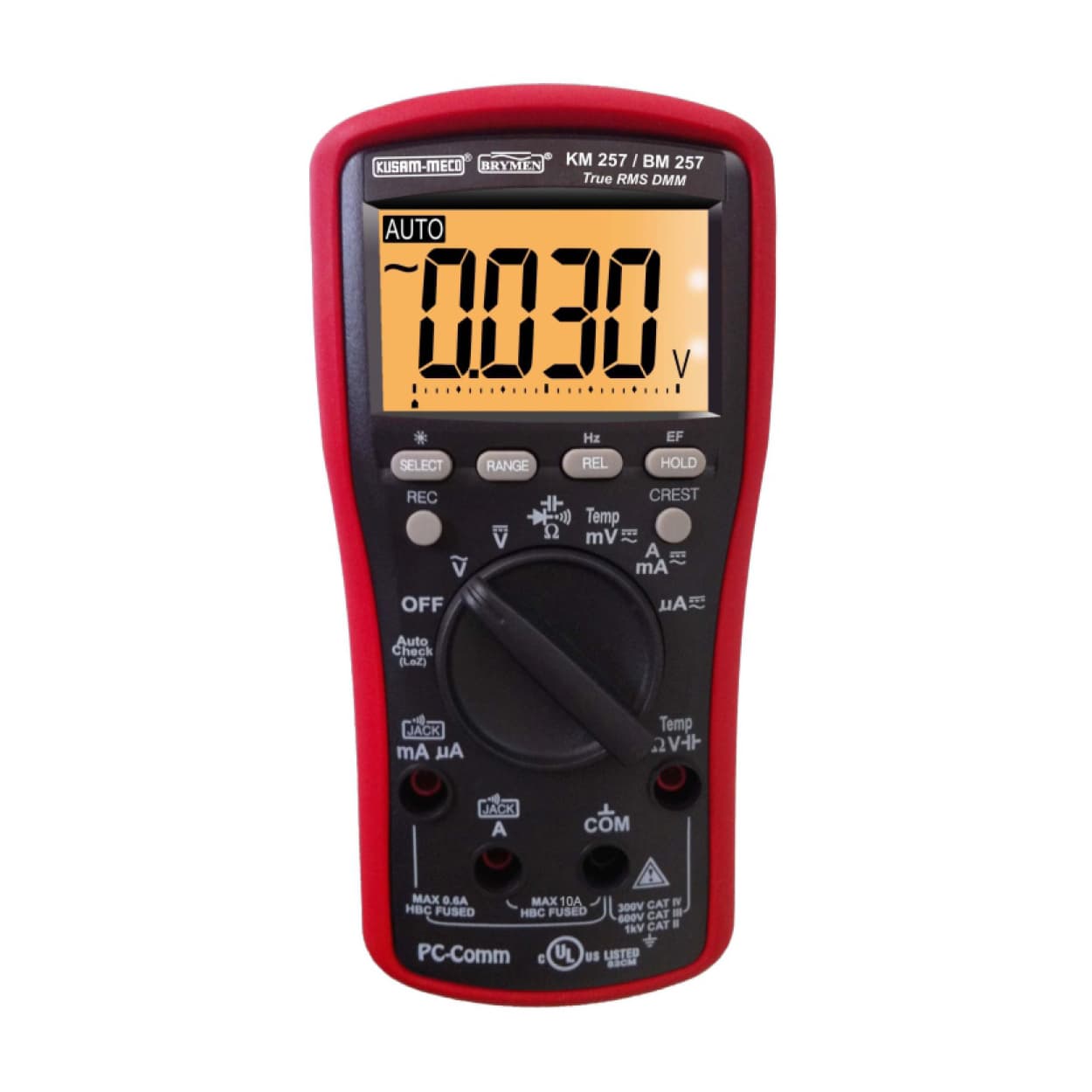

- Digital Multimeter
- Test leads pair
- Carrying Case
- Batteries installed
- User's Manual
- Banana plug K-Type Thermocouple
