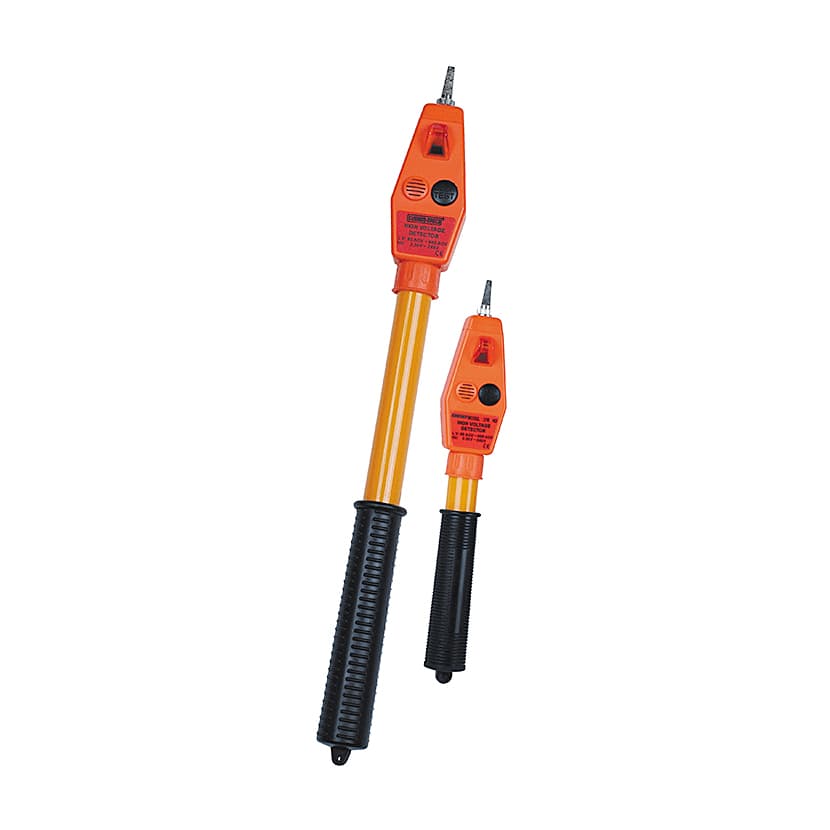

The detector detects the presence of voltage from 80V ~ 600V & 3KV ~ 24KV in AC lines. An elongated insulation rod permits the checking of high-tension circuits at a safe distance for voltage. The equipment is compact, lightweight, and easy to handle, and is also available for voltage detection in low-tension circuits..
Features:
- Telescopic, Compact, light-weight and handy
- High-voltage detection: The equipment, whether in stretched state is available for voltage detection in high-tension circuits (3.3kV, 6.6kV & 24KV) whether the wires involved are naked or insulated.
- Low Voltage Detection: The equipment can be used for voltage detection in low-tension circuits (80V ~ 600V) by holding the nameplate portion of the detecting head. Before-use check can easily be done by plugging in an AC 100V plug socket, without using a tester.
- Easy to recognize indication: Intermittent lighting in red of a high-intensity light-emitting diode and intermittent audible sound of an electronic buzzer are readily recognizable at a full daylight, noisy location.
- Waterproof: The detecting head, being tightly enclosed, is free from any trouble due to dust, dirt, or water.
- Working Voltage Range - H.V: 3kV ~ 24kV AC (Hold grip portion to detect) / L.V: 80V ~ 600V AC. (Hold the nameplate portion to detect)
- Operation Test (Initial Voltage): When stretched, hold the grip portion. Put the sensing tip in contact with the voltage: 250V AC ± 50V the LED and buzzer should work. / When retracted, hold the nameplate portion. Put the sensing tip in contact with the voltage: 80V AC or below the LED and the buzzer should work.
- Operation start distance: Distance at which operation starts when front metal is brought near dia 5mm O. C. Wire with grip portion held by hand. Where 24 kV / dia 3mm (voltage to ground) @ 20 cm. Where 6.6 kV / dia 3mm (voltage to ground) @ 3 cm. Where 3.3 kV / dia 3mm (voltage to ground) @ 1 cm.
- Dielectric Strength: Between Sensing tip ~ Grip portion : 50kV AC, 1 min(The detector has to be stretched) / Between Sensing tip ~ Nameplate portion : 4kV AC, 1 min
- Construction: Waterproof (detecting head impervious to water).
- Insulation resistance: Between Sensing tip ~ Grip portion: (The detector has to be stretched) The insulation resistance is more than 2000MΩ @1KV
- Between Sensing tip ~ Nameplate portion: The insulation resistance is more than 2000MΩ @1KV
- Leakage Current Test: Put high voltage on the parts listed below Between the Sensing tip ~ Grip portion: 50kV AC, 1 min(The detector has to be stretched) The leakage current has to be 100μA or less than 100μA. Between Sensing tip ~ Nameplate portion: 4kV AC, 1 min. The leakage current has to be 100μA or less than 100μA.
Safety:
- Meets EN61010-1 EN50081-1 EN55082-1 EN55022 EN61000-4-2 EN61000-4-3
Package Content:
- Voltage Detector
- Instruction manual
- Carrying Case
