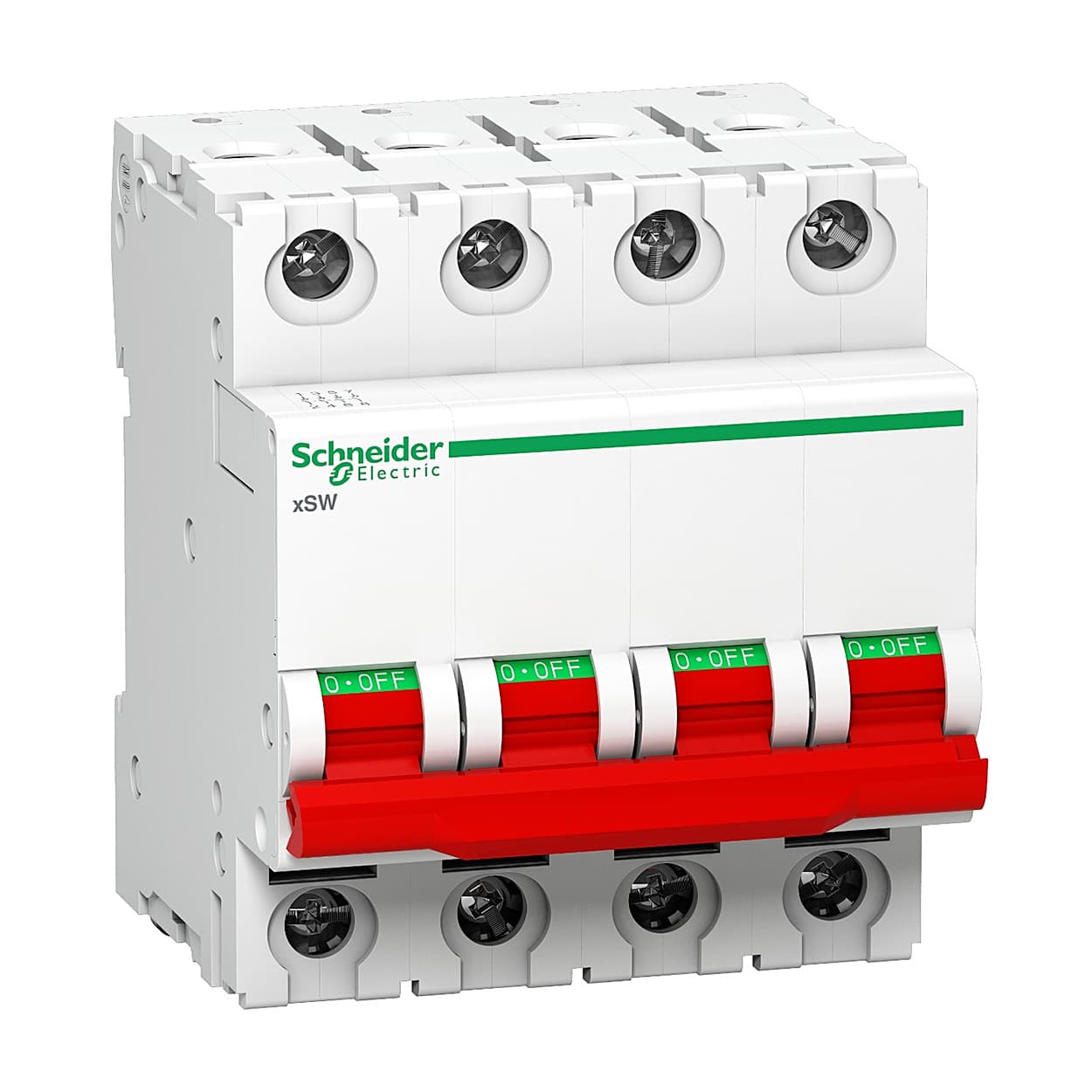

Schneider Electric 100 Amp Isolator - xSW (4 Pole), A9S4P100
Roll over the image to zoom in
Key Features
- Product Type: Isolators
- Number Of Poles: 4 Pole
- Current Rating: 100 Amp
- Impulse Voltage: 6kV
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,769 (Incl. of all taxes)
₹2,347 + ₹422 GST (18%)
MRP was MRP ₹5,868
Save 60%
3 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This Acti9 xSW is a modular and reliable switch disconnector. it is a 4 poles, rated current is 100A, and o poleserating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C.
The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Total number of 18 mm modules 4. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-1,EN/IEC 60947-3.
Complementary
| [Ie] Rated operational current | 100 A at 415 V AC |
| [Ui] Rated insulation voltage | 6 kV |
| [Uimp] Rated impulse withstand voltage | 500 V |
| Poles description | 4P |
| Rated breaking capacity | 2.5 kA |
| Short-circuit withstand | 20 A |
| [Us] Rated supply voltage |
|
| Utilisation category | AC-22 |
| Total number of 18 mm modules | 4 |
| Product destination | Distribution board |
Environment
| Ambient air temperature for operation | -20…50 °C |
| Pollution degree | 3 |
| Standards |
|
Packing Units
| Unit Type of Package 1 | Db |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.4 cm |
| Package 1 Width | 3.55 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 150 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3600.55 g |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 80 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 28822 g |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Number Of Poles | 4 Pole |
|---|---|
| Current Rating | 100 Amp |
| Range Of Product | ISW 40 - 125 |
| Range | Acti9 |
| Product Or Component Type | Isolator |
| Device Application | Isolation |
| Switching Duty | AC-22 |
| Impulse Voltage | 6kV |
| DC Application | 48V (110V With 2 Poles In Series) |
