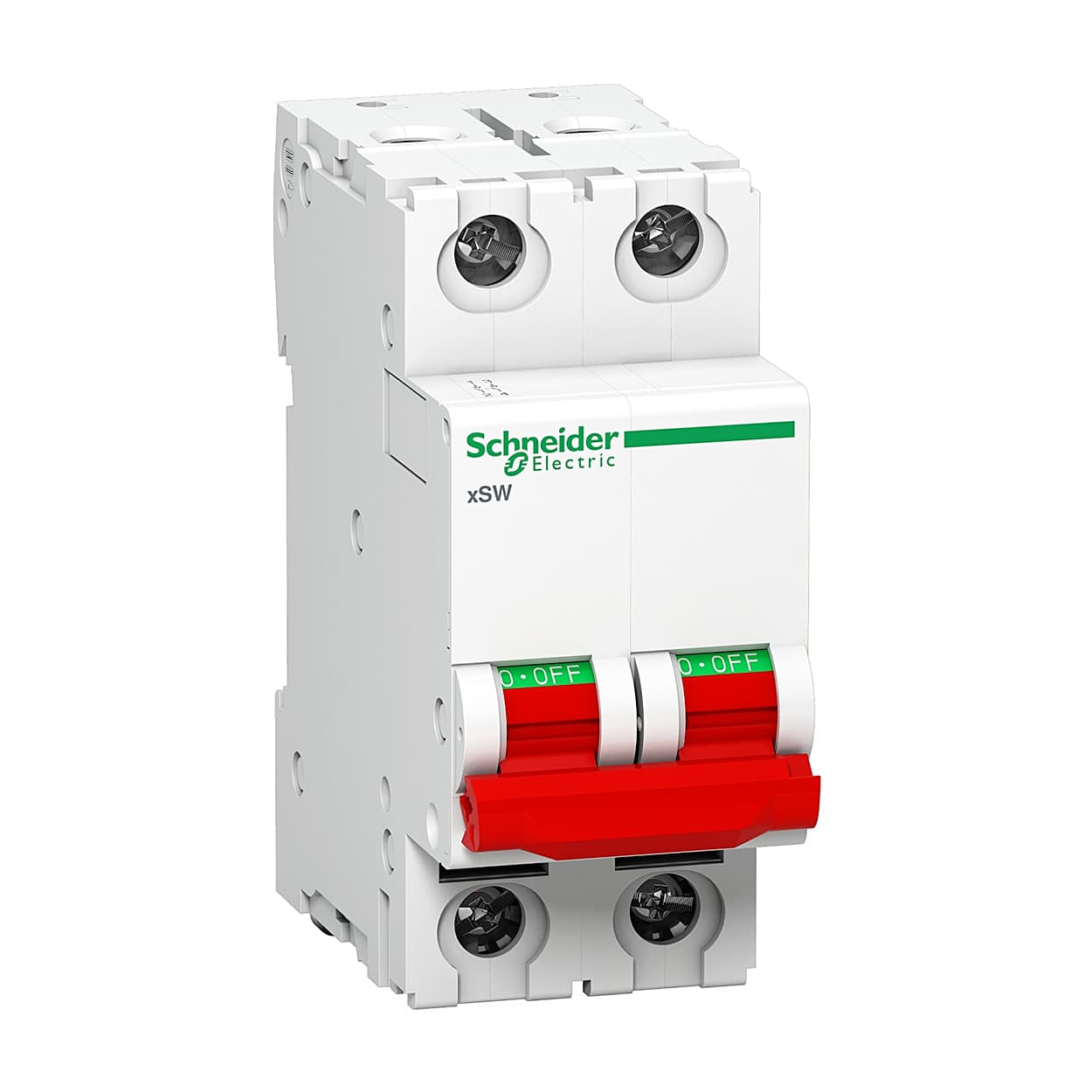

Schneider Electric 40 Amp Isolator - xSW (2 Pole), A9S2P040
Roll over the image to zoom in
Key Features
- Product Type: Isolators
- Number Of Poles: 2 Pole
- Current Rating: 40 Amp
- Impulse Voltage: 6kV
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹688 (Incl. of all taxes)
₹583 + ₹105 GST (18%)
MRP was MRP ₹1,457
Save 60%
3 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This Acti9 xSW is a modular and reliable switch disconnector. it is a 2 poles, rated current is 40A, and operating voltage is 240VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C.
The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Total number of 18 mm modules 2. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-1,EN/IEC 60947-3. Upto 80A Bi connect terminals & 100A to 125A with mono connect terminals
Complementary
| [Ie] Rated operational current | 40 A at 240 V AC |
| [Ui] Rated insulation voltage | 6 kV |
| [Uimp] Rated impulse withstand voltage | 500 V |
| Poles description | 2P |
| Rated breaking capacity | 1.25 kA |
| Short-circuit withstand | 20 A In for 1 second |
| [Us] Rated supply voltage |
|
| Utilisation category | AC-22 |
| Total number of 18 mm modules | 2 |
| Product destination | Distribution board |
Environment
| Ambient air temperature for operation | -20…50 °C |
| Pollution degree | 3 |
| Standards |
|
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 8.0 cm |
| Package 1 Weight | 0.17 kg |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Number Of Poles | 2 Pole |
|---|---|
| Current Rating | 40 Amp |
| Range Of Product | ISW 40 - 125 |
| Range | Acti9 |
| Product Or Component Type | Isolator |
| Device Application | Isolation |
| Switching Duty | AC-22 |
| Impulse Voltage | 6kV |
| DC Application | 48V (110V With 2 Poles In Series) |
