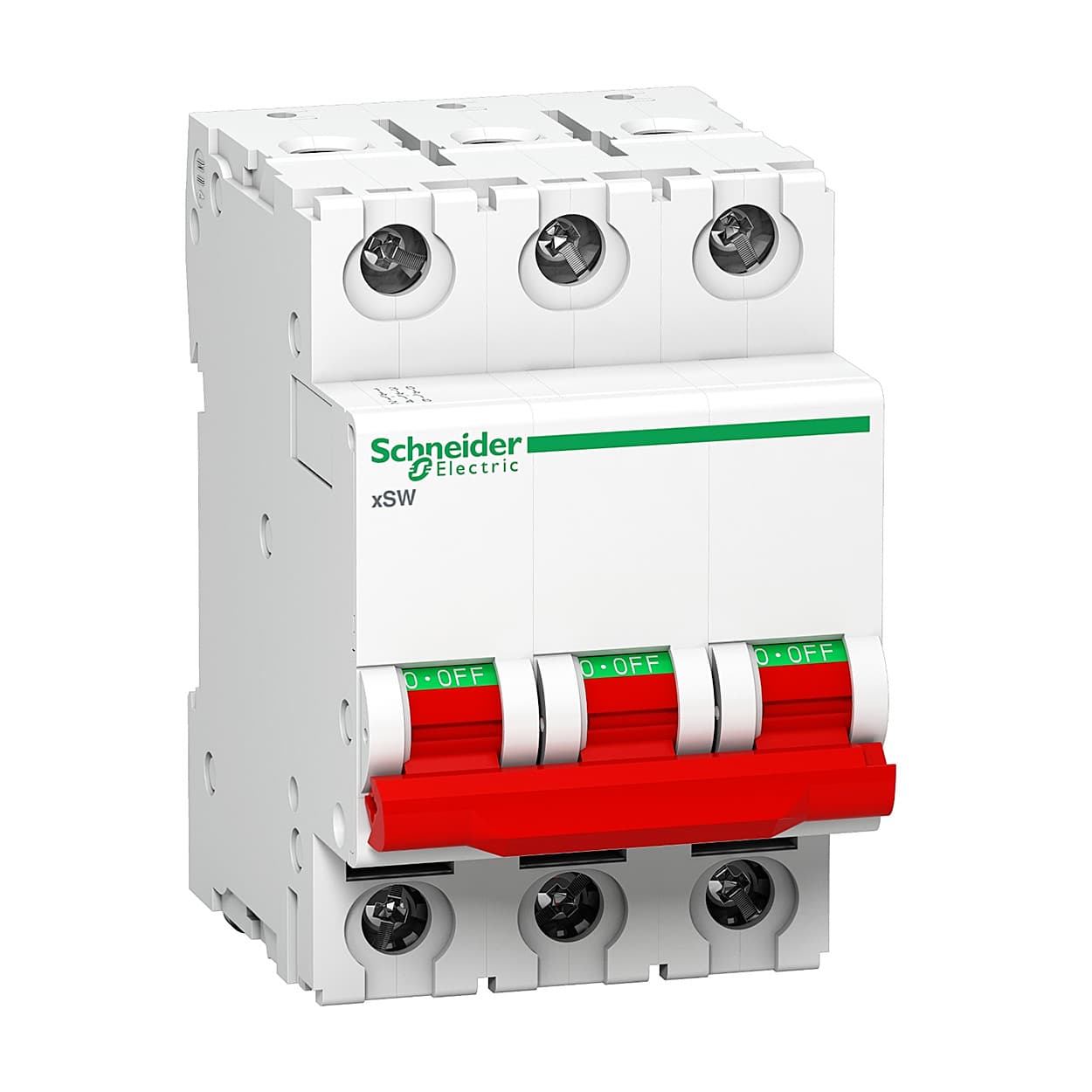

Schneider Electric 63 Amp Isolator - xSW (3 Pole), A9S3P063
Roll over the image to zoom in
Key Features
- Product Type: Isolators
- Number Of Poles: 3 Pole
- Current Rating: 63 Amp
- Impulse Voltage: 6kV
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,407 (Incl. of all taxes)
₹1,192 + ₹215 GST (18%)
MRP was MRP ₹2,981
Save 60%
3 Business Days
1
–
Download Product LeafletNot available
Download Schneider Electric CatalogueNot available
Download Schneider Electric CatalogueNot available
Highlights
Complementary
| [Ie] Rated operational current | 63 A at 415 V AC |
| [Ui] Rated insulation voltage | 6 kV |
| [Uimp] Rated impulse withstand voltage | 500 V |
| Poles description | 3P |
| Rated breaking capacity | 2.5 kA |
| Short-circuit withstand | 20 A |
| [Us] Rated supply voltage |
|
| Utilisation category | AC-22 |
| Total number of 18 mm modules | 3 |
| Product destination | Distribution board |
Environment
| Ambient air temperature for operation | -20…50 °C |
| Pollution degree | 3 |
| Standards |
|
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 0.264 kg |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Number Of Poles | 3 Pole |
|---|---|
| Current Rating | 63 Amp |
| Range Of Product | ISW 40 - 125 |
| Range | Acti9 |
| Product Or Component Type | Isolator |
| Device Application | Isolation |
| Switching Duty | AC-22 |
| Impulse Voltage | 6kV |
| DC Application | 48V (110V With 2 Poles In Series) |
