₹4,627 (Incl. of all taxes)
₹3,921 + ₹706 GST (18%)
MRP was MRP ₹5,444
Save 15%
5 Business Days
9030
|
Simple, easy-to-read scale |
|
Robust design that can withstand being dropped onto concrete from a height of 1 m |
|

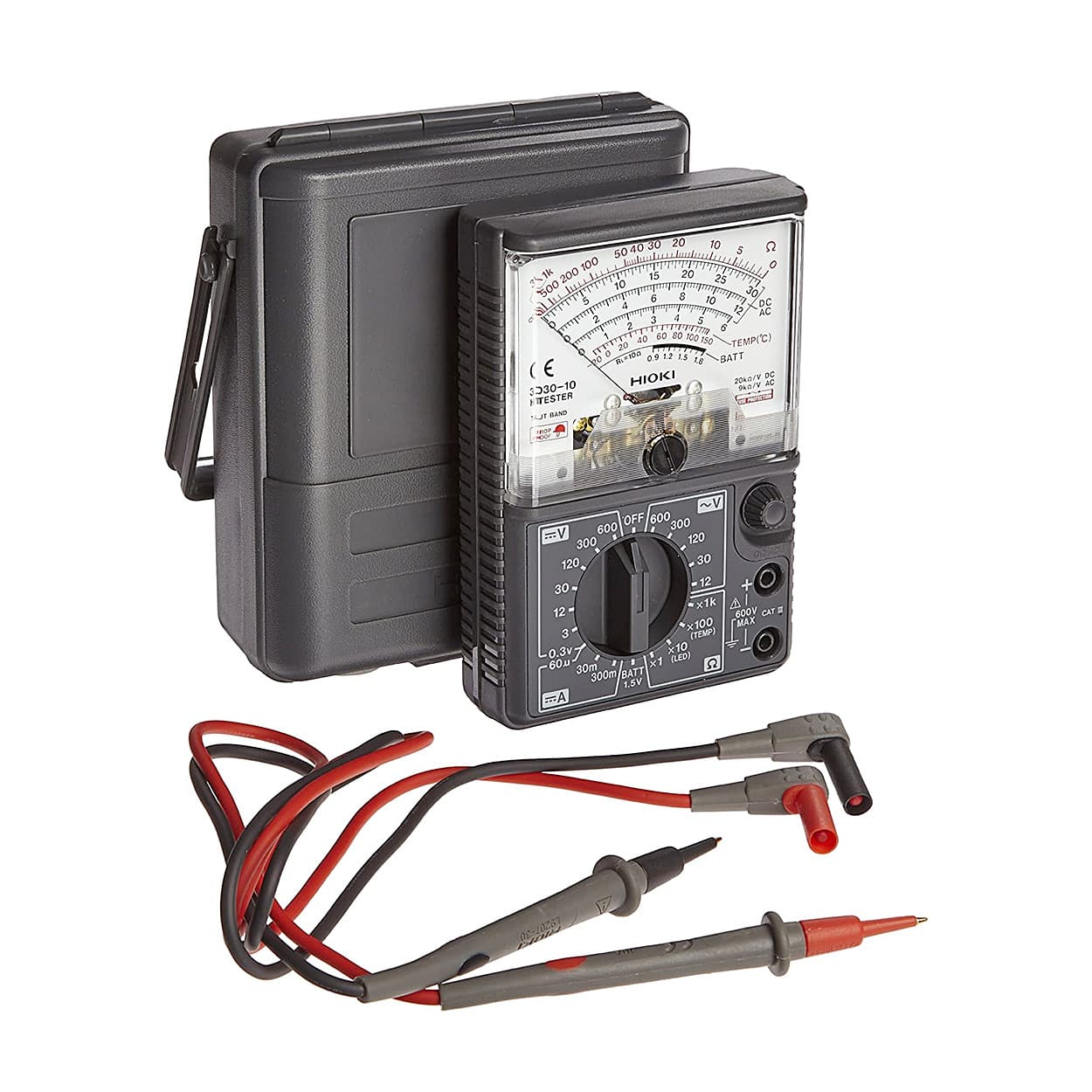

Included carrying case designed to hold probes |
| Power Supply | R6P (AA) Manganese Batteries |
|---|---|
| DC Voltage Range | 0.3 V (16.7 kOhm / V), 3/12/30/120/300/600 V (20 kOhm / V) |
| DC Voltage Range (Accuracy) | ±2.5 % f.s. |
| AC Voltage Range | 12 V (9 kOhm / V), 30/120/300/600 V (9 kOhm / V) |
| AC Voltage Range (Accuracy) |
|---|
| ±4 % f.s. / ±2.5 % f.s. (Average Rectifier Effective Value) |
| DC Current Range | 60 μA/30 m/300 mA (300 mV Internal Voltage Drop) |
|---|
| DC Current Range (Accuracy) | ±3 % f.s. |
|---|
| Resistance Range | 0 to 3 kOhm (Center Scale 30 Ohm), R × 1, R × 10, R × 100, R × 1 k |
|---|
| Resistance Range (Accuracy) | ±3 % of Scale Length |
|---|
| Battery Check | 0.9 - 1.8 V, Load Resistance 10 Ohm |
|---|
| Battery Check (Accuracy) | ±6 % f.s. |
|---|
| Length x Width x Height | 95 mm × 141 mm × 39 mm |
|---|
