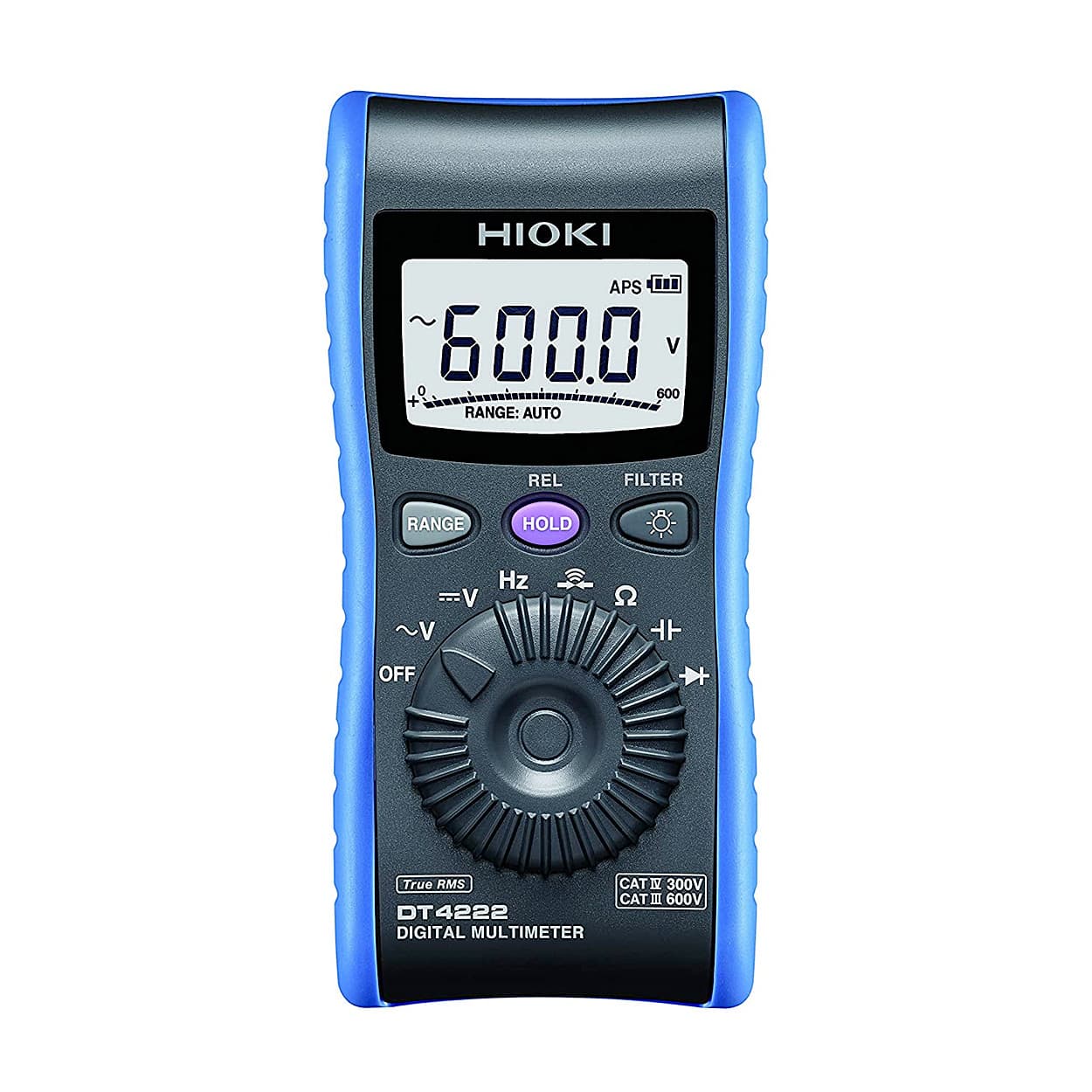

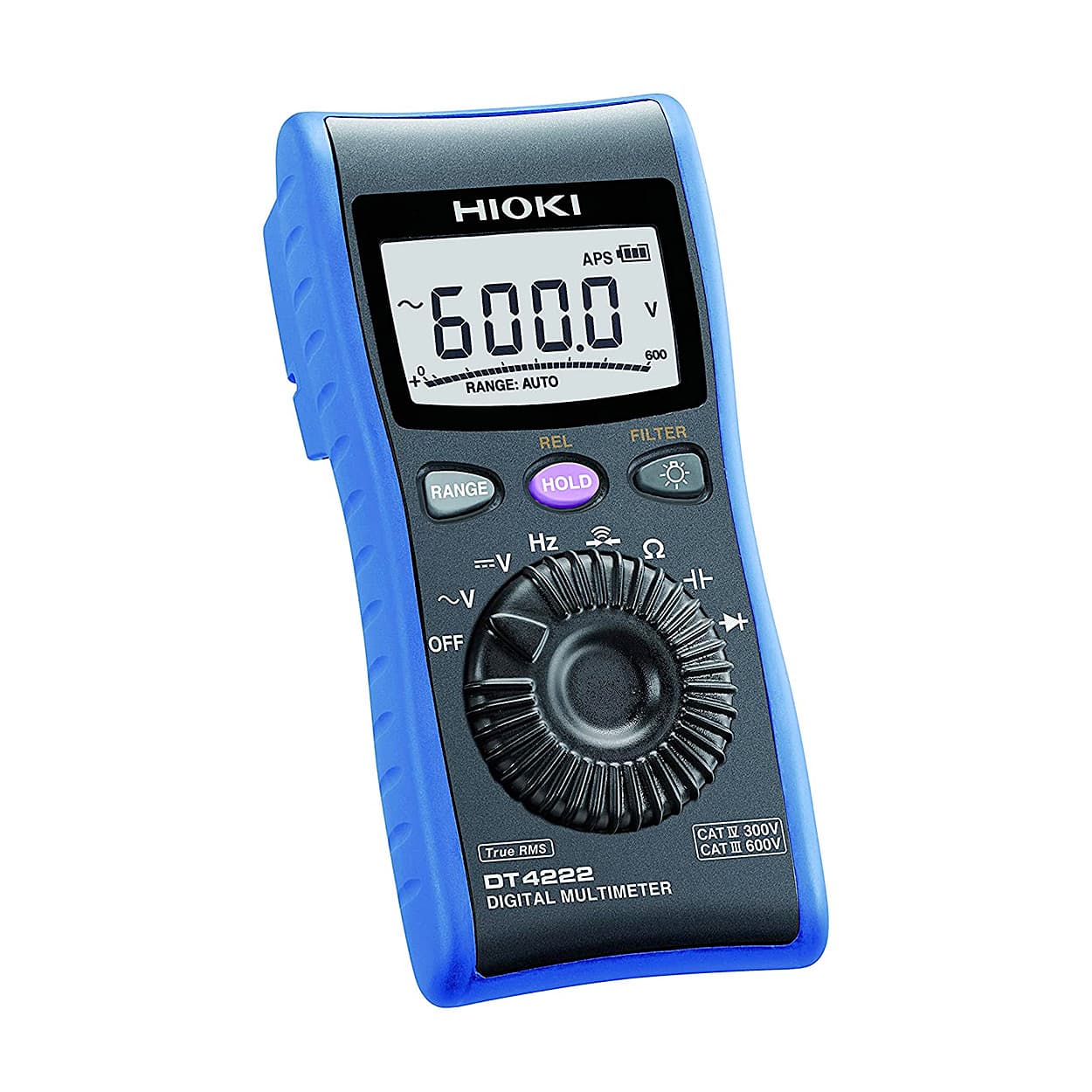

Hioki 6000 Count Premier Pocket Digital MultiMeter, DT4222

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level.

The DT4222 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth.


• Display: Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
• Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)



Key Features:

• Achieving a high level of safety in a compact body and lightweight design
• Robust design capable of withstanding a drop from a height of 1 m
• Broad -10°C to 50°C (14°F to 122°F) operating temperature range
• Resistance, Capacitance measurement and diode testing (DT4222)
• ±0.5% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

What's Included In This Package:

• 1x Test lead DT4911
• 1x Holster
• 1x Instruction manual
• 1x LR03 alkaline battery



Pocket-sized compact digital multimeter for multiple applications  Resistance measurement functionality  Capacitance measurement functionality  Diode test functionality

Compact and lightweight design for outstanding ease of use The small form factor fits in your hand perfectly and is easily stowable, making it convenient to transport to and from the field and boosting work efficiency.

Use Single AAA alkaline battery only Since the DT4222 only uses a single AAA alkaline battery that can be easily replaced, there’s no need to carry a large number of spare batteries with you.

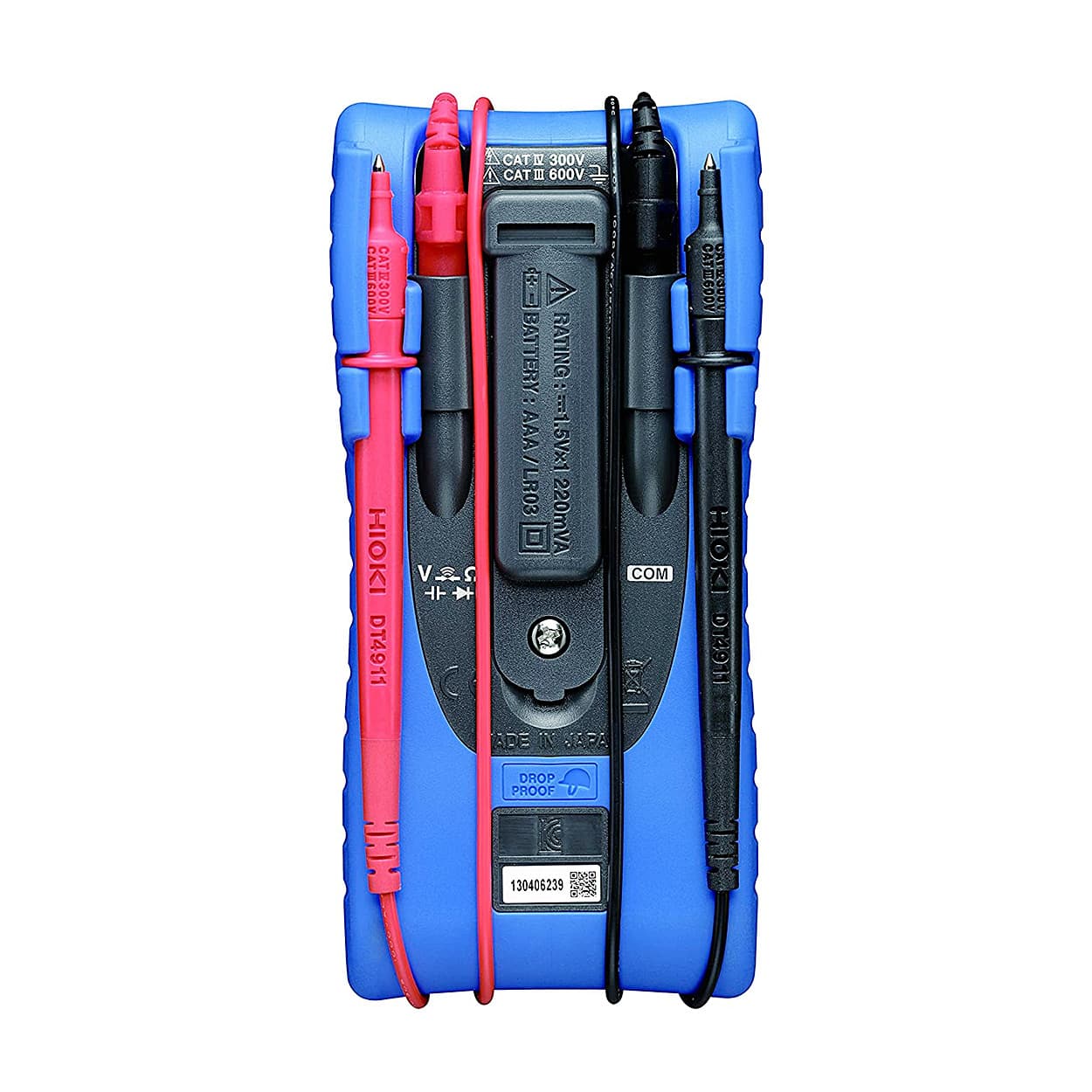

Rear probe connections for superior screen visibility and easy storage Since this design keeps cords from covering up the screen during measurement, you can read values at a glance. After use, probes can be stored on the rear of the instrument, facilitating a smooth start to the next measurement job.

Measure output voltage on the secondary sides of inverters by eliminating harmonic components Accurately measure the fundamental wave alone by eliminating harmonic components with the DMM’s low-pass filter function.

True RMS measurement for accurate measurement of even distorted current waveforms Digital multimeters implement two types of measurement: mean-value measurement and true RMS measurement. The two methods yield significantly different measurement results for current waveforms, which are often distorted. For accurate measurement, it is necessary to use an instrument with true RMS capability.

Designed and manufactured in Japan to ensure high quality and guaranteed with a 3-year warranty for peace of mind All development, design, and manufacturing processes for almost all Hioki digital multimeters are carried out at our Head Office in Nagano Prefecture. Some of the industry’s most advanced technological capabilities enable us to deliver products of the highest possible quality.

Safe measurement requires use of an instrument that suits the measurement location To ensure operators’ ability to use measuring instruments safely, IEC 61010 classifies the locations in which instruments are used into a series of safety-based measurement categories (ranging from CAT II to CAT IV). Using an instrument that does not satisfy the required safety level can lead to an electrical accident. Despite a compact body, the DT4222 can be used to measure voltage at distribution panels.
