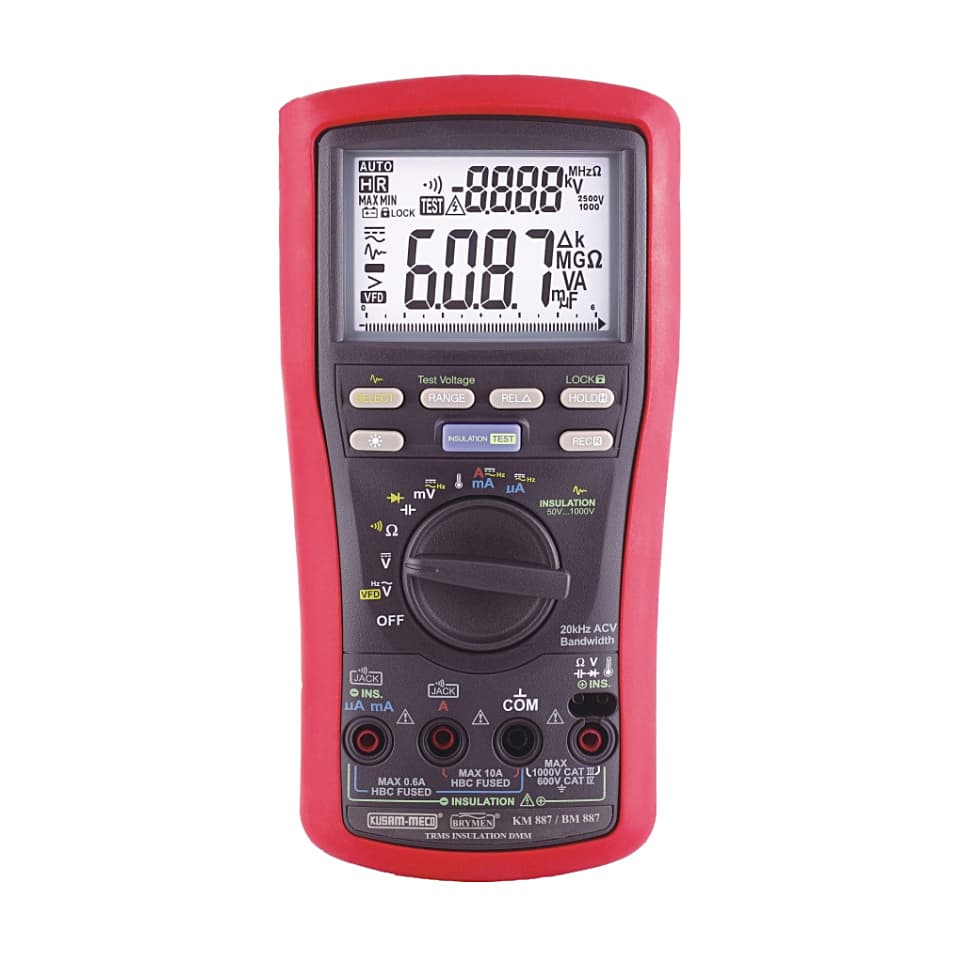

Kusam-Meco 3-5/6 Digits 6000 Counts TRMS Digital Insulation Multimeter (25 Functions 51 Ranges), KM 887

• VFD V & Hz readings
• LCD Backlight Display
• Record MAX/MIN regular readings
• Display Hold Function
• Dual Display +Hz readings
• Relative zero mode
• Auto Power Off
• LOCK-Test mode for Insulation Resistance
• BeepJack™ audible & visible input warning
• High-resolution 60.00mV & 60.00 ranges
• Relative Humidity - Maximum relative humidity is 90% for temperatures up to 28ºC decreasing linearly to 50% relative humidity at 50ºC
• Temperature Coefficient - Nominal 0.1 x (specified accuracy) / °C @(-10ºC~18ºC or 28ºC~50ºC), or otherwise specified

Insulation Resistance @ 1mA Test Current:

• 50V output Voltage: 25mA
• 100V output Voltage: 45mA
• 250V output Voltage: 85mA
• 500V output Voltage: 170mA
• 1000V output Voltage: 440mA
• Tester can perform at least 950 Insulation Tests with new alkaline batteries at room temperature.
• These are standard tests of 1000V into 1M ω with a duty cycle of 5 seconds on and 25 seconds off.

Safety:

• Double insulation per IEC / UL / EN61010-1 Ed. 3.0, IEC / UL / EN61010-2-030 Ed. 1.0, IEC / UL / EN61010-2-033 Ed. 1.0, IEC / UL / EN61010-031 Ed. 1.1 & the corresponding CAN / CSA-C22.2 regulations to Measurement CAT III 1000V AC & DC & CAT IV 600V AC & DC
• Compliance to IEC / EN61557:2007: (per CE requirements, not certified by UL or ETL): IEC / EN61557-1 & IEC / EN61557-2.
• Overload Protection: Insulation Resistance, mA & mA : 0.4A/1KV, IR 30kA, F Fuse, or better / A : 11A/1KV, IR 20kA, F Fuse or better / V: 1100Vrms / mV, W & Others: 1000 Vrms
• Transient Protection: 8KV(1.2/50mS Surge)
• E.M.C: Meets EN61326-1:2013 In an RF field of 3V/m: Total Accuracy = Specified Accuracy + 25 digits. Performance above 3V/m is not specified

Package Content:

• Multimeter
• Test probe pair
• BRP21S2-C Remote probe
• Alligator clip pair
• Holster
• User manual
• Carrying case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
