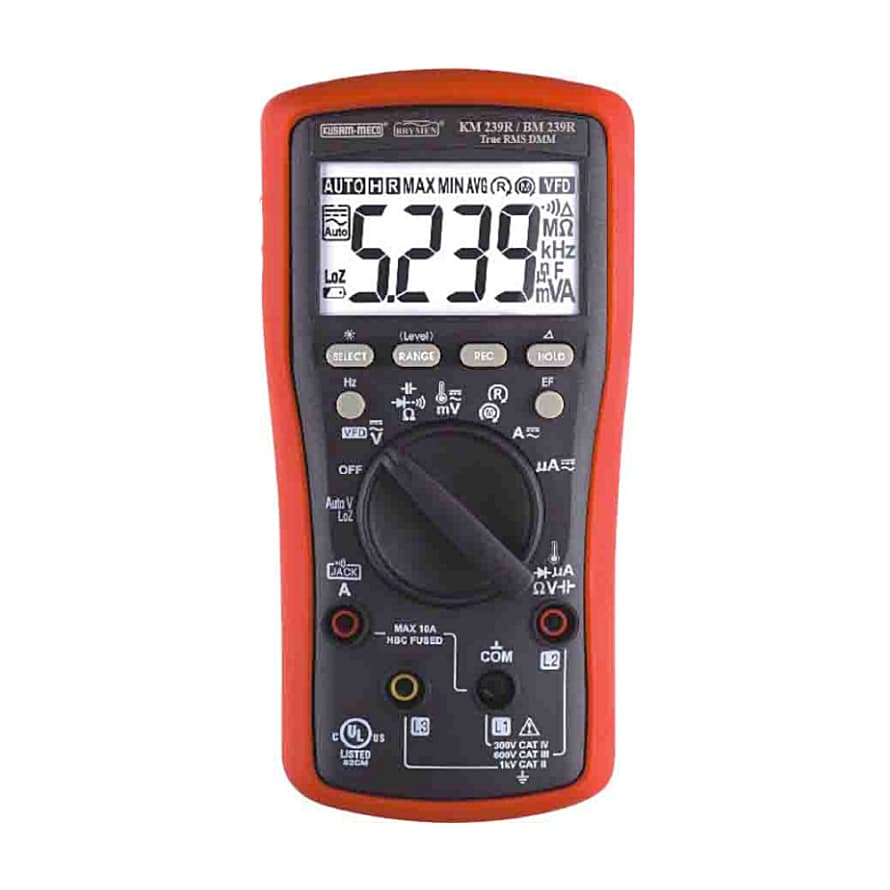

Kusam-Meco 3-5/6 Digits / 6000 Counts TRMS Digital Multimeter With VFD, EF-Detection, 3 Phase Rotation-R & M, KM 239R

Double insulation per IEC/UL/EN61010-1 Ed. 3.0, IEC/UL/EN61010-2-030 Ed. 1.0, IEC/UL/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 & the corresponding CAN/CSA-C22.2 regulations to measurement CAT II 1000V, CAT III 600V and CAT IV 300V AC & DC.

Features & Benefits:

• Display : 3-5/6 digits 6000 counts
• LCD display
• DC mA function for HVAC / R flame sensor application.
• Auto V(LoZ), VFD V & Hz Function
• EF-Detection (NCV)
• Paper White Backlight Display
• Auto Power Off
• Auto-ranging MAX/MIN/AVG record
• Diode & Continuity Test
• Display Hold; Relative zero mode.
• Low Battery Indication
• Temperature Function
• BeepLit Continuity, Features Audible Beep & Visible Backlight Effects
• Beep-Jack Input warning against improper A-terminal plug-in
• Auto-ranging Relative Zero Mode
• 3-phase rotation-R(Regular-sensitivity mode) for supply systems(probe-contact)
• 3-phase rotation-M (Hi-sensitivity mode) for Motors(probe-contact)
• Rugged Fire retarded casing

Safety:

• E. M. C: Meets EN61326-1:2013
• In an RF field of 3V/m: Ohm function - Total Accuracy = Specified Accuracy + 15 digits
• Other function ranges: Total Accuracy = Specified Accuracy
• Performance above 3V/m is not specified.
• Transient Protection: 6.0kV lightning surge (1.2/50µs)
• Terminals (to COM) Measurement Category V/ mAµA / A /L3: CAT II 1000 Volts, CAT III 600V and CAT IV 300 Volts AC & DC
• Overload Protection (A): 11A / 1000V DC/AC rms, IR 20kA, F fuse or better
• Overload Protection (V, Auto V & L3): 1100V DC/AC rms
• Overload Protection (mV, Ω & Others): 1000V DC/AC rms

Package Content:

• Test leads pair
• Alligator clip set
• Batteries included
• User's Manual
• BKP60 banana plug type-K Thermocouple & Carrying case
