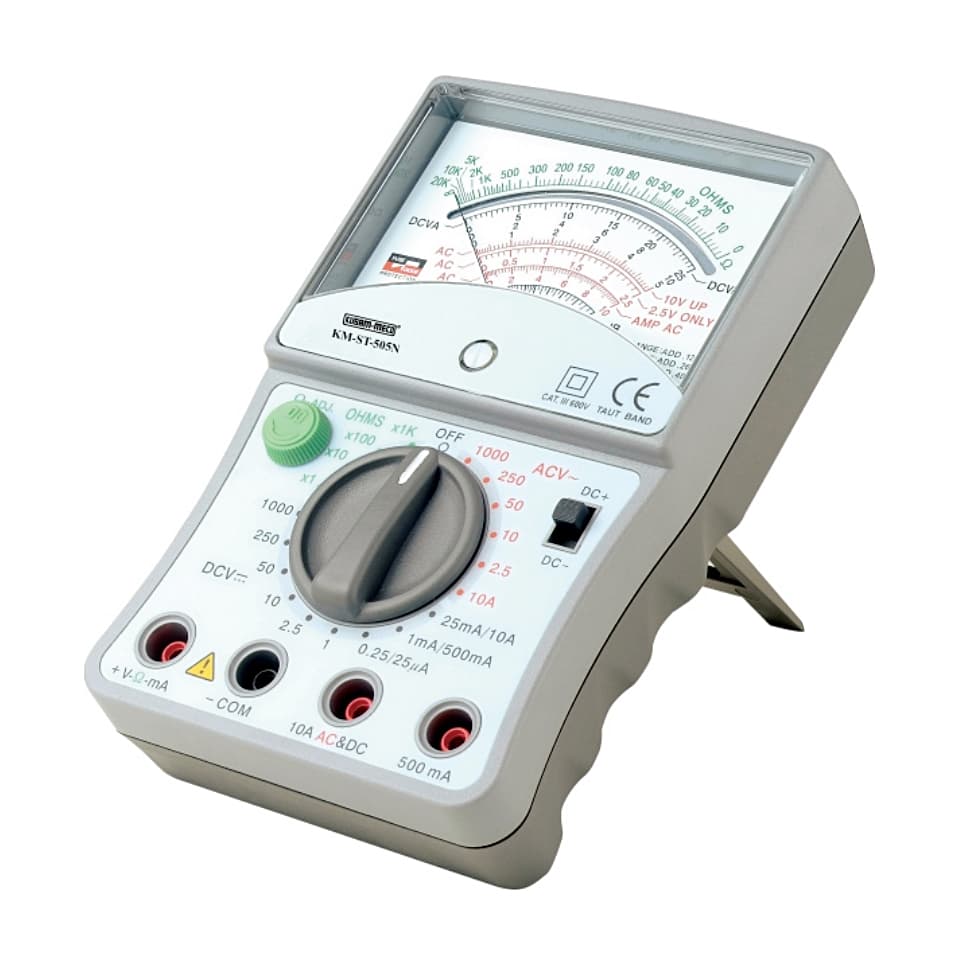

This 50kΩ /V analog multitester with its wide range of measurement capabilities, which includes a 10A AC range, is particularly designed for the requirement of electrical and electronic specialists and engineers. This instrument is also provided with meter over load protection and shock proof device.
Features:
- High quality Taut Band movement
- Easy to read 3-color scale for mistake proof reading
- Mirror scale makes reading pointer easy
- Safety features on all ranges
- Safety features safety fused, safety "OFF" position
- dB measurement
- With stand makes reading and measuring easy
- EN 61010-1 CATIII 600V EN 61326-1
Technical Data:
DC Voltage:
- Ranges: 0.25/1/2.5/10/50/250/1000V
- Accuracy: ±2% F.S.
- Sensitivity: 50kΩ / V
|
AC Voltage:
- Ranges: 2.5/10/50/250/1000V
- Accuracy: ±3% F.S.
- Sensitivity: 10kΩ /V
- Decibelmeter: -20 to 62dB 0dB=1mW/600Ω Direct Scale -20 to + 10dB
|
DC Current:
- Ranges: 25mA-1mA-25 /500 10A (on separate input)
- Accuracy: ±2% F.S.
- Sensitivity: 250mV
|
AC Current:
- Ranges: 10A
- Accuracy: ±3% F.S
|
Resistance:
- Ranges : Rx10.2 to 20kΩ, Rx102 to 200kΩ, Rx10020 to 2MΩ, Rx1K200 to 20MΩ
Accuracy : ±3% of F.S. length
|
Package Content:
- Test Leads
- Instruction manual
- Batteries
