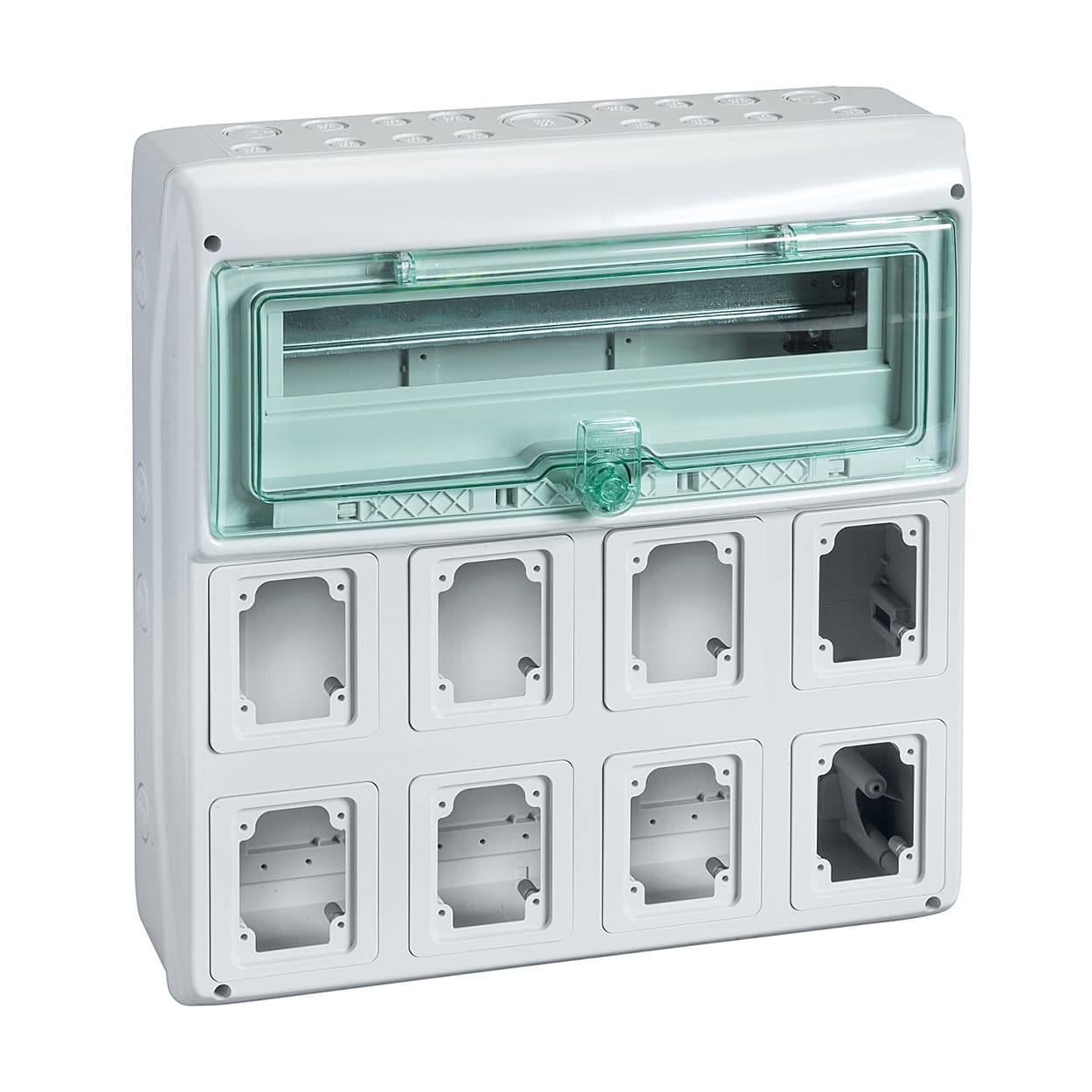

Schneider Electric 19 Module x 8 Opening Enclosure Suitable To Mount Modular Devices And PratiKa 16A / 32A Socket (Weather Proof), 13182
Roll over the image to zoom in
Key Features
- Product Type: Modular Enclosures
- Total Module: 19 Module 8 Opening
- Enclosure Type: Enclosure For Power Outlet
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,246 (Incl. of all taxes)
₹6,141 + ₹1,105 GST (18%)
MRP was MRP ₹15,353
Save 60%
7 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This Kaedra weatherproof enclosure is a surface mounted enclosure for industrial power outlet. It is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. There are 6 openings for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts.
It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 6 plates for 65x85mm power outlets and 2 plates for push-button control. It comes with 1 terminal block. The terminal block has 8 outgoers (4x10mm² + 4x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 28W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 340mm x (H) 460mm x (D) 160mm. The product weight is 2.5kg. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 40°C.
Complementary
| Enclosure mounting | Surface |
| Number of 18 mm modules per row | 12 |
| Total number of 18 mm modules | 12 |
| Number of horizontal rows | 1 |
| Electrical insulation class |
|
| Number of openings of interface | 6 |
| Number of plates |
|
| Provided equipment |
|
| Type of front cover | Transparent |
| Power dissipation in W | 28 W |
| [In] rated current | 63 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 17 |
| Number of terminal blocks | 1 with 8 outgoers |
| Distribution block outgoers |
|
| Locking options description | Optional keylock |
| Enclosure material | Housing: self-extinguishing polymer |
| Net weight | 2.5 kg |
| Base dimension | 90 x 100 mm |
| Width | 340 mm |
| Height | 460 mm |
| Depth | 160 mm |
| Internal depth | 91 mm |
| Colour |
|
Environment
| Standards |
|
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) |
|
| Overvoltage category | II |
| Ambient air temperature for operation | -25…40 °C |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.8 cm |
| Package 1 Width | 36.0 cm |
| Package 1 Length | 47.0 cm |
| Package 1 Weight | 2.848 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 28 |
| Package 2 Height | 80.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 91.744 kg |
Contractual Warranty
| Warranty | 18 months |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 19 Module 8 Opening |
|---|---|
| Range | Kaedra |
| Product Or Component Type | Weatherproof Enclosure |
| Enclosure Type | Enclosure For Power Outlet |
| Accessories Included With Enclosure | 2 Wiring Straps, 2 Plates For Push-Button Controls & 8 Plates For 65 x 85 Power Outlets |
| Mounting Plate Description | Without Mounting Plate |
