Schneider Electric 4 Module x 3 Horizontal Opening Mini Enclosure Suitable To Mount Modular Devices And PratiKa 16A Socket (Weather Proof), 13177
Roll over the image to zoom in
Key Features
- Product Type: Modular Enclosures
- Total Module: 4 Module 3 Horizontal Opening
- Enclosure Type: Enclosure For Power Outlet
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,830 (Incl. of all taxes)
₹1,551 + ₹279 GST (18%)
MRP was MRP ₹3,877
Save 60%
7 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights

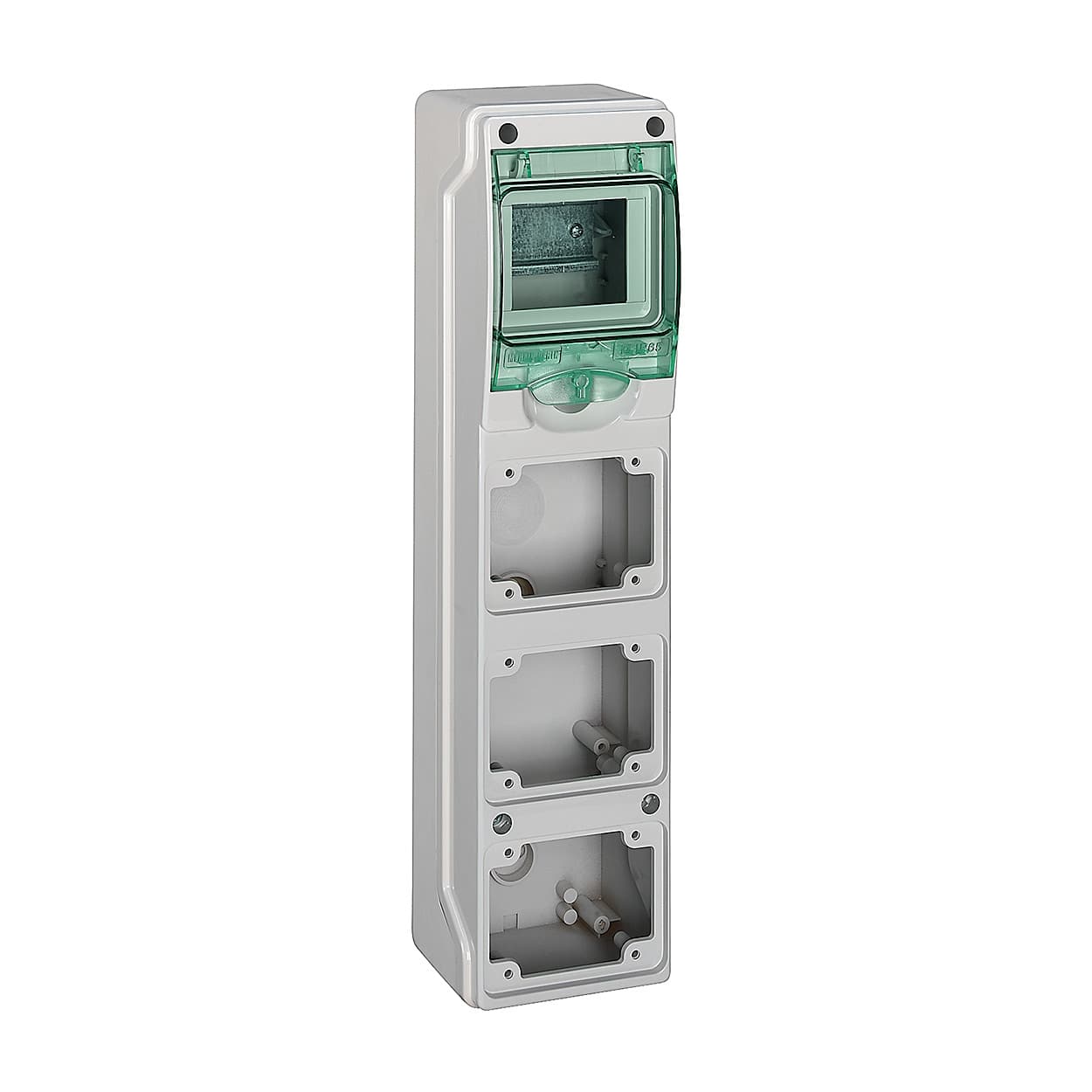

This Kaedra weatherproof versatile enclosure up to 4 modules in 1 row comes with transparent cover. It allows the mounting of power sockets. The dimensions of the box are (W) 98mm x (H) 392mm x (D) 98.5mm. The dimensions of the openings are 65mm x 85mm. The rated current is 63A, according to EN 60439-1 the complete insulation is Class 2.
The degree of protection is IP65 and IK09. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 40°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. This enclosure is dedicated to indoor or outdoor waterproof installation.
Complementary
| Enclosure mounting | Surface |
| Number of 18 mm modules per row | 4 |
| Total number of 18 mm modules | 4 |
| Number of horizontal rows | 1 |
| Electrical insulation class |
|
| Number of openings of interface | 3 |
| Number of plates | 1 for 50 x 50 power outlets |
| Provided equipment | 1 plate for 50 x 50 power outlet |
| Type of front cover | Transparent |
| Power dissipation in W | 10 W |
| [In] rated current | 63 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 1 |
| Number of terminal blocks | 1 with 4 outgoers |
| Distribution block outgoers |
|
| Locking options description | Optional keylock |
| Enclosure material | Housing: self-extinguishing polymer |
| Net weight | 0.61 kg |
| Base dimension | 65 x 85 mm |
| Width | 98 mm |
| Height | 392 mm |
| Depth | 98 mm |
| Internal depth | 61 mm |
| Colour |
|
Environment
| Standards |
|
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) |
|
| Overvoltage category | II |
| Ambient air temperature for operation | -25…40 °C |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10 cm |
| Package 1 Width | 10.4 cm |
| Package 1 Length | 39 cm |
| Package 1 Weight | 557 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 34.5 cm |
| Package 2 Width | 21.5 cm |
| Package 2 Length | 40.5 cm |
| Package 2 Weight | 3.342 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 80 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 92.208 kg |
Contractual Warranty
| Warranty | 18 months |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 4 Module 3 Horizontal Opening |
|---|---|
| Range | Kaedra |
| Product Or Component Type | Weatherproof Enclosure |
| Enclosure Type | Enclosure For Power Outlet |
| Accessories Included With Enclosure | 1 Plate For 50 x 50 Power Outlets |
| Mounting Plate Description | Without Mounting plate |
