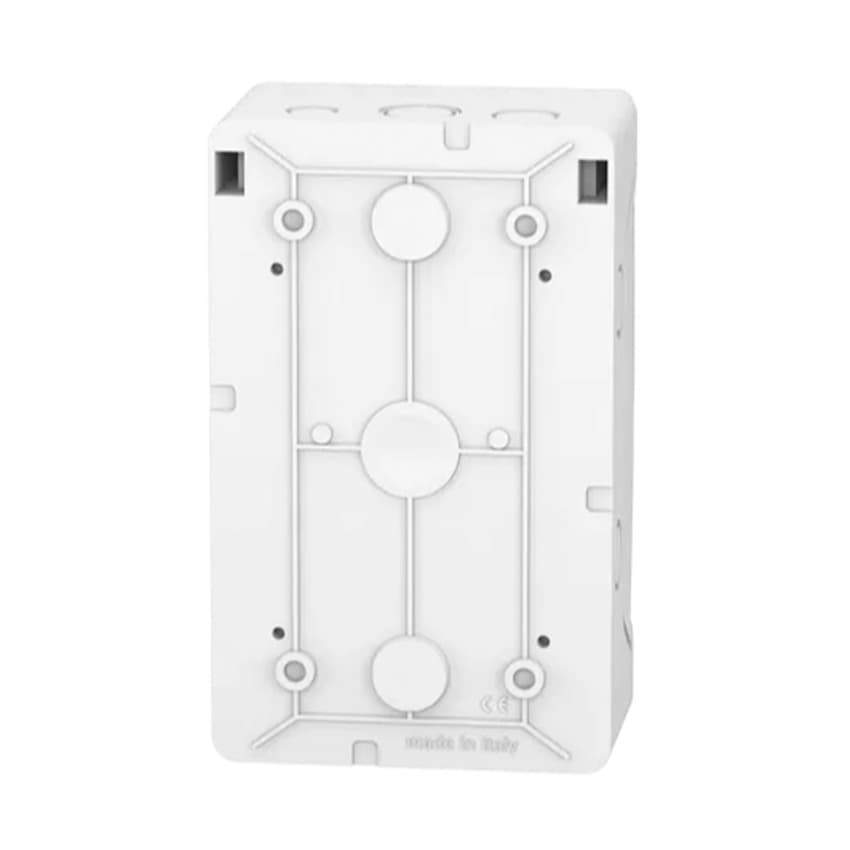

Schneider Electric 4 Module Mini Enclosures For Modular Devices (Weather Proof), 13441
Roll over the image to zoom in
Key Features
- Product Type: Modular Enclosures
- Total Module: 4 Module
- Enclosure Type: Mini Enclosure For Modular Device
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,470 (Incl. of all taxes)
₹2,093 + ₹377 GST (18%)
MRP was MRP ₹5,233
Save 60%
7 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights

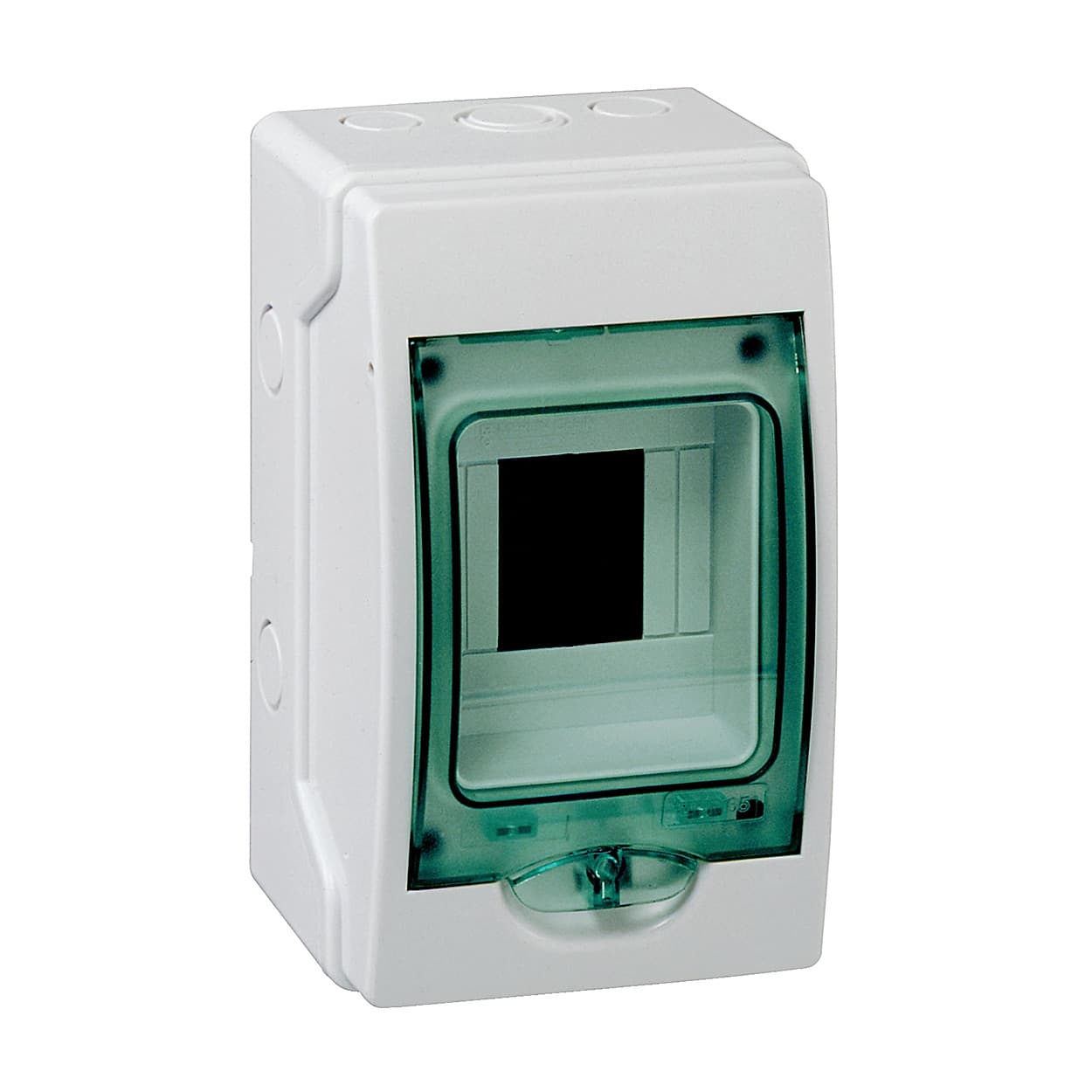

This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 4 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 3 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. 2 terminal blocks can be installed on the back of the enclosure.
Each one has 4 outgoers (2x10mm² + 2x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 10W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 123mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
Complementary
| Enclosure mounting | Surface |
| Number of 18 mm modules per row | 4 |
| Total number of 18 mm modules | 4 |
| Number of horizontal rows | 1 |
| Electrical insulation class |
|
| Provided equipment |
|
| Type of front cover | Transparent |
| Power dissipation in W | 10 W |
| [In] rated current | 63 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 3 |
| Number of terminal blocks | 2 with 4 outgoers |
| Distribution block outgoers |
|
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 123 mm |
| Height | 200 mm |
| Depth | 112 mm |
| Internal depth | 56 mm |
| Colour |
|
Environment
| Standards |
|
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) |
|
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
Packing Units
| Unit Type of Package 1 | Db |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 20.000 cm |
| Package 1 Weight | 515.000 g |
| Unit Type of Package 2 | Gyári csomagolás |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 22.500 cm |
| Package 2 Width | 34.500 cm |
| Package 2 Length | 41.000 cm |
| Package 2 Weight | 4.950 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 80.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 139.200 kg |
Contractual Warranty
| Warranty | 18 months |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 4 Module |
|---|---|
| Range | Kaedra |
| Product Or Component Type | Weatherproof Enclosure |
| Enclosure Type | Mini Enclosure For Modular Device |
| Accessories Included With Enclosure | 2 Terminal Blocks 4 Holes 1 Marking Kit |
| Mounting Plate Description | Without Mounting plate |
