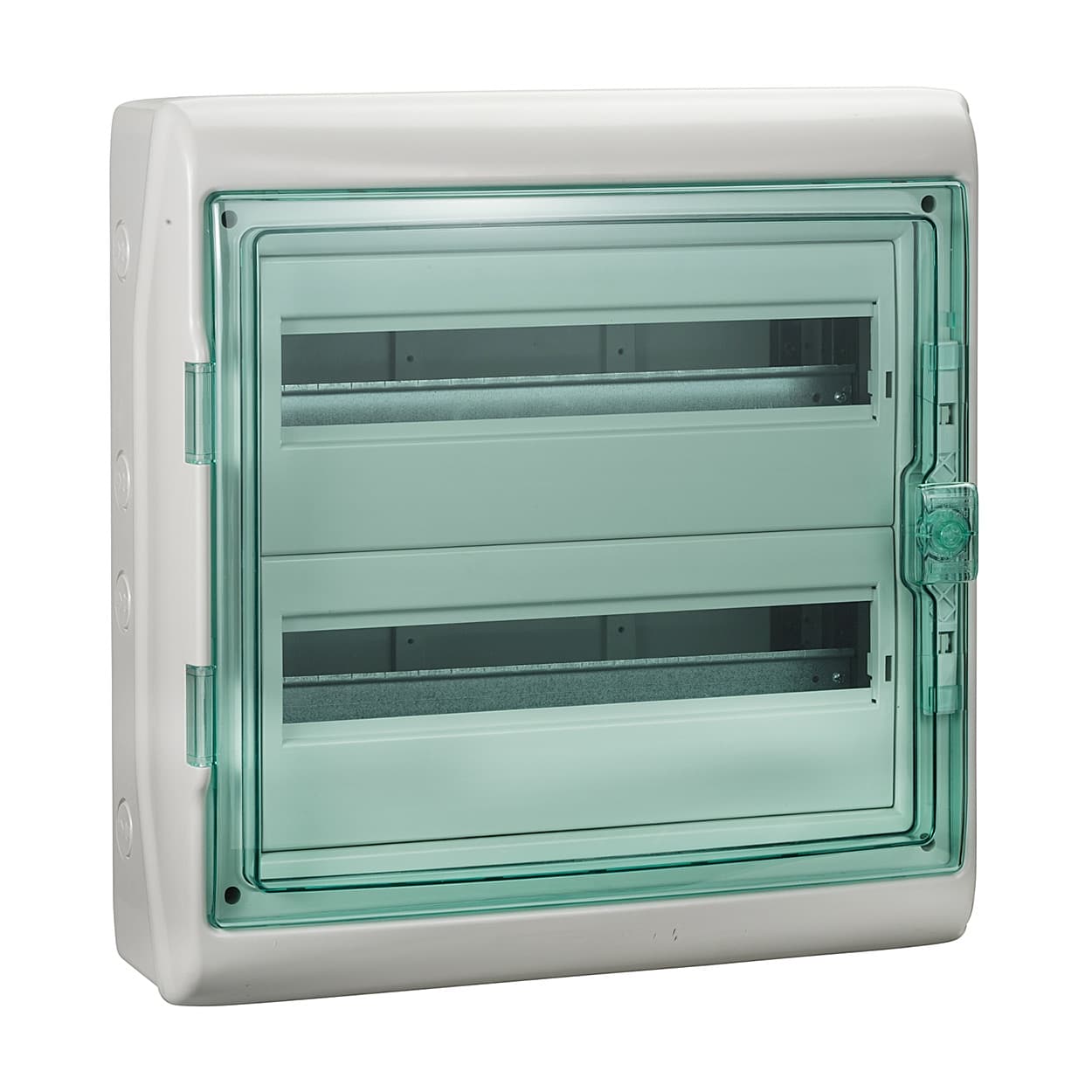

Schneider Electric 2 Row x 36 Module Enclosures For Modular Devices With Terminal Blocks (Weather Proof), 13434
Roll over the image to zoom in
Key Features
- Product Type: Modular Enclosures
- Total Module: 2 Row 36 Module
- Enclosure Type: Enclosure For Modular Device
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,122 (Incl. of all taxes)
₹9,425 + ₹1,697 GST (18%)
MRP was MRP ₹23,563
Save 60%
7 Business Days
1
–
Download Schneider Electric CatalogueNot available
Highlights
This Kaedra weatherproof versatile enclosure up to 18 modules in 2 rows comes with reversible transparent cover. The total number of modules is 36. The dimensions of the box are (W) 448mm x (H) 460mm x (D) 160mm. The rated current is 90A, according to EN 60439-1 the complete insulation is Class 2. The degree of protection is IP65 and IK09.
The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. Empty, this enclosure is compliant with IEC 60670. Equipped switchboards, this enclosure is compliant with IEC 60493-3. This enclosure is dedicated to indoor or outdoor waterproof installation.
Complementary
| Enclosure mounting | Surface |
| Number of 18 mm modules per row | 18 |
| Total number of 18 mm modules | 36 |
| Number of horizontal rows | 2 |
| Electrical insulation class |
|
| Provided equipment |
|
| Type of front cover |
|
| [In] rated current | 90 A |
| Type of rail | DIN |
| Number of pre-cutouts PG ISO | 17 |
| Number of terminal blocks | 2 with 32 outgoers |
| Distribution block outgoers |
|
| Locking options description | Optional keylock |
| Enclosure material | Self-extinguishing polymer |
| Width | 448 mm |
| Height | 460 mm |
| Depth | 160 mm |
| Internal depth | 88 mm |
| Colour |
|
Environment
| Standards |
|
| Fire resistance | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 50102 |
| Environmental characteristics (UV) |
|
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.500 cm |
| Package 1 Width | 47.000 cm |
| Package 1 Length | 47.000 cm |
| Package 1 Weight | 4.425 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 80.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 91.650 kg |
Contractual Warranty
| Warranty | 18 months |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Total Module | 2 Row 36 Module |
|---|---|
| Range | Kaedra |
| Product Or Component Type | Weatherproof Enclosure |
| Enclosure Type | Enclosure For Modular Device |
| Accessories Included With Enclosure | 2 Marking Kit, 1 Terminal Block Support, 2 Wiring Strap, 2 Terminal Blocks & 32 Holes |
| Mounting Plate Description | Without Mounting plate |
