₹15,326 (Incl. of all taxes)
₹12,988 + ₹2,338 GST (18%)
MRP was MRP ₹18,690
Save 18%
3 Business Days
| Measuring Travel | ± 0.4 mm |
|---|---|
| Total Travel | 1 mm |
| Linearity | ± 0.5% (of total measuring range) |
| Repeatability | 0.15 μm |
| Measuring force | 0.8 N |
| Pre-travel | Fixed |
| Application | Universal |
| Environmental Protection (IEC 529) | IP 64 |
| Cable support spring | N/A |

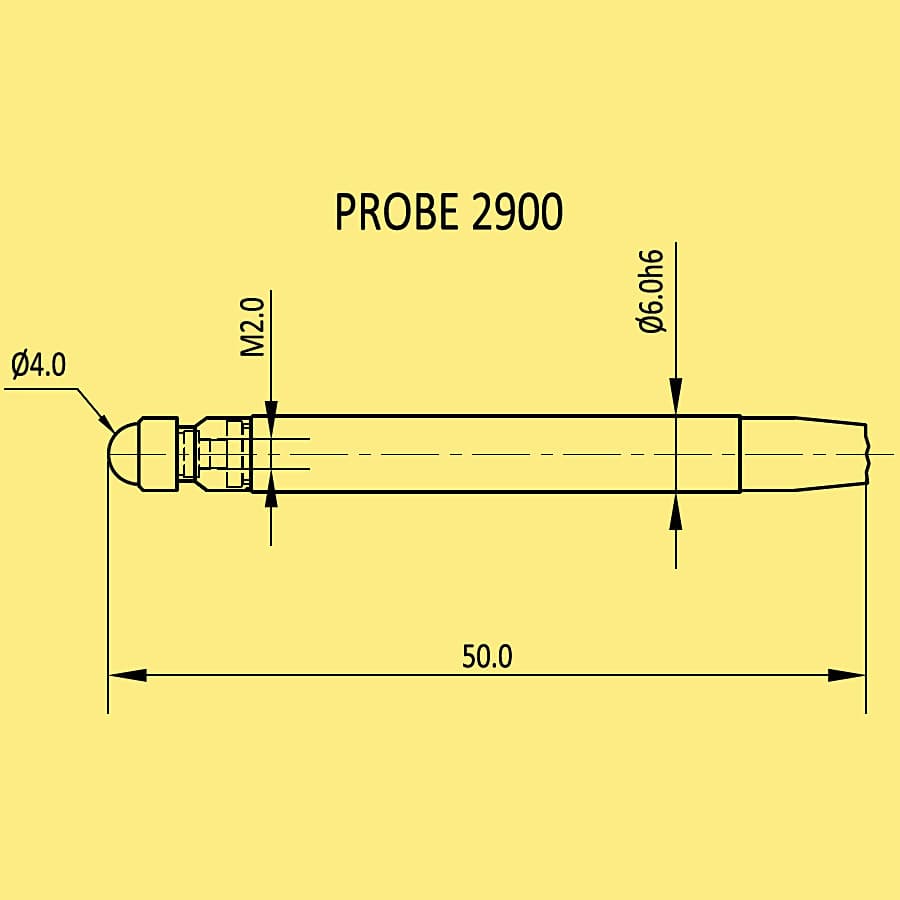

| Total Length (with support spring) | 50 mm |
| Reference temperature | 20° C |
| Sealing bellow | Viton |
| Connection adaptor | 5-pin, Male DIN plug (240°) |
| Cable | 2 mtr Polyurethane |
| Plunger guide | Preloaded, caged linear ball bearing |
| Contact Tip | Tungsten carbide ball 4 mm Dia, M2 Thread. |
| Probe Body | Hardened and ground stainless steel (55HRC); Diameter 5h6 |
