₹19,516 (Incl. of all taxes)
₹16,539 + ₹2,977 GST (18%)
MRP was MRP ₹23,800
Save 18%
3 Business Days
| Measuring Travel | ± 5 mm |
|---|---|
| Total Travel | 2.25 mm |
| Linearity | ± 1.5 % (of total measuring range) |
| Repeatability | 0.15 μm |
| Measuring force | 2.5 N |
| Pre-travel | Variable |
| Application | Universal |
| Environmental Protection (IEC 529) | IP 64 |
| Cable support spring | Present |

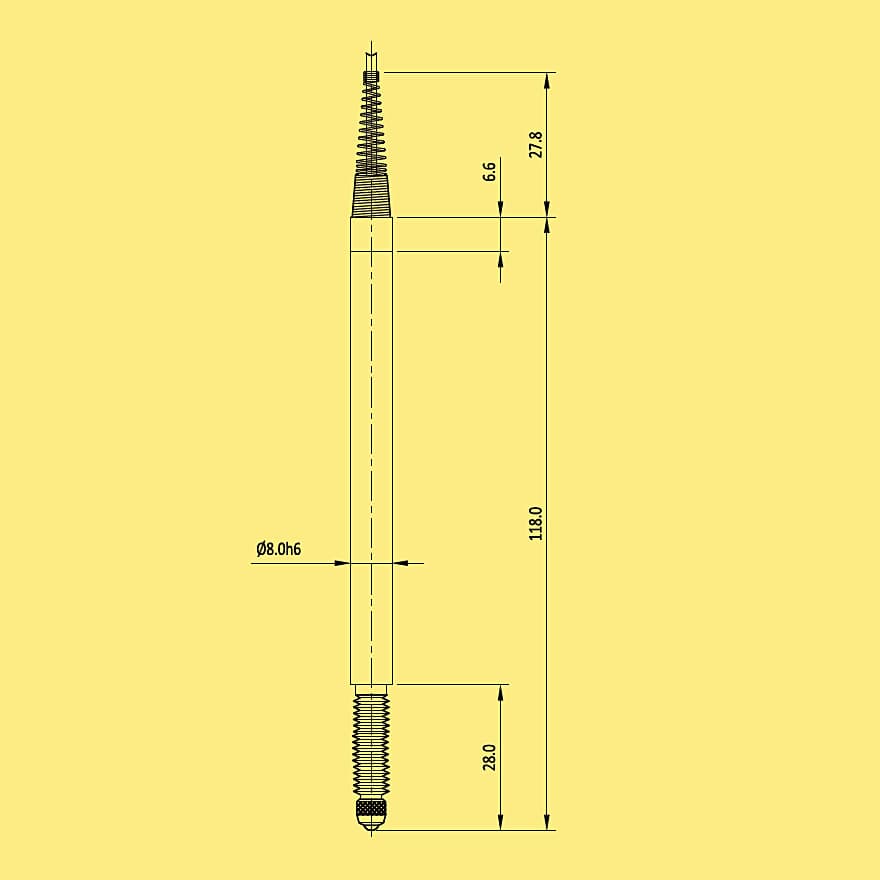

| Total Length (with support spring) | 145 mm |
| Reference temperature | 20° C |
| Sealing bellow | Viton |
| Connection adaptor | 5-pin, Male DIN plug (240°) |
| Cable | 2 mtr Polyurethane |
| Plunger guide | Preloaded, caged linear ball bearing |
| Contact Tip | Tungsten carbide ball 3 mm Dia, M2.5 Thread. |
| Probe Body | Hardened and ground stainless steel (55HRC); Diameter 8h6 |
