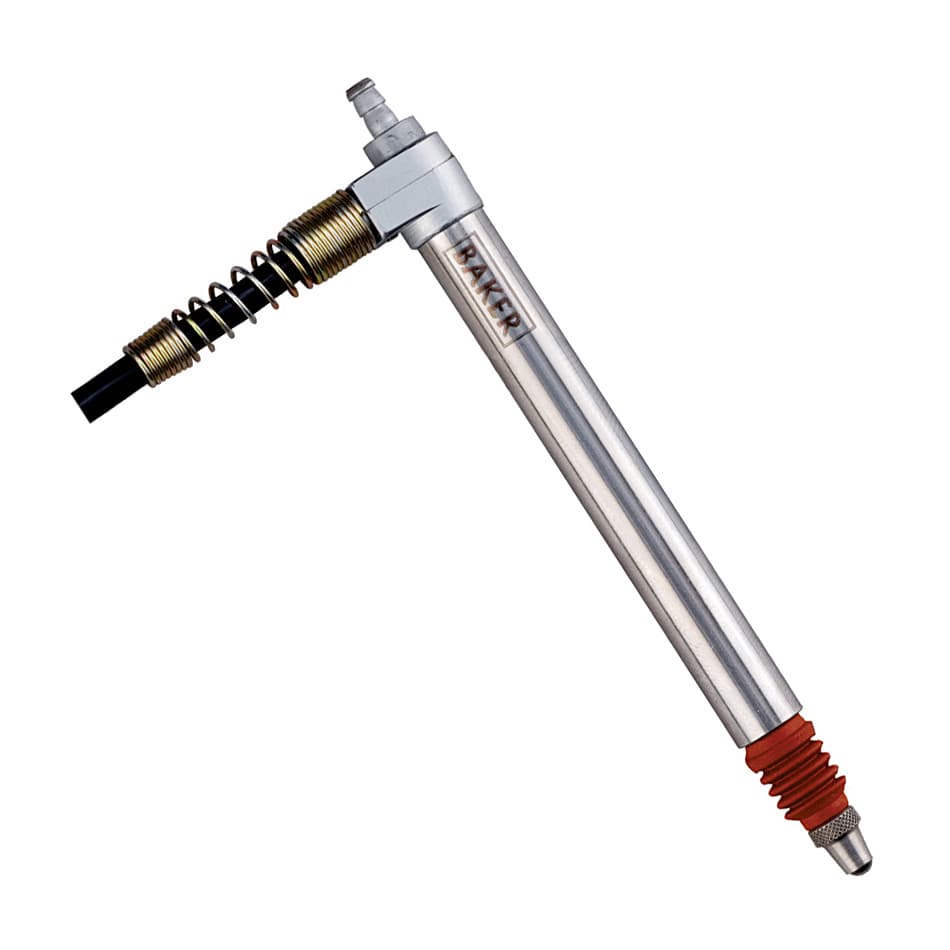

Baker 4.5 mm Half - Bridge Type Electronic Vaccum Retract Axial Probe, 2940 V

Name: Baker 4.5 mm Half - Bridge Type Electronic Vaccum Retract Axial Probe, 2940 V
Brand: Baker
SKU: ME.EL.PR.00037
Price: 15145.00 INR
Availability: InStock

Shop all Baker

SKU: ME.EL.PR.00037

Model: E41229000, 2940V

Highlights

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Baker 4.5 mm Half - Bridge Type Electronic Vaccum Retract Axial Probe, 2940 V
Measuring Travel	± 2 mm
Total Travel	4.5 mm
Linearity	± 0.3%
Repeatability	0.02 μm
Measuring force	0.45 to 0.75 N
Pre-travel	Variable
Sealing bellow	Viton
Application	Vacuum Lift
Environmental Protection (IEC 529)	IP 66
Cable support spring	Present

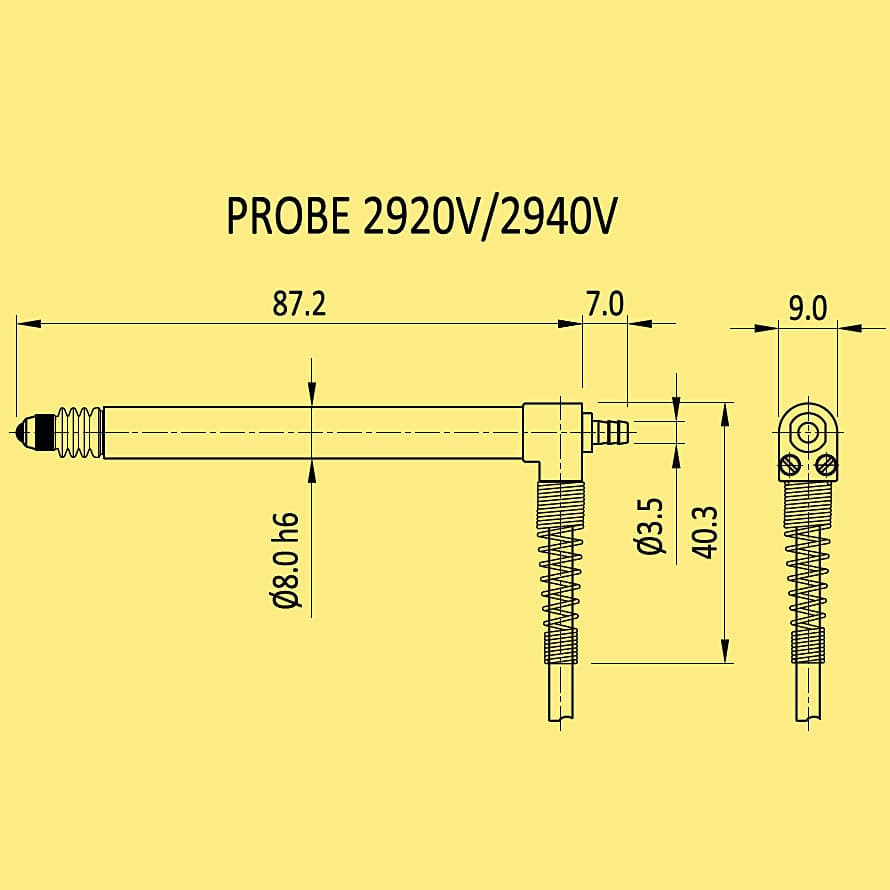

Total Length (with support spring)	114 mm
Reference temperature	20° C
Connection adaptor	5-pin, Male DIN plug (240 °)
Cable	2 m (Axial) Polyurethane
Plunger guide	Pre-loaded, caged linear ball bearing
Contact Tip	Tungsten Carbide Ball 3 mm Dia, M2.5 Thread(240 °) with screw
Probe Body	Hardened & ground stainless steel (55HRC) (Diameter 8h6)
