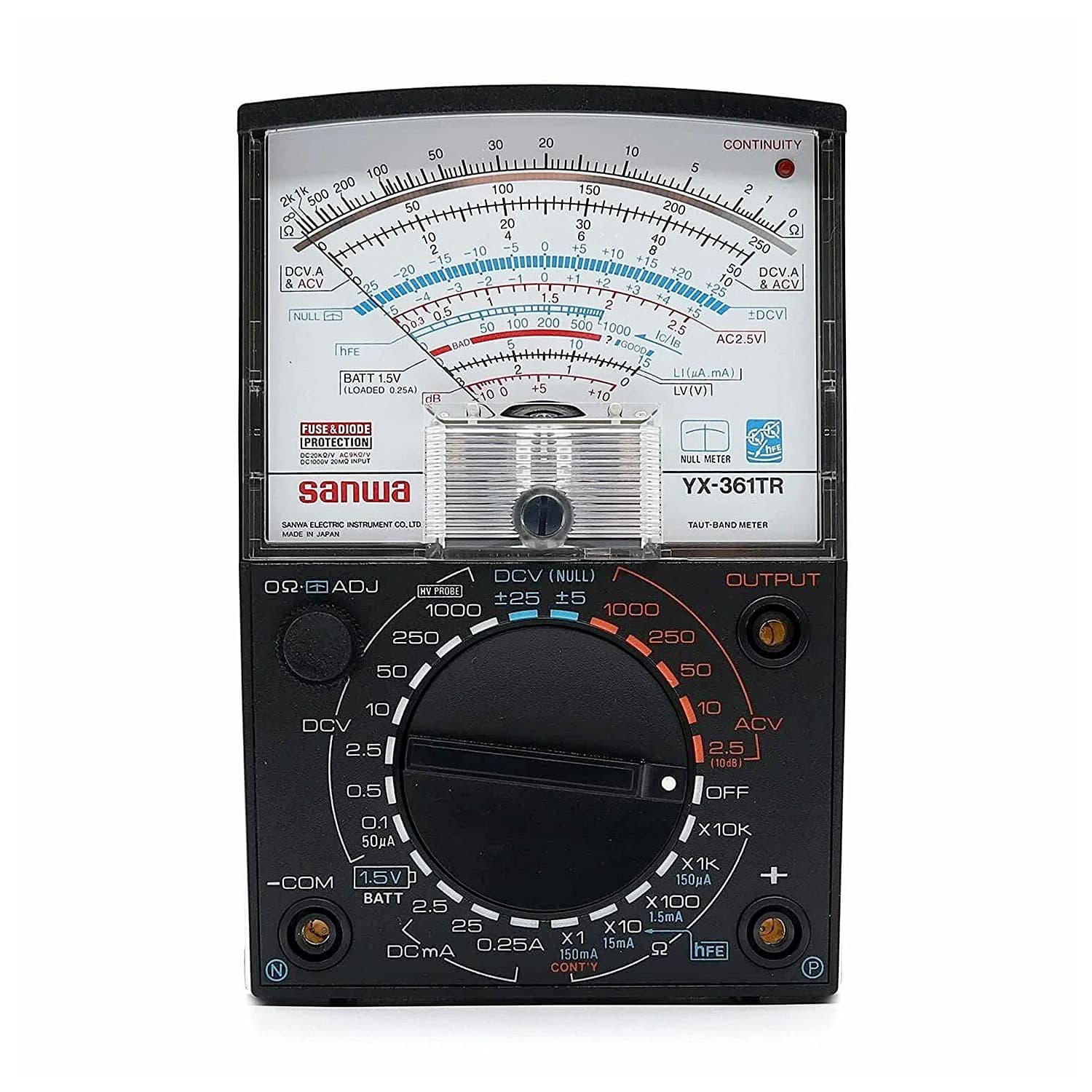

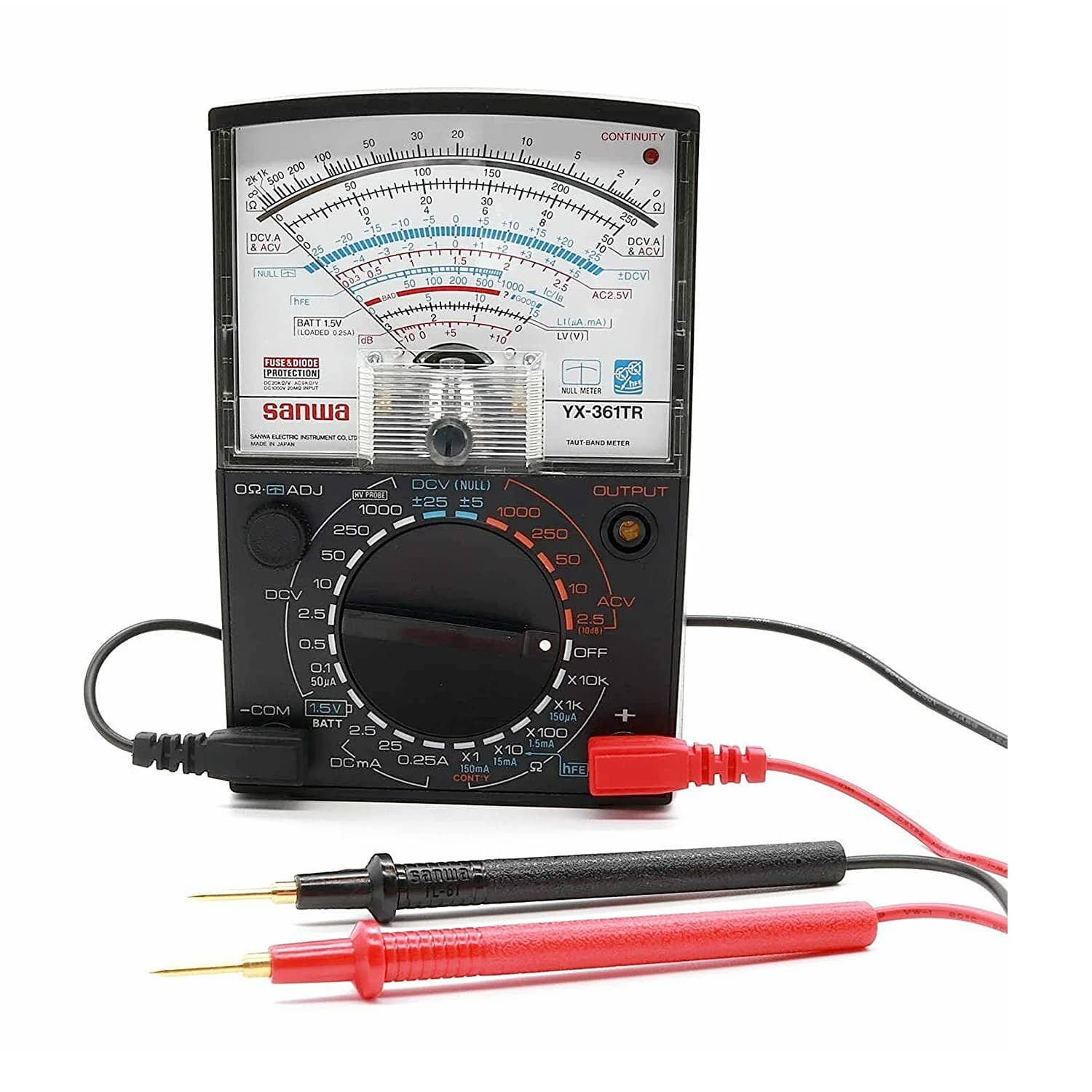

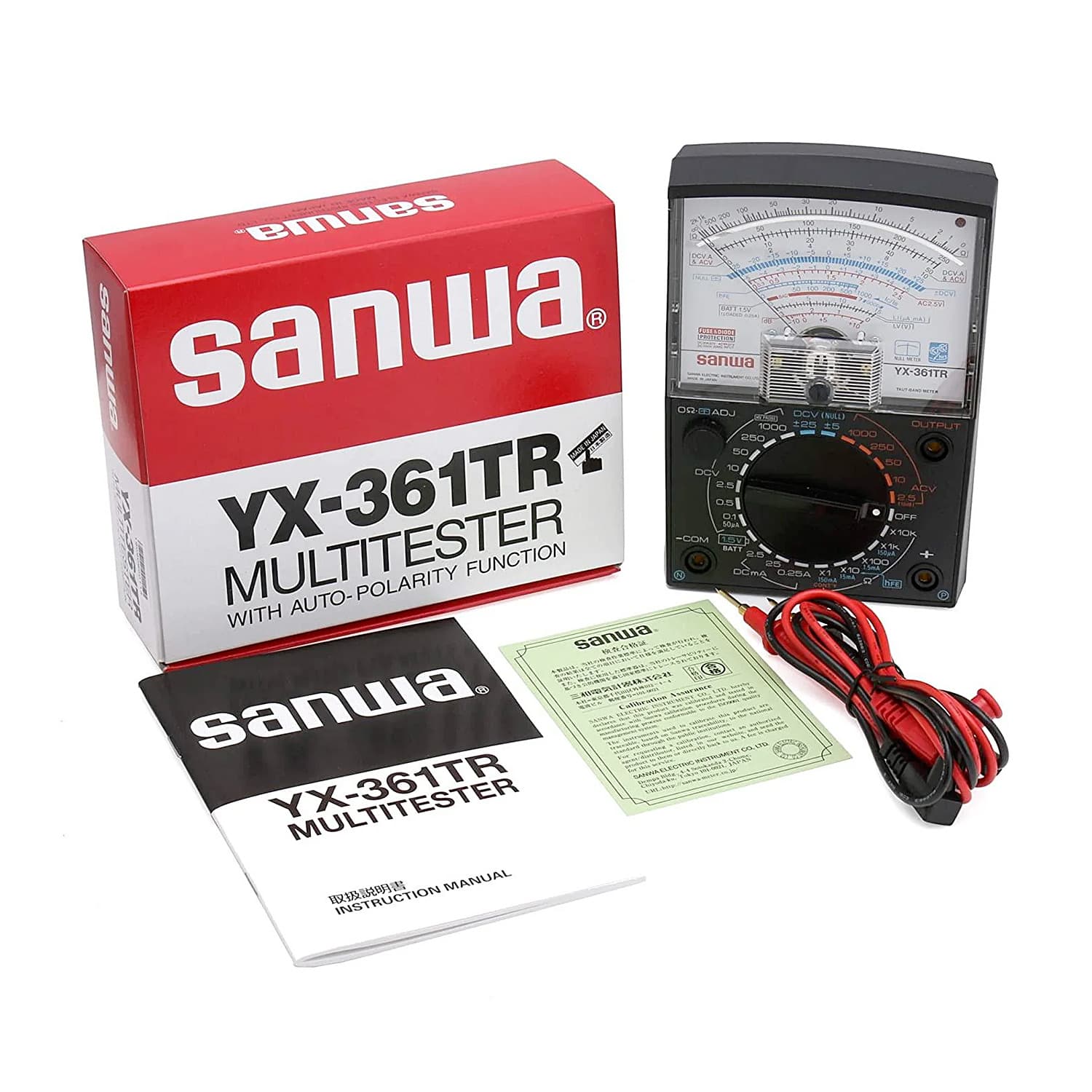

Sanwa 0.1 - 1000V Analog Multimeter, YX361TR

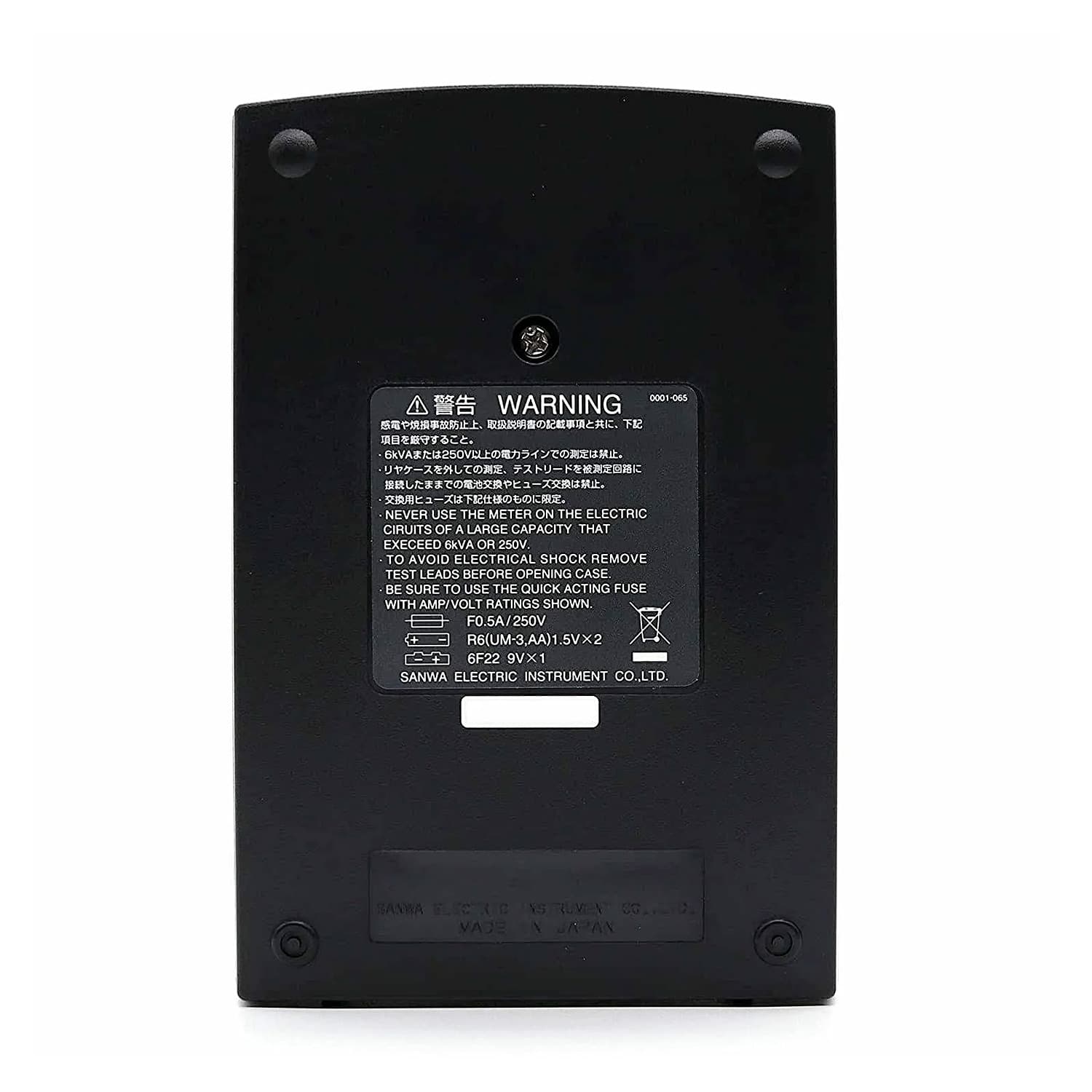

This multimeter is designed for low voltage circuits and has an average accuracy of 3% of full-scale reading. This device can measure DC voltages using the null reading or zero methods for both negative and positive readings, it can also measure DC current of up to 0.25A and can measure AC Voltage (1000V max). The YX-361TR is capable of measuring signal power in dB in the range of -10dB~+62dB. Users can also use it to check the continuity of a capable or a trace, for which an LED output is provided. The device has an all-plastic rigid body that can withstand all kinds of environments. The instrument’s circuitry is protected by a replaceable (250V/0.5A) fuse

Features:

• Total 35 wide ranges (24 ch switch + additional functions)
• ±DCV zero center meter
• LED for continuity check
• Output terminal (series capacitor terminal)
• Battery check

Technical Data:

Function	Measuring Range	Tolerange
DCV	0.1/0.5/2.5/10/50/250/1000V(20KΩ/V)	±2.5% of full scale
±DCV	±5/25V (40kΩ/V)	±5% of full scale
ACV	2.5/10/50/250/1000V (9kΩ/V)	±3% of full scale (2.5/10V:±4% of full scale)
DCA	50μ/2.5m/25m/0.25A	±2.5% of full scale
Resistance	2k/20k/200k/2M/20MΩ	±3% of arc
Low-frequency output	-10~+62dB	±3% of full scale (2.5/10V:±4% of full scale)
hFE	0~1000 hFE	±3% of arc
Continuity	? approx.10Ω: LED lights. Open circuit voltage: approx. 3V

Functions:

	Battery Check Battery voltage is measured and assessed by running a given current.
	Zero Center Meter (NULL) Moves the indicator of the analog tester to the center of the scale for measurement of positive and negative voltage.
	Continuity check The LED lights up when the measuring object is electrically conducting.
	Output terminal Cancels the DC current portion of the voltage mixed with DC and AC to measure the AC portion alone. It is used for the measurement of audio signals.
