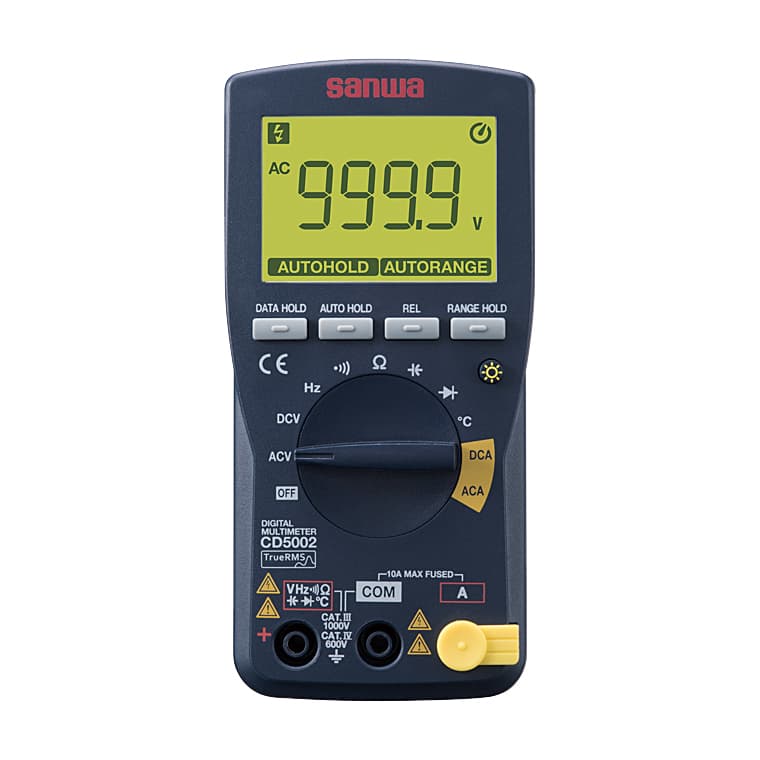

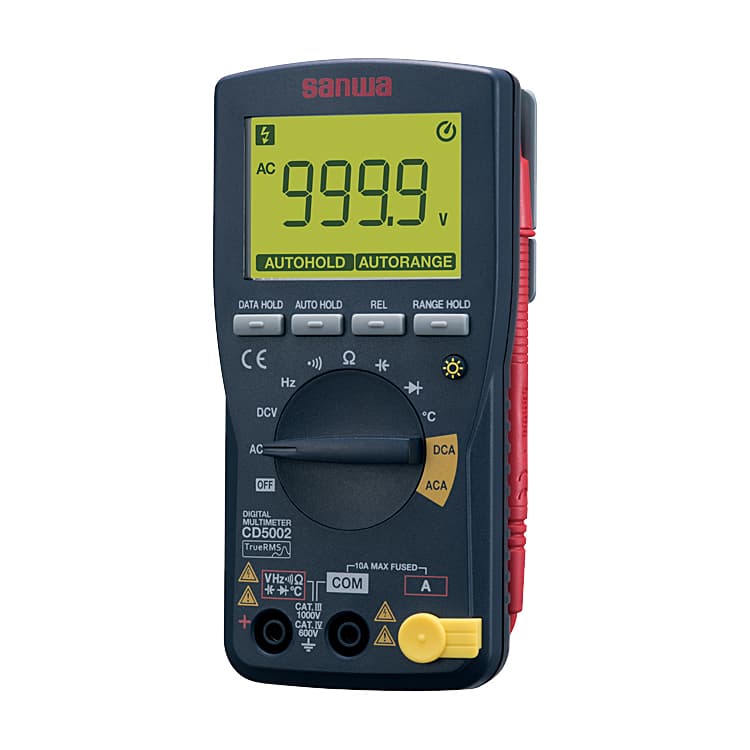

Sanwa 4 Digit / 9999 Count TRMS Digital Multimeter, CD5002

• True RMS
• Temperature measurement (optional)
• Auto Hold function automatically holds the measurement value once it stabilizes.
• Large, easy-to-see display
• Compact, lightweight, easy-to-hold design
• Auto power off (approx. 30min./cancelable)
• Bright backlight

Technical Data:

CD5002	Measuring range	Best accuracy	Resolution	Input impedance
DCV	999.9m / 9.999 / 99.99 / 999.9V	±(0.5%+2)	0.1mV	10M~11MΩ
ACV	999.9m / 9.999 / 99.99 / 999.9V	±(1.0%+5)	0.1mV	10M~11MΩ
DCA	999.9mA / 9.999A	±(1.0%+5)	0.1mA	0.01Ω
ACA	999.9mA / 9.999A	±(1.0%+5)	0.1mA	0.01Ω
Resistance	999.9 / 9.999k / 99.99k / 999.9k / 9.999M / 99.99MΩ	±(0.5%+5)	0.1Ω	-
Capacitance	9.999nF / 99.99nF / 999.9nF / 9.999µF / 99.99µF / 999.9µF / 9.999mF / 99.99mF	±(5%+5)	0.1nF
Frequency	9.999 / 99.99 / 999.9 / 9.999k / 99.99kHz	±(0.1%+5)	0.001Hz
Temperature	−40~800?	±(3.0%+5)	1?
Continuity	Buzzer sounds at 30 to 70Ω or less. Open voltage: approx.0.6V

Functions:

	Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range.
	Frequency Expressed in the unit of Hz (hertz). Commercial frequency of 50Hz/60Hz can be measured.
	Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.
	Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.
	Relative Value A certain measured value is assumed as 0 and measured values after that are expressed by positive or negative values relative the value fixed as 0.
	True RMS (True root-mean-square value) True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values.
	EF function Non-contact AC voltage detection
	Backlight Allows indicator reading in a dark place.
	Auto power off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function.
	Temperature Measurement Temperature can be measured using a probe

Package Content:

• 1x Digital Multimeter
• 1x Test Lead (ATL101)
