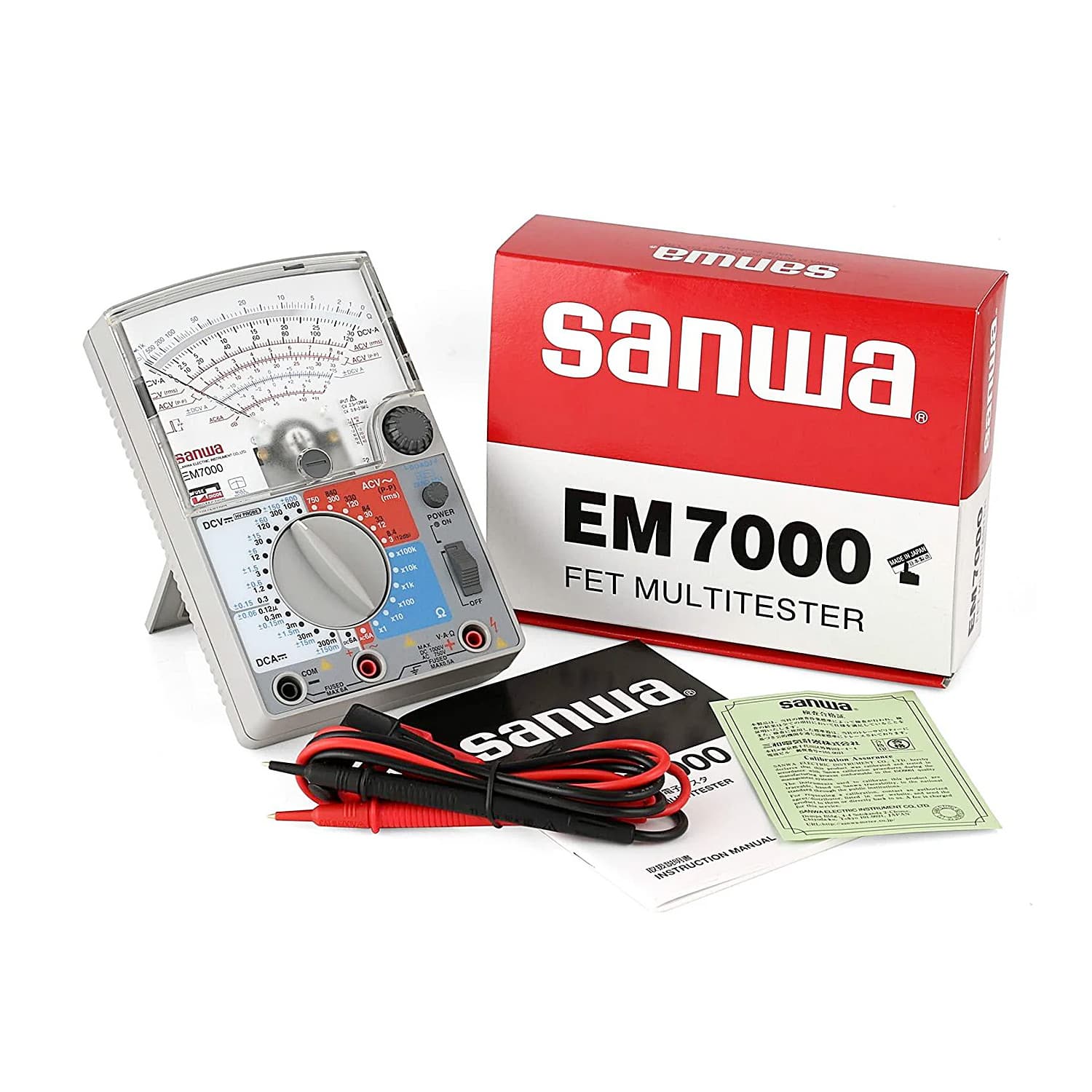

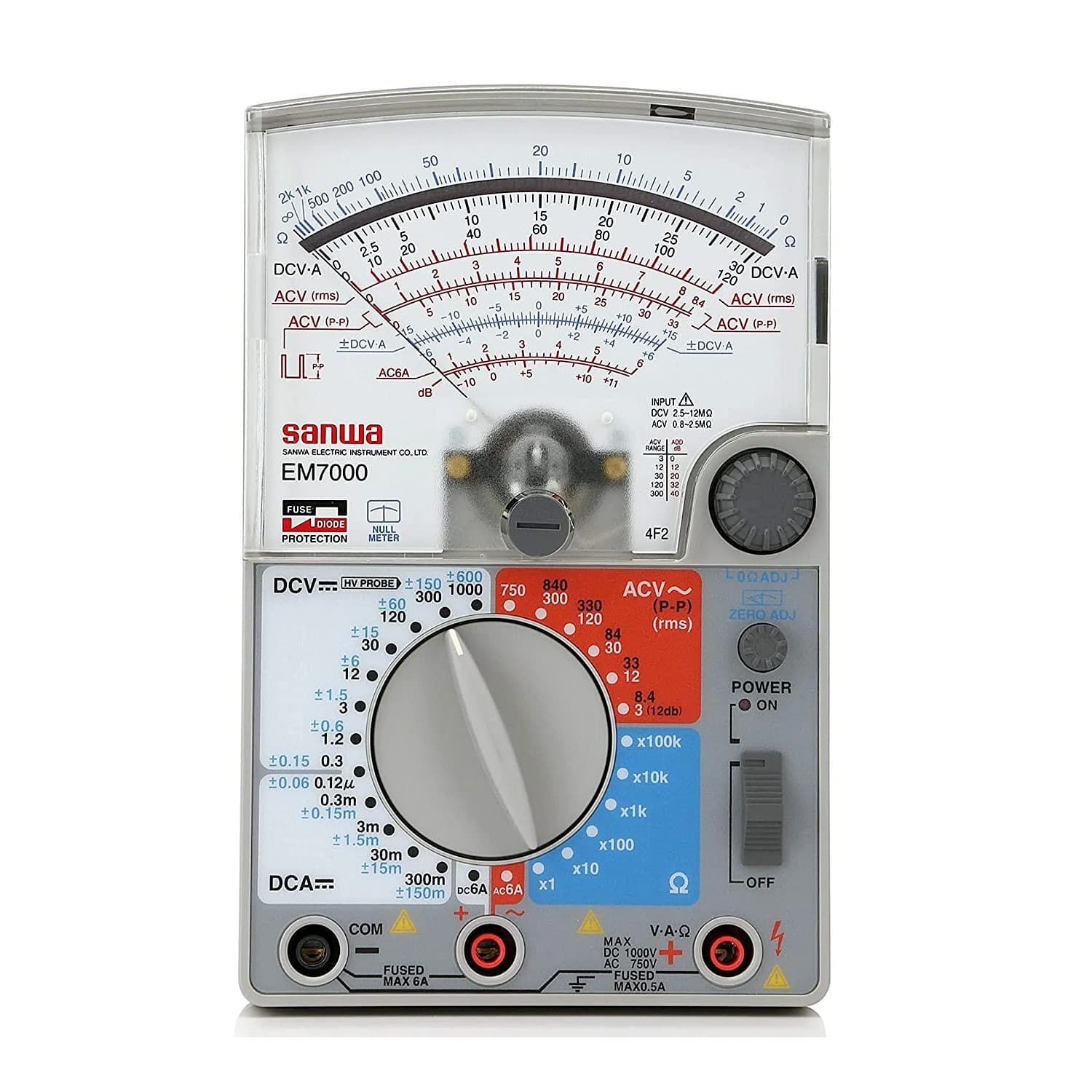

Sanwa 0.3 - 1000V Analog Multimeter, EM7000

The EM7000 is a FET (field-effect transistor) analog multimeter with a zero-deflection scale, which is great for testing low-power circuits. It has an accuracy of ±3.0% of full scale, and can also measure the peak-to-peak values of an input signal (triangular, square-wave) over a 20% duty cycle. The device is also capable of measuring resistances up to 200MΩ and is highly sensitive when measuring lower value capacitances. It is recommended to use the device in an environment with a temperature less than 40 degrees Celsius at a maximum altitude of 2000m indoor, with pollution degrees level II.

Features:

• High Sensitivity FET for Measurement of Lower Capacitance
• Zero center meter (NULL) of DC Voltage and DC Current
• The frequency characteristic of AC low voltage ranges (3V and 12V) is 40Hz~1MHz (sine wave AC)
• The Vp-p of triangular-wave, square-wave over 20% duty cycle voltages of waveforms can also be measured (at 3V range)
• Wide ohm range 0.2Ω~200MΩ
• ±3.0% of full scale

Technical Data:

Function	Measuring Range	Tolerange
DCV	0.3/1.2/3/12/30/120/300/1000V(2.5~12MΩ)	±3% of full scale
±DCV	±0.15/0.6/1.5/6/15/60/150/600V(2.5~12MΩ)	±7% of full scale
AC voltage rms (50/60Hz)	3V (approx.2.5MΩ) / 12V (approx.1.1MΩ) 30V/120/300V (approx.800KΩ) / 750V (approx.10MΩ)	±3% of full scale
ACV P-P	Sine wave	8.4V (approx.2.5MΩ/V) / 33V (approx.1.1MΩ) 84/330/840V (approx.800KΩ)	±5% of full scale
Square wave	8.4V (2.5MΩ)	±6% of full scale
Triangle wave	8.4V (2.5MΩ)	±6% of full scale
DCA	0.12μ/0.3m/3m/30m/300m/6A	±3% of full scale
DCA	±0.06μ/±0.15m/1.5m/15m/150mA	±7% of full scale
ACA	6A	±5% of full scale
Resistance	2k/20k/200k/2M/20M/200MΩ	±3% of arc
Low-frequency output	-10~51dB	±3% of arc

Functions:

Zero Center Meter (NULL) Moves the indicator of the analog tester to the center of the scale for measurement of positive and negative voltage.
