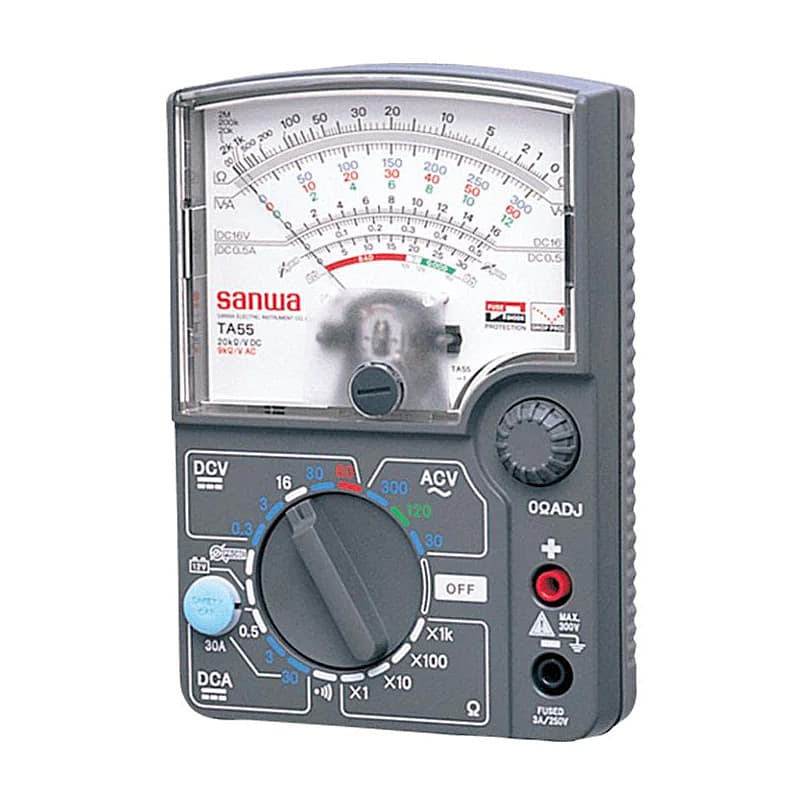

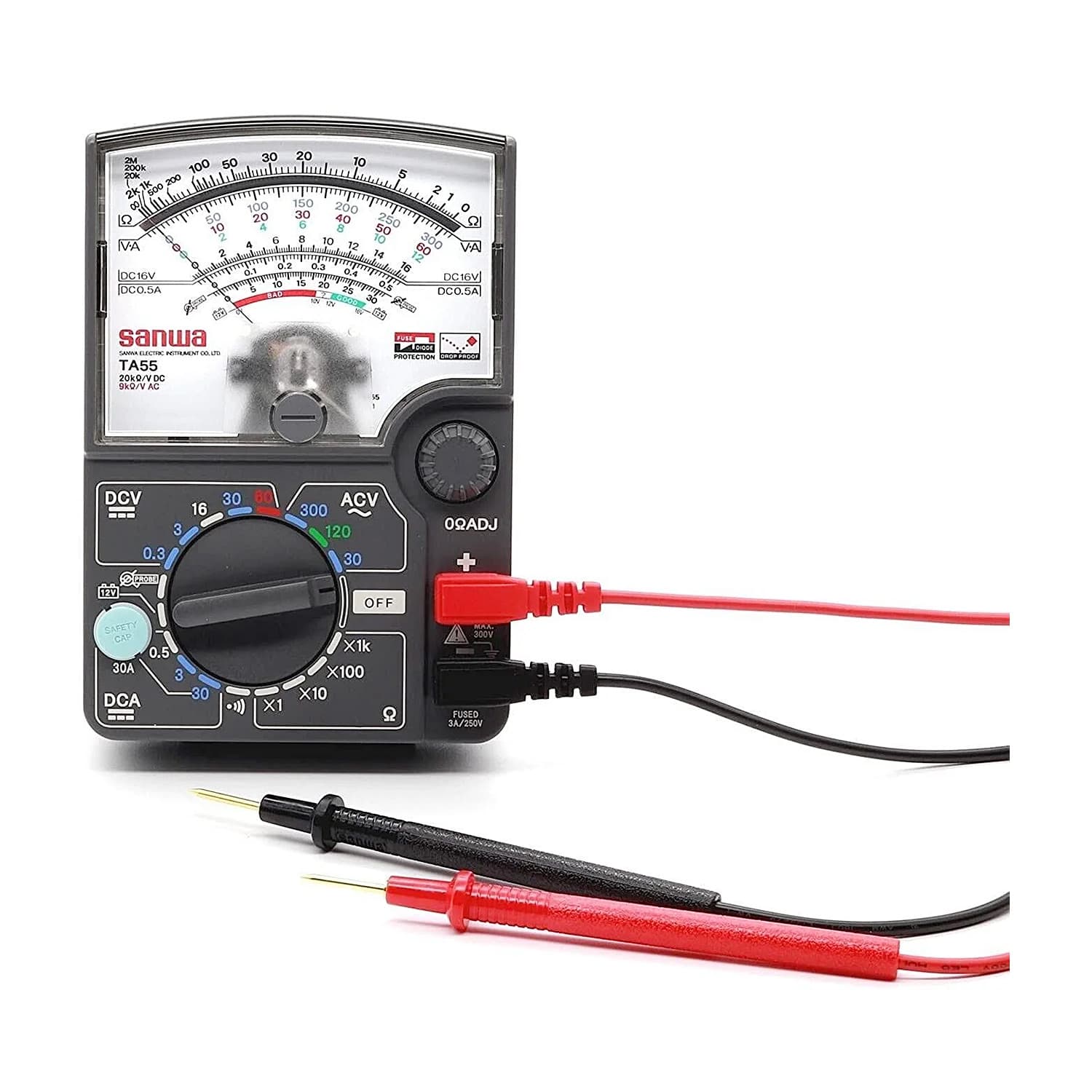

Sanwa 0.3 - 60V DC Voltage Analog Multimeter, TA55

The TA55 multimeter is a taut-band type meter with an easy color matching scale and measurement ranges for DCV, DCA, & ACV measurements. The TA55 can measure DC current of up to 30 Amperes or 300 Amperes DC using an optional CL33DC clamp. The device can measure a maximum of 60 Volts DC and 300 Volts AC making it perfect for measuring home electrical outlets and electric appliances. Measuring resistances of up to 2MΩ and continuity test with a buzzer that sounds at less than approximately 70Ω is also possible with a TA-55 analog multi-tester. The device has a protective casing that provides protection against drop shocks and has a (250V / 3A) breaking capacity (300A) fast-blow fuse for protecting the internal circuity of this instrument.

Features:

• Improved visibility with color matching of scale and range selector switch
• Continuity check function with beeper sound

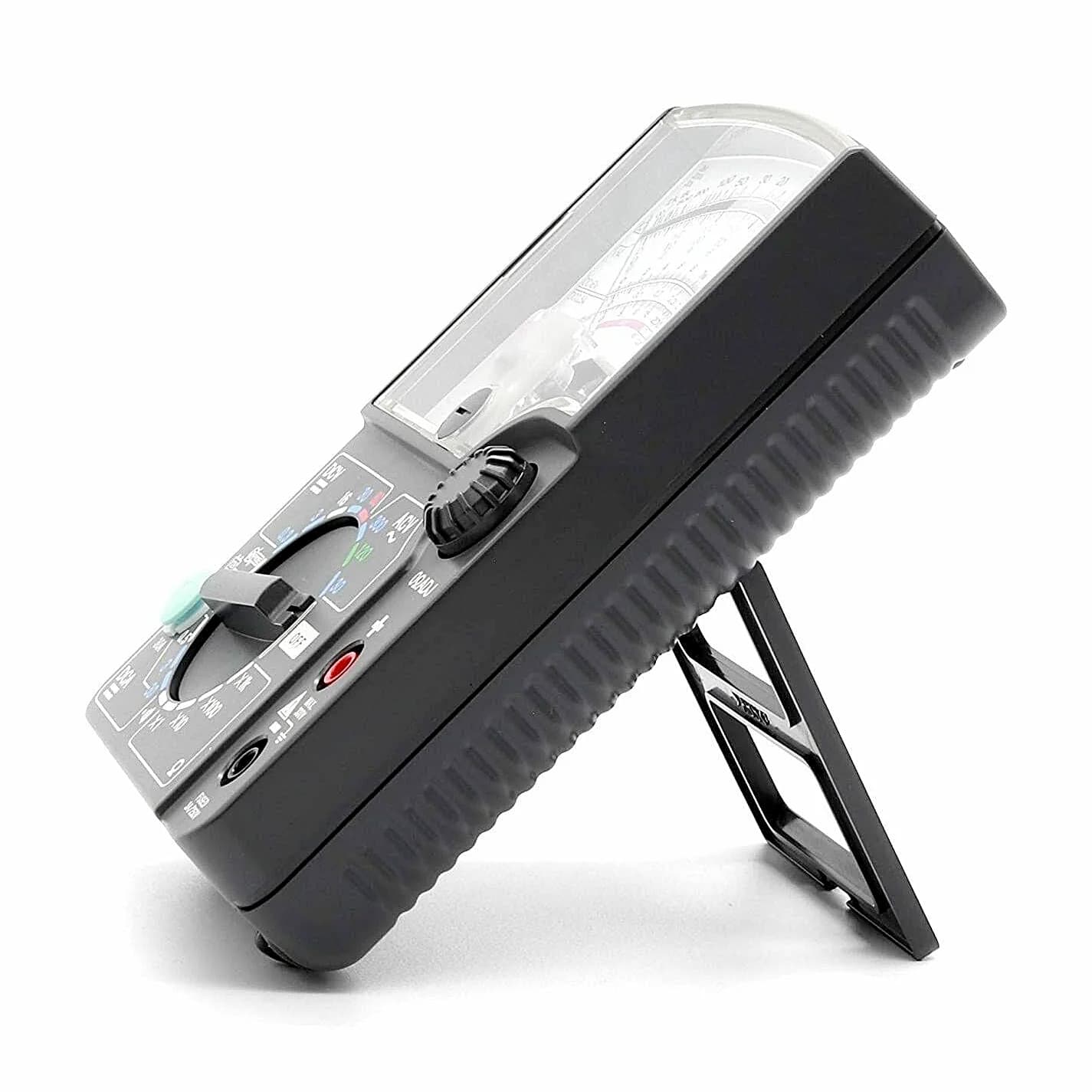

• Stand to make easy to read the scale
• Measurable up to DCA30A(300A using an optional clamp)
• Battery check(12V battery only)

Technical Data:

Function	Measuring Range	Tolerange
DCV	0.3/3/16/30/60V (20kΩ/V)	±3% of full scale
ACV	30/120/300V (9kΩ/V)	±4% of full scale
DCV	0.5/3/30A	±5% of full scale
Resistance	2k/20k/200k/2MΩ	±3% of arc
Continuity	< Approx. 70Ω: Beep sounds. Open circuit voltage: approx.3V
Battery check	For 12V Automobile Battery

Functions:

	Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.
	Battery Check Battery voltage is measured and assessed by running a given current
	Drop Shock Proof The meter element is constructed with a taut band and impact-resistant design
