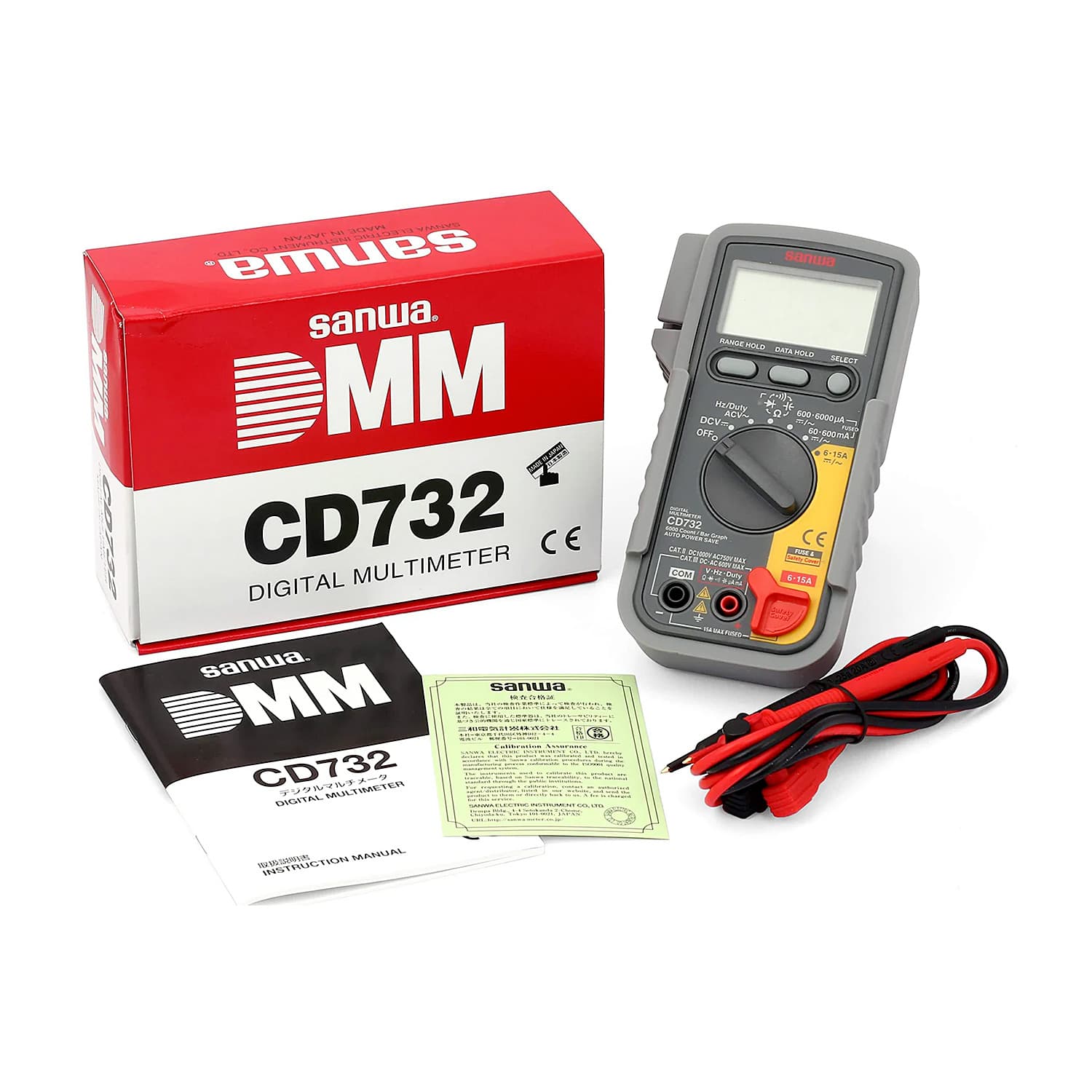

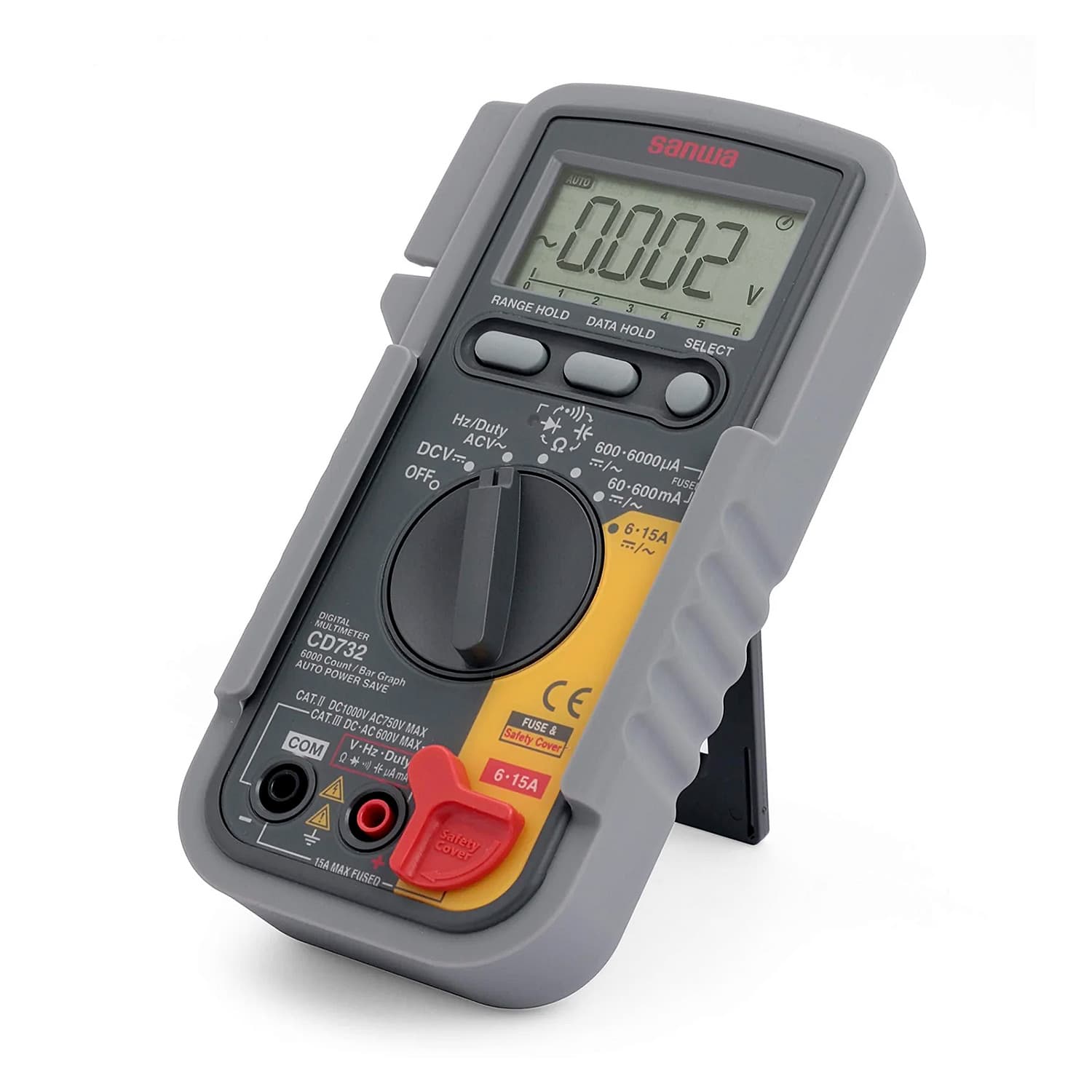

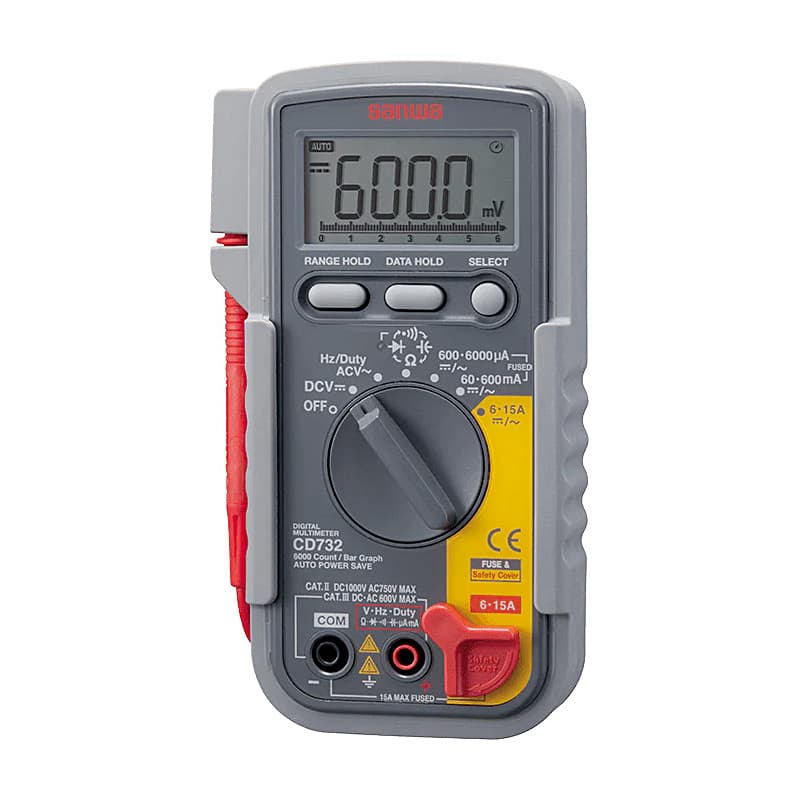

Sanwa 6000 Count Digital Multimeter (High-Speed Bar Graph & Continuity Buzzer with LED), CD732

A portable digital multimeter for measurement of weak, low-capacity electrical circuitry. It's not only a powerful tool for measuring small communications equipment, home appliances, lamp line circuits and batteries, but can also be used in circuit analyses by using the additional functions. This device has a 6000-count full scale (4000 count with capacitance) display, and high-speed bar graphs for measurements except for frequency, duty, capacitance, and diode test. The device is designed for low voltage circuit analysis and testing of home electric appliances. The CD732 has a safe design, compliant with international safety standards including EN61010-1 CAT III DC/AC 600V and CAT II DC 1000V /AC 750V.

This device can measure up to 1000 VDC and 750 VAC. It can also measure a wide range of capacitance from 0.01nF to 3999μF. The device features a buzzer and an LED indicator for continuity tests. It also features Auto-range, Range Hold, and Data Hold function to pause the screen on a certain measurement. The device has an Auto-power save mode that activates after 16 minutes of inactivity (cancellable) to prevent battery from draining. What sets the CD732 apart from the other models in the CD7xx series is its construction. Both the circuit boards and the protective covering are made using fire retardant materials for extra protection. The 6-15A measurement terminal is provided with a safety cover for preventing erroneous insertion.

Features:

• 6000 Count Display
• 0.5% Accuracy
• Wide range of capacitance (0.01nF to 3999μF)
• Frequency measurement
• Range hold, Data hold
• Continuity confirmed by the buzzer and LED
• Auto and Manual range selection
• Auto power off: Turns off after 16 minutes of no operation
• The main unit case and the circuit boards are made of fire-retarding materials
• 6-15A measurement terminal provided with a safety cover for preventing erroneous insertion
• Compliant with EN61010-1 standard

Technical Data:

	Range	Accuracy	Resolution	Input Impedance
DCV	600m / 6 / 60 / 600 / 1000V	±(0.5%+2)	0.1mV	10M~100MΩ
ACV	6 / 60 / 600 / 750V	±(1.2%+5)	0.001V	10M~11MΩ
DCA	600μ / 6000μ / 60m / 600m / 6 / 15A	±(1.5%+3)	0.1µA	-
ACA	600μ / 6000μ / 60m / 600m / 6 / 15A	±(1.8%+5)	0.1µA	-
Resistance	600 / 6k / 60k / 600k / 6M / 60M	±(1.2%+4)	0.1µ	-
Capacitance	40n / 400n / 4μ / 40μ / 400μ / 4000μ	±(5.0%+6)	0.01nF	-
Frequency	9.999 / 99.99 / 999.9/ 9.999k / 99.99k	±(0.5%+3)	0.001Hz	-
Duty Cycle	20 - 80%	+(0.5%+5)	-	-
Continuity	Buzzer sounds and LED lights up at between 10-60V Open voltage: approx. 0.63V
Diode test	Open voltage: approx.2.7V

Functions:

	Continuity Buzzer The buzzer sounds when the measuring object is electrically conducting.
	Range Hold The range is fixed in the measurement of varying voltage and current which is difficult to read in the auto range.
	Capacitor Capacitor capacity (electrostatic capacity) is measured in F (farad), μF, etc.
	Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.
	Continuity LED The LED lights up when the measuring object is electrically conducting.
	Auto Power Save The display disappears to bring the device into the power-save state when a certain time has passed after power-up. Some models have a function to cancel this function.
	Duty Cycle The duty cycle of repeating waveform is indicated on a percentage basis (%). It can be used for the analysis of control signals.
